Magnitude Lighting has been transforming LED lighting with advanced LED drivers since 2008. With their breakthrough technologies, they are able to yield the highest efficiency ratings in the industry. Headquartered in Orange County, Magnitude Lighting have been able to maintain advanced manufacturing facilities and customer support facilities in North America in order to deliver the highest product quality, fastest fulfillment, and superior customer support. We recommend you try out Magnitude Lighting LED drivers today - you will not be disappointed.
Magnitude Lighting brings you their E-Series voltage dimmable Class 2 LED Drivers. These LED Drivers are class 2 rated and is able to operate at low temperatures with an efficiency of 90% and higher. This driver is dimmable and encased in a low profile aluminum enclosure that includes knock-outs, to enable easy installation, making it the perfect choice for under cabinet lights, tape lights, and various LED fixtures. These drivers have a wide range of wattages and current outputs to meet numerous applications. The Magnitude magnetic LED drivers are compact in size, allowing them to fit into your application.

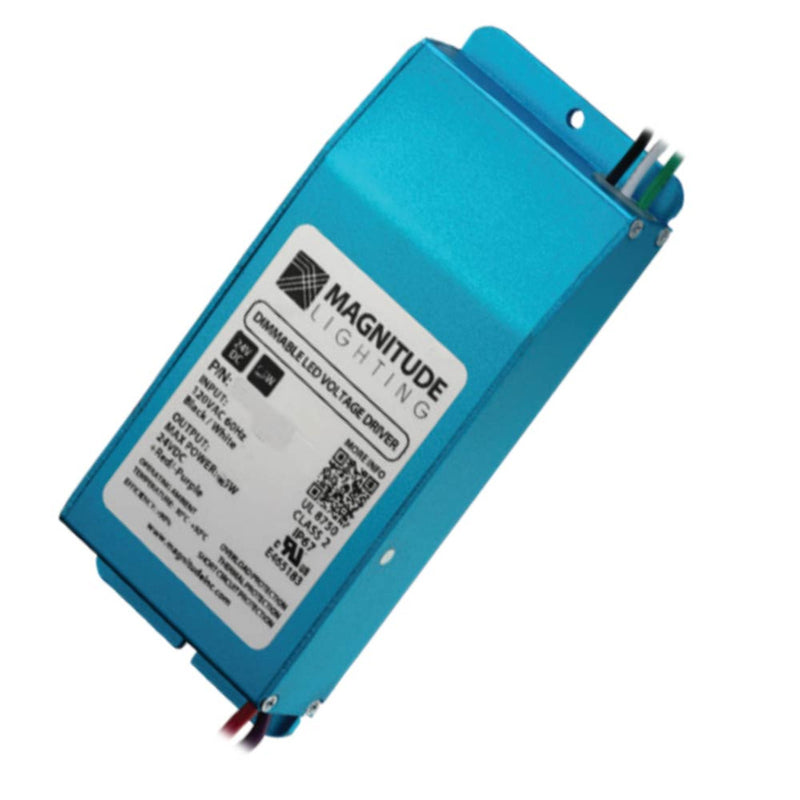

This item is the Magnitude Lighting low voltage power supply part number E75R24DC. The input voltage is 120 volt and is includes Auto Reset, over current, and short circuit protection. These along with the super compact aluminum case should insure a long life for this LED driver. The output current is 3.3A output. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with any standard MLV/incandescent TRIAC - (Leading edge) dimmer switch. It is IP67 rated and UL Listed, all while being FCC 15 Part 2.
| Manufacturer | Magnitude Lighting |
| MPN | E75R24DC |
| SKU | E75R24DC |
| UPC | 857814006557 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 3.3A (3300mA) |
| Input Current | 0.72A |
| Output Wattage | 75 Watt |
| Input Voltage | 120VAC |
| Output Voltage | 24VDC |
| Frequency | 50/60Hz |
| Power Factor | >.95 |
| Efficiency | 90% |
| Dimming | Phase Dimming |
| Operating Temperature | -30°C to 40°C |
| Dimensions | 4.92" L x 1.97" W x 0.77" H |
| Certifications | Class 2, RoHS Compliant, FCC |
| Environment | Wet Location |
| Warranty | 5 Year |
