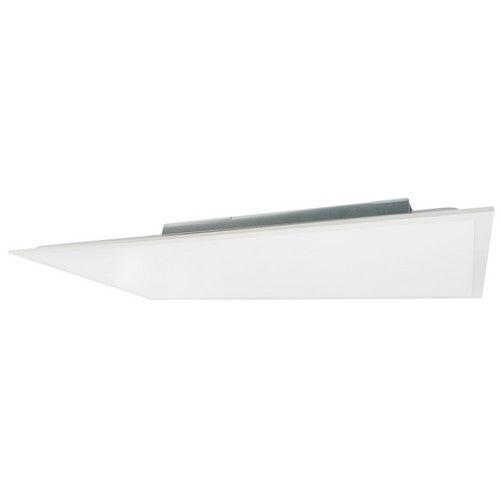

Name: 20/30/35 Watt 2x2 Selectable LED Back-Lit Flat Panel 3500/4000/5000K
Brand: Morris Products
SKU: 71164D
Price: 44.35 USD
Availability: InStock

Morris Products 20/30/35 Watt 2x2 Selectable LED Back-Lit Flat Panel 3500/4000/5000K Selectable

DLC Listed

Price

Color Temp

Selectable

Quantity

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":44386886484212,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"71164D","requires_shipping":true,"taxable":true,"featured_image":{"id":40505375981812,"product_id":8295257145588,"position":1,"created_at":"2023-12-20T10:35:48-05:00","updated_at":"2023-12-20T10:35:49-05:00","alt":"Morris Products 20\/30\/35 Watt 2x2 Selectable LED Back-Lit Flat Panel 3500\/4000\/5000K Selectable  ","width":500,"height":500,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/71164D_l.jpg?v=1703086549","variant_ids":[44386886484212]},"available":true,"name":"20\/30\/35 Watt 2x2 Selectable LED Back-Lit Flat Panel 3500\/4000\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":4435,"weight":4536,"compare_at_price":null,"inventory_management":"shopify","barcode":"601986711647","featured_media":{"alt":"Morris Products 20\/30\/35 Watt 2x2 Selectable LED Back-Lit Flat Panel 3500\/4000\/5000K Selectable  ","id":33120281428212,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/71164D_l.jpg?v=1703086549"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

The 20/30/35 Watt 2x2 LED Backlit Flat Panel Lighting Fixture is an ideal lighting fixture for new construction or replacing existing troffers in commercial and institutional settings. Featuring a polystyrene lens, steel backplate, and aluminum frame, it is DLC listed and IP20 rated for reliability and safety. With an estimated 50,000 hours of life expectancy, this Gen 4 selectable backlit flat panel is a cost-effective lighting solution.

This Morris 2x2 selectable backlit flat panel consumes 20/30/35 watts of 120-277 volt energy. They generate 2,700-4,520 lumens based on your choice of either 3500K bright white, 4000K cool white or 5000K daylight. This DLC listed selectable flat panel carries a 5 year warranty.

Specifications

Manufacturer	Morris Products
MPN	71164D
SKU	71164D
UPC	601986711647
Lighting Technology	LED
Voltage	Universal 120-277V
Frequency	60Hz
Dimmable	Yes, 0-10V
Beam Angle	120 Degrees
Rated Life	50,000 Hours L70
CRI (Color Rendering Index)	83 CRI
Power Factor	0.9
Housing	Aluminum
Lens	Polystyrene Lens
Operating Temperature	-13°F to 104° F
Dimensions	24" x 24" x 1.48"
Certifications	DLC Listed, ETL Listed
DLC Product ID	S-B0KAS6
Environment	Dry Location
Warranty	5 Year Standard

Wattage	20 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	2,700 Lumens	2,820 Lumens	2,720 Lumens
Efficiency (Lumens Per Watt)	135 LPW	141 LPW	136 LPW

Wattage	30 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	3,840 Lumens	4,020 Lumens	3,870 Lumens
Efficiency (Lumens Per Watt)	128 LPW	134 LPW	129 LPW

Wattage	35 Watts
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	4,313 Lumens	4,520 Lumens	4,354 Lumens
Efficiency (Lumens Per Watt)	123 LPW	129 LPW	124 LPW

Documents

Morris Selectable LED Back-Lit Flat Panel Specification Sheet

Morris Selectable LED Back-Lit Flat Panel DLC Product Listing
