45/60/70 Watt Selectable 120-277V LED Integrated Microwave Sensor Canopy Light Fixture 3000/4000/5000K

Satco SKU: 65-983
  • IP65, DLC Listed
/
Color Temp
Finish Color
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

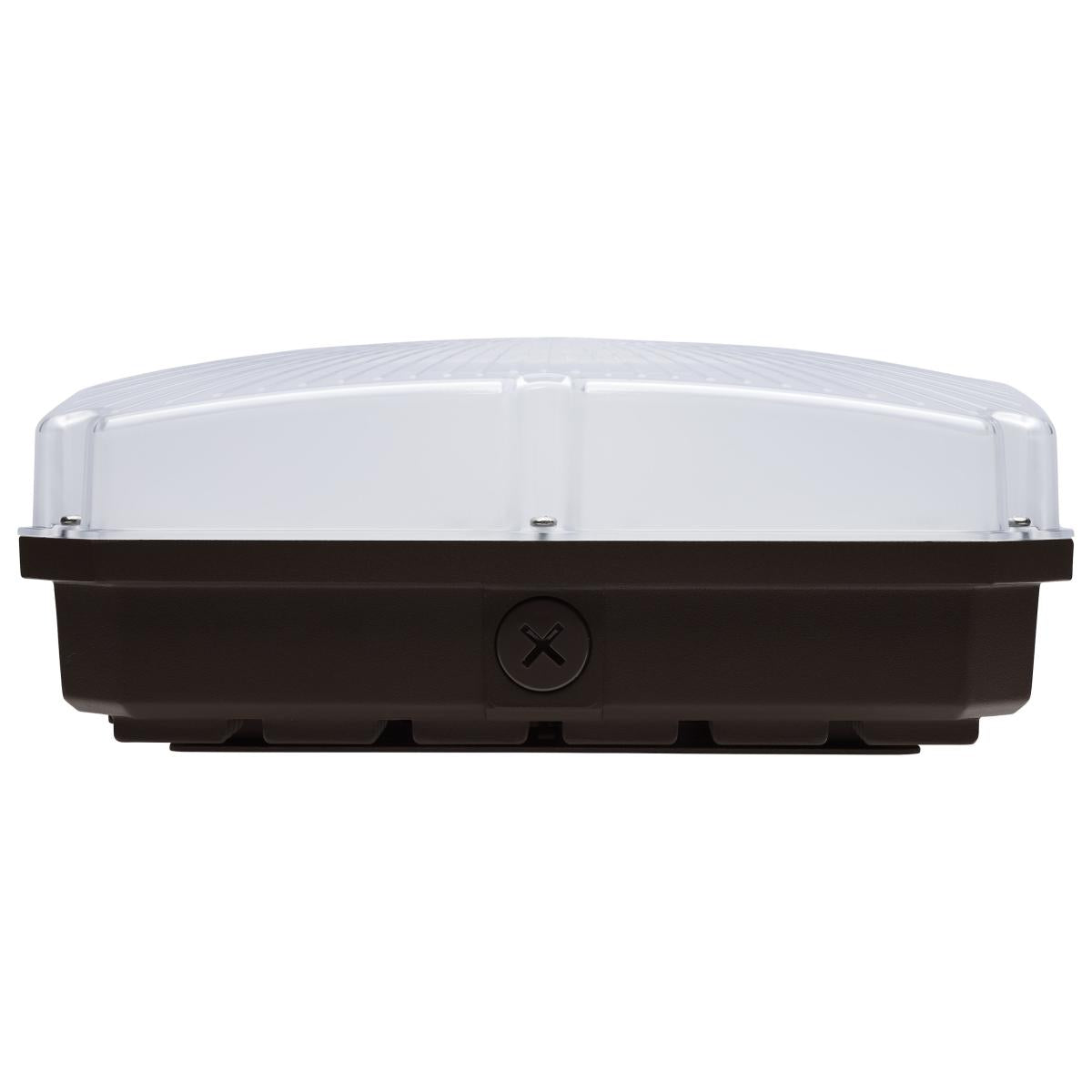

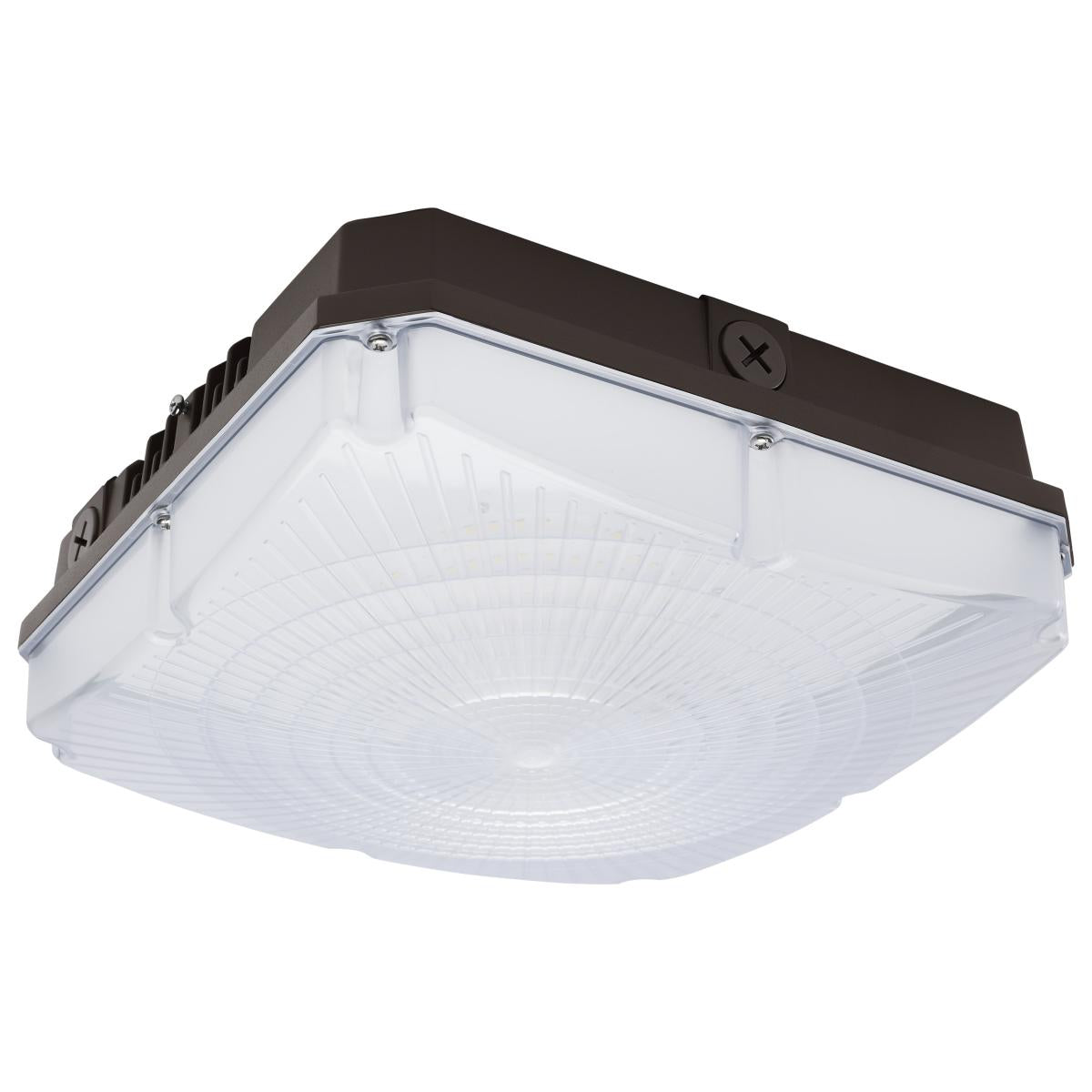

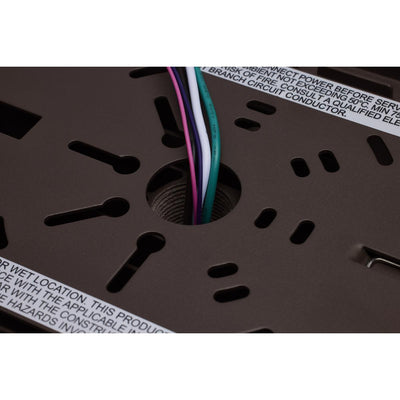

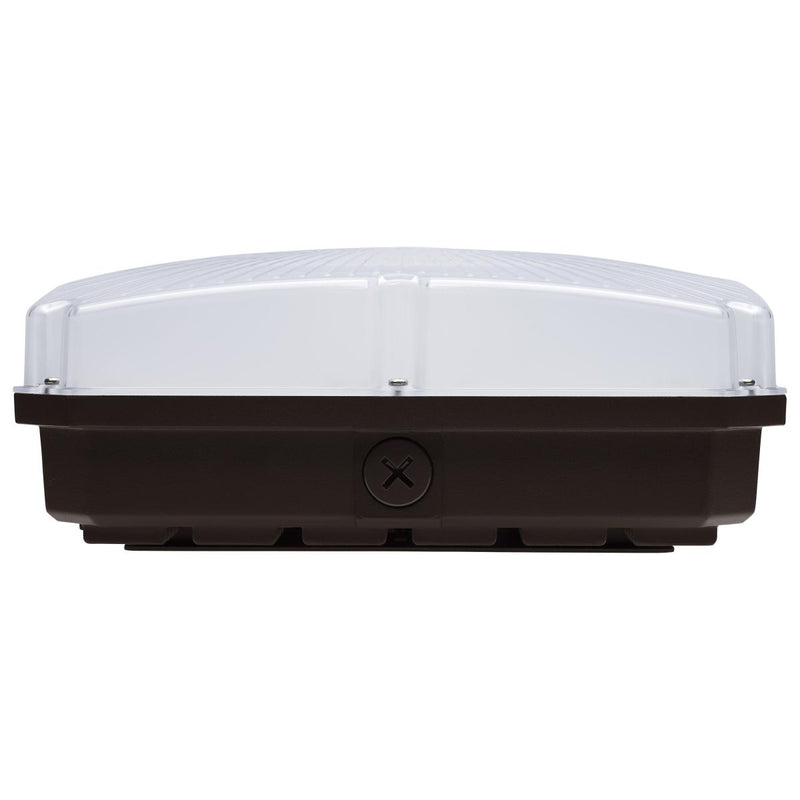

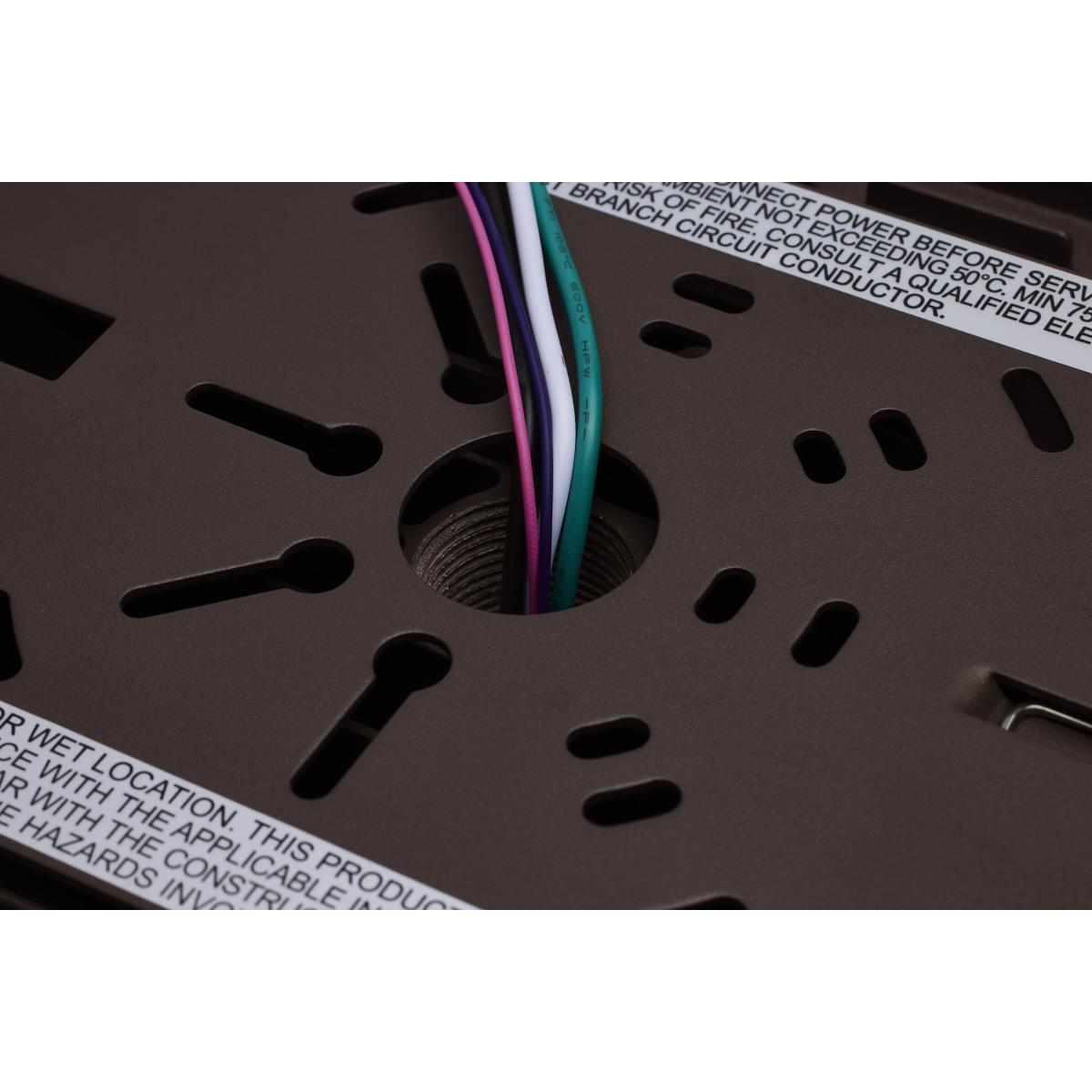

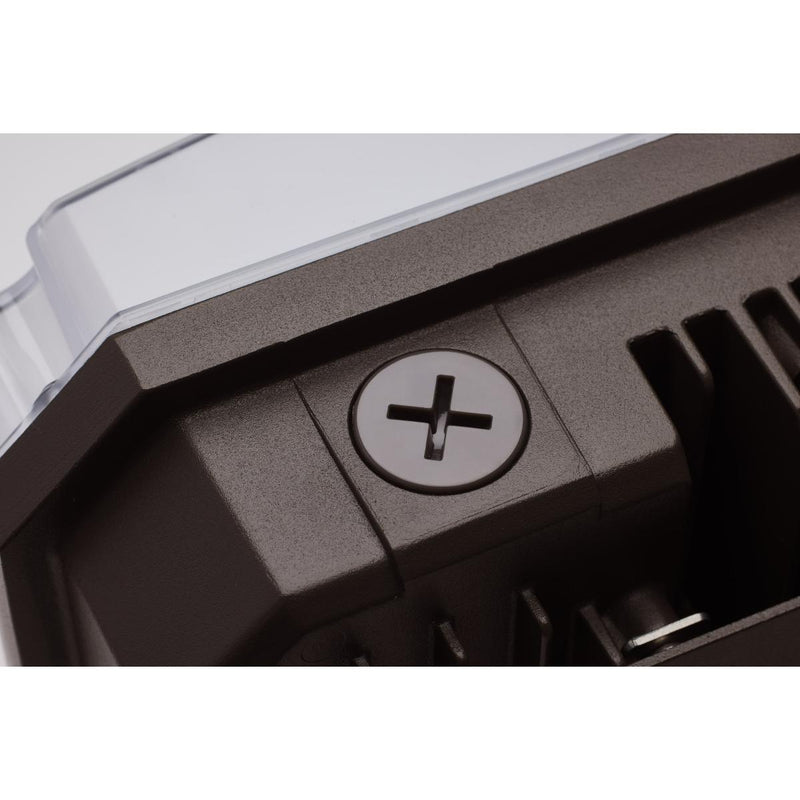

Satco's Field Selectable square canopy fixtures are an ideal choice for multiple applications. These fixtures offer the flexibility to choose from three wattage and three CCT options during installation, with some models featuring an integrated microwave sensor for motion-activated energy. With a choice of surface mounting using the hinged universal bracket or 3/4" pendant mounting, installation of these luminaries is a breeze. The two side knockouts allow for wiring access to be fast and efficient. The sleek bronze die-cast aluminum housing, the IK08 impact-rated vandal-resistant polycarbonate lens, and the IP65 wet location rating, ensures reliable illumination even in the most adverse weather conditions.

Satco's selectable LED integrated microwave sensor canopy light fixture is DLC Listed and consumes just 45/60/70 watts of the universal 120-277 voltage. These selectable watts produce between 5,625-9,450 lumens, dependent on the color temperature selected. These fixtures are suitable for wet locations (IP65 Rated), have a 50,000 hour rated life, and feature a 5 year limited warranty.

Manufacturer Satco
MPN 65-983
SKU 65-983
UPC 045923403705
Lighting Technology LED
Wattage 45/60/70 Watts
Voltage 120-277V
Input Current 0.38-0.16/0.50-0.22/0.58-0.25A
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 5,625-9,450 Lumens
Efficiency (Lumens Per Watt) Up to 135 LPW
Dimmable Yes, 0-10V Dimmable Down to 10%
Beam Angle 150 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor 0.9
THD (Total Harmonic Distortion) 10.20%
Surge Protection Rating 4kV
Finish Color Bronze
Housing Die Cast Aluminum

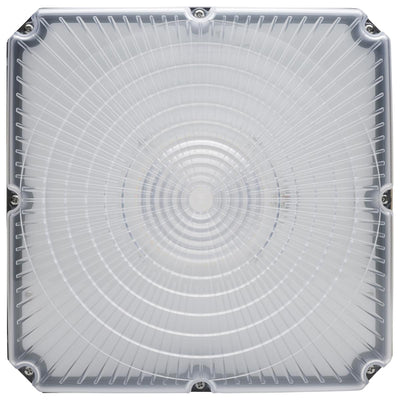

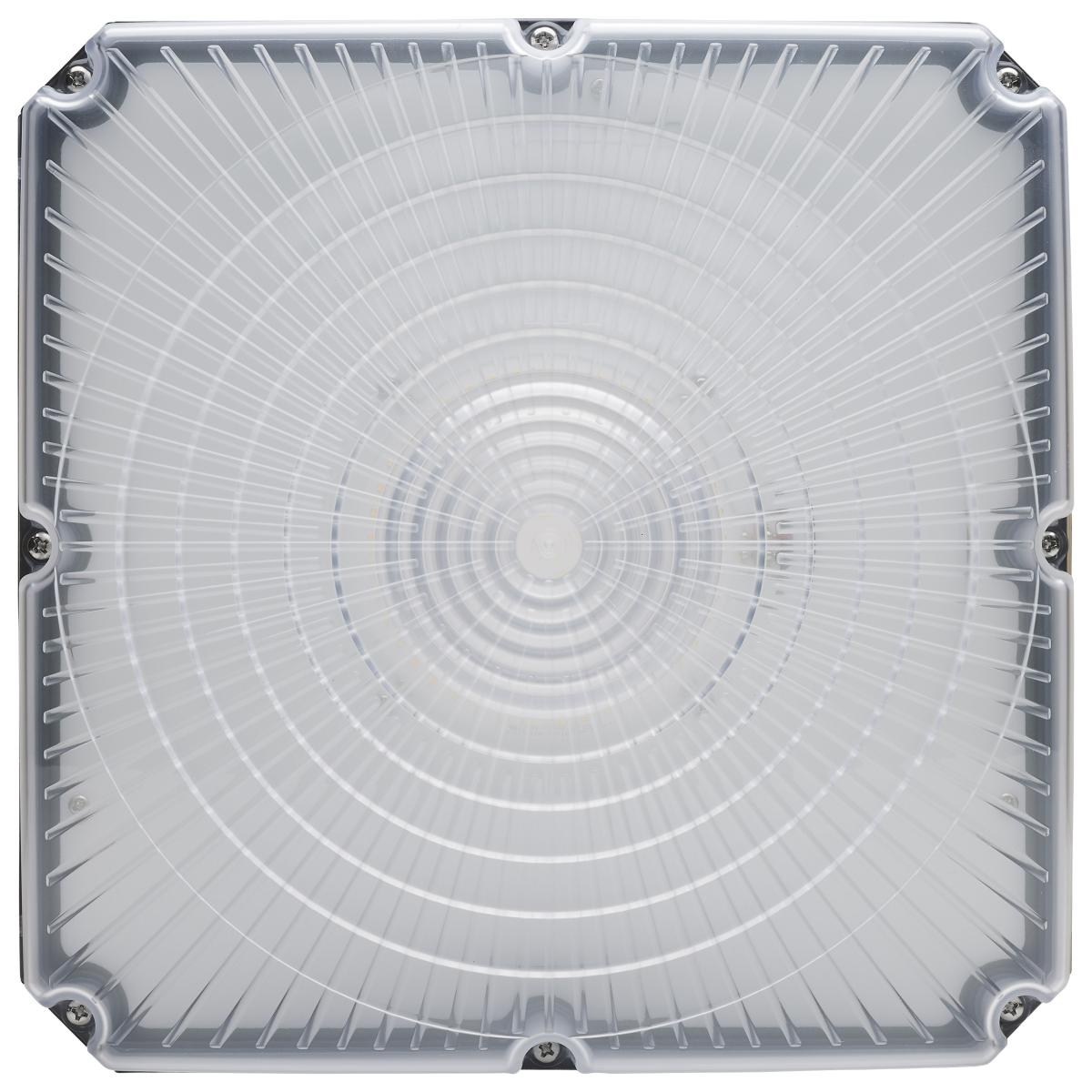

Lens IK08 Impact Resistant Polycarbonate

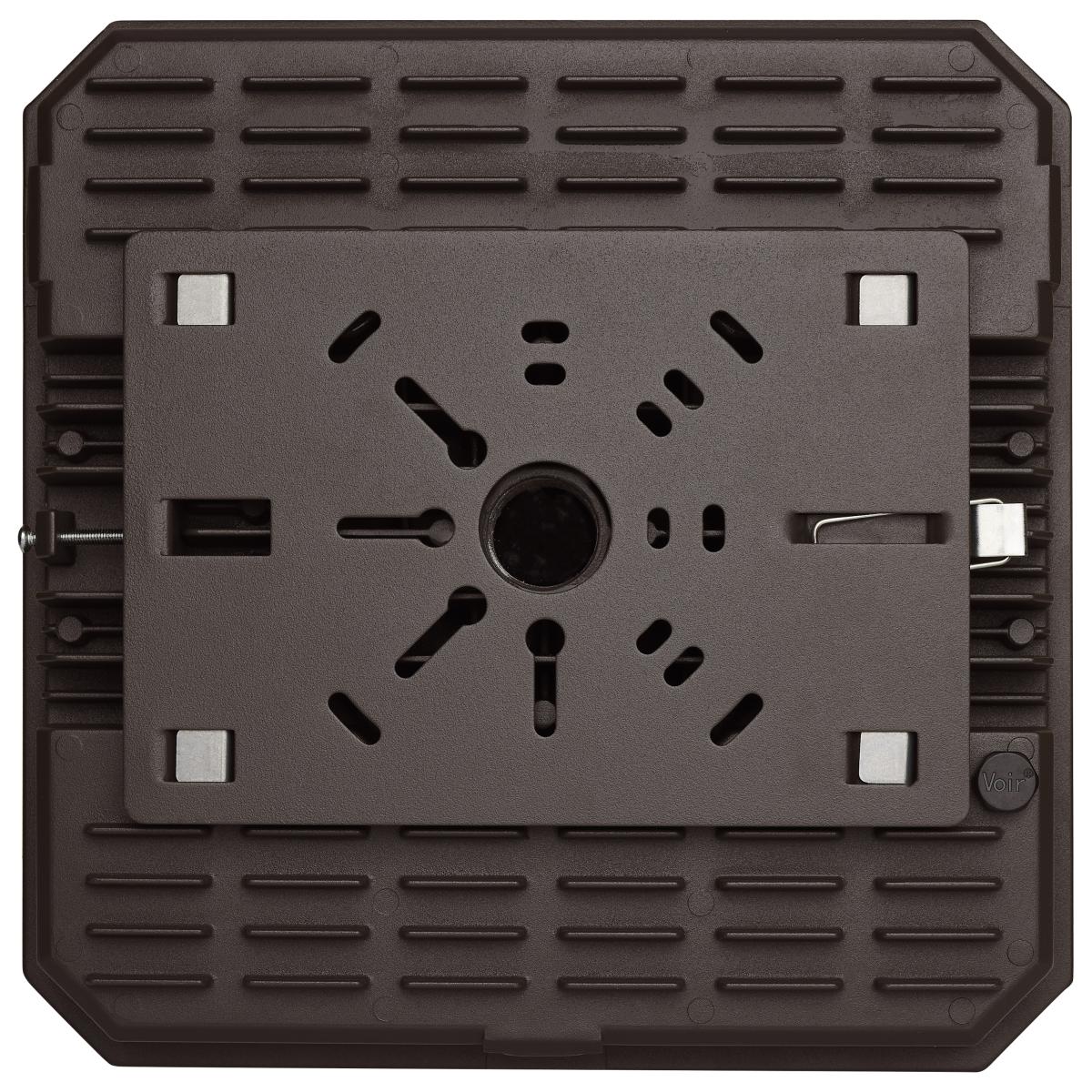

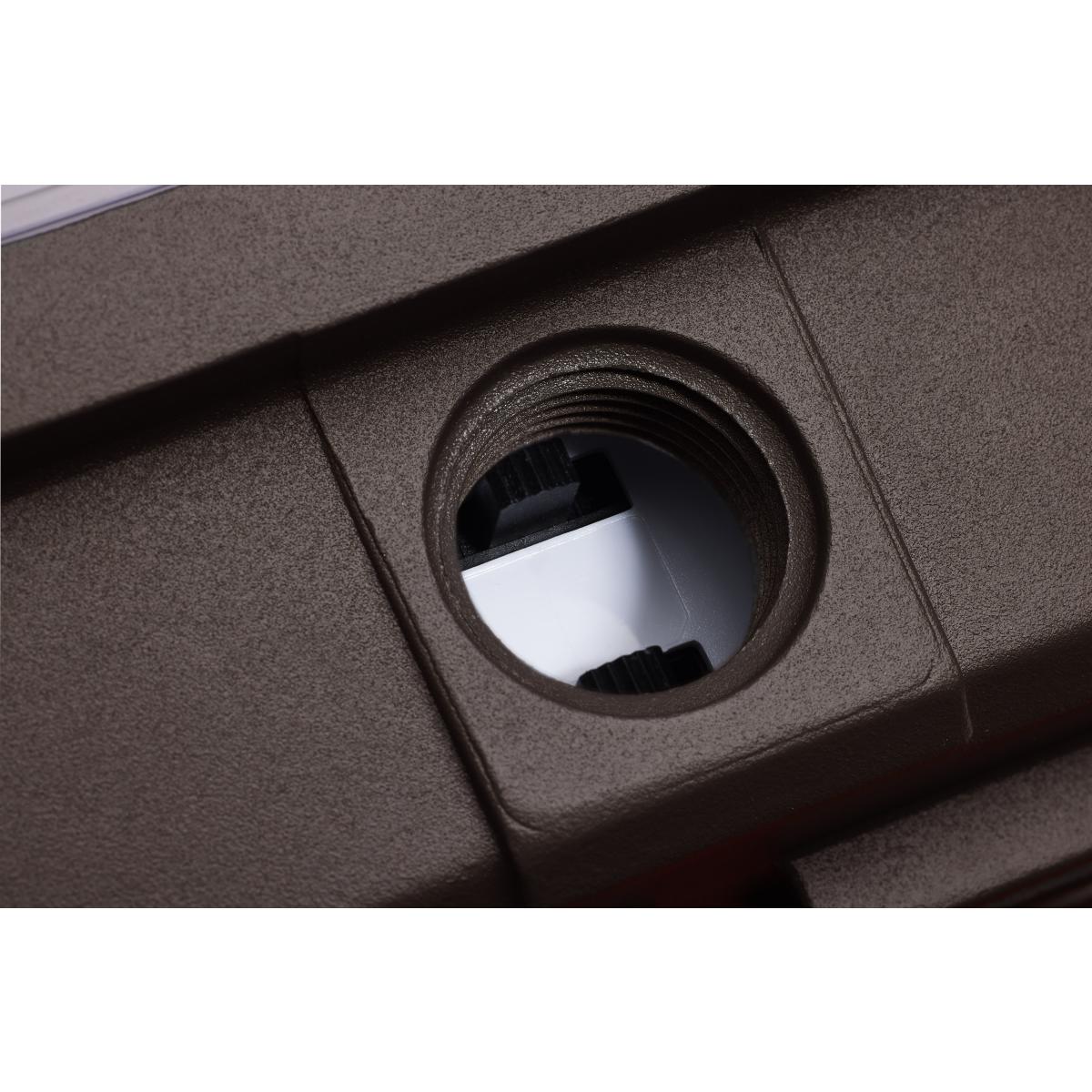

Mounting Surface or 3/4" Pendant
Equivalent 500 Watts
Operating Temperature -30°C (-22F) to 45°C (113°F)
Dimensions 10.06" L x 10.06" W x 4.19" H
Certifications IP65 Rated, DLC Listed, FCC Compliant
DLC Product ID S-TVN5KW
Environment Wet Location
Warranty 5 Year Limited



Satco Selectable LED Canopy Light Fixture Specification Sheet

Satco Selectable LED Canopy Light Fixture DLC Product Listing
