Name: 4 Foot 17 Watt Emergency LED T8 Battery Backup Tube Light 3500/4000/5000K
Brand: Satco
SKU: S11731
Price: 67.83 USD
Availability: InStock

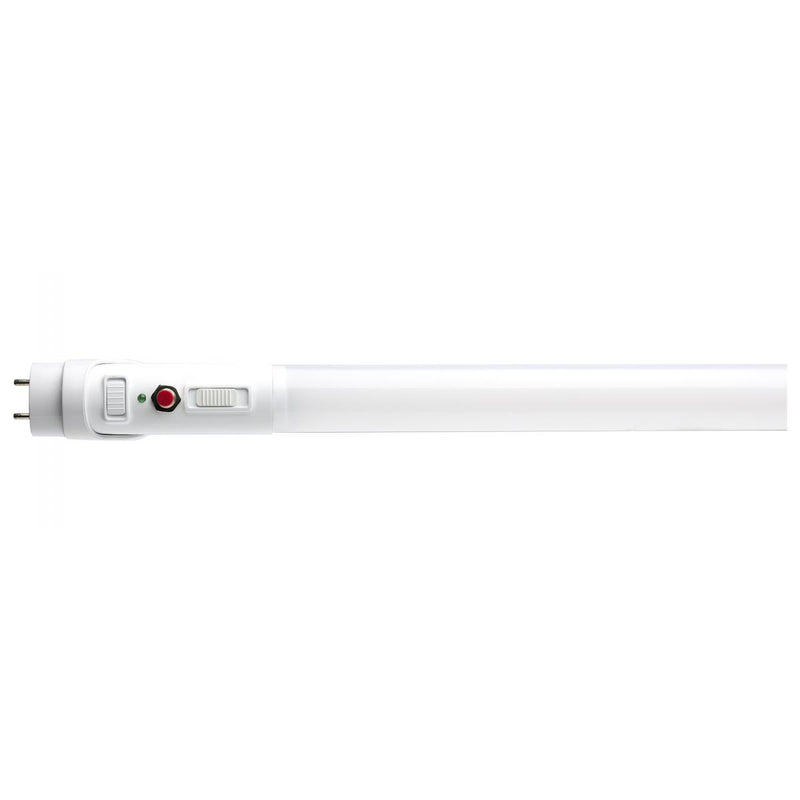

Satco 4 Foot 17 Watt Emergency LED T8 Battery Backup Tube Light 3500/4000/5000K Selectable

DLC Listed, NSF Listed

Price

Color Temp

Selectable

Quantity

**BALLAST MUST BE BYPASSED IN ORDER TO USE**

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":44070472057076,"title":"Selectable","option1":"Selectable","option2":null,"option3":null,"sku":"S11731","requires_shipping":true,"taxable":true,"featured_image":{"id":39841458979060,"product_id":8173407207668,"position":1,"created_at":"2023-07-28T10:07:20-04:00","updated_at":"2023-07-28T10:07:21-04:00","alt":"Satco 4 Foot 17 Watt Emergency LED T8 Battery Backup Tube Light 3500\/4000\/5000K Selectable  ","width":1200,"height":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/S11731.jpg?v=1690553241","variant_ids":[44070472057076]},"available":true,"name":"4 Foot 17 Watt Emergency LED T8 Battery Backup Tube Light 3500\/4000\/5000K - Selectable","public_title":"Selectable","options":["Selectable"],"price":6783,"weight":907,"compare_at_price":null,"inventory_management":"shopify","barcode":"045923117312","featured_media":{"alt":"Satco 4 Foot 17 Watt Emergency LED T8 Battery Backup Tube Light 3500\/4000\/5000K Selectable  ","id":32441279152372,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/files\/S11731.jpg?v=1690553241"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

A commercial building's emergency and exit light requirements mandate active lights in egress exit routes. We offer a wide range of hard wired and/or battery backup emergency lighting that includes LED emergency lights, LED emergency exit signs, LED emergency light combos, LED emergency tube lights and LED emergency retrofit kits, drivers and inverters to meet your needs.

Emergency light fixtures automatically switch on when power goes out to illuminate pathways toward egress exits. The Satco 17T8/LED/48-CCT/EM/BP (S11731) Battery Backup T8 Tube consumes ust 17 watts of 120v or 277 volt energy, producing a selectable 3500K Bright White, 4000K Cool White or 5000K Daylight color temperatures. The T8 emergency tubes also provide up to 90 minutes of illumination in the event of a power failure. These 4 foot LED fluorescent retrofits have a G13 medium bi-pin base which easily integrates energy saving LED technology into your standard recessed fluorescent troffers or industrial fluorescent lighting format.

Specifications

Manufacturer	Satco
MPN	17T8/LED/48-CCT/EM/BP
SKU	S11731
UPC	045923117312
Lighting Technology	LED
Wattage	17 Watts
Emergency Wattage	5 Watts
Voltage	120-277V
Frequency	60Hz
Color Temperature (Kelvin)	3500K Bright White	4000K Cool White	5000K Daylight
Lumens	2,100 Lumens	2,300 Lumens	2,200 Lumens
Efficiency (Lumens Per Watt)	123 LPW	135 LPW	129 LPW
Emergency Lumens	700 Lumens
Ballast Operation	Type B Ballast Bypass
Wiring Method	Double Ended Wiring
Bulb Shape	T8
Base	G13 Medium Bi-Pin
Dimmable	Yes; Phase-Cut
Beam Angle	140 Degrees
Rated Life	50,000 Hours
CRI (Color Rendering Index)	83 CRI
Power Factor	0.9
THD (Total Harmonic Distortion)	<25%
Material	Aluminum
Lens	Polycarbonate
Fluorescent Equivalent	32 Watts
Emergency Operation	90 Minutes
Charging Time	24 Hours
Operating Temperature	-20°C (-4°F) to 45°C (113°F)
Dimensions	47.78" MOL x 1.13" MOD
Nominal Length	48 Inches
Certifications	Enclosed Fixture Rated, DLC Listed, NSF Listed
DLC Product ID	S-MASCZT
Environment	Damp Location
Warranty	5 Year Limited

Documents

Satco 4 Foot Emergency LED T8 Battery Backup Tube Light Specification Sheet

Satco 4 Foot Emergency LED T8 Battery Backup Tube Light Installation Instructions

Satco 4 Foot Emergency LED T8 Battery Backup Tube Light DLC Product Listing

Request A Quote

Green Electrical Supply is here to help you maximize your green^® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
