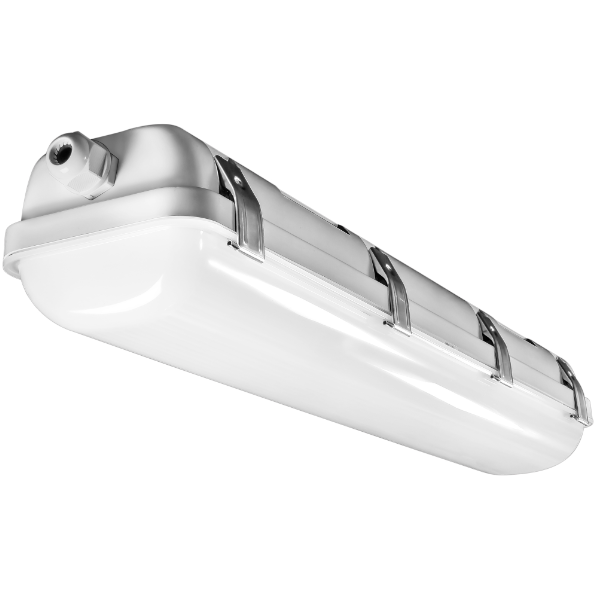

2 Foot 20/25/30 Watt LED Linear Vaportight Fixture 3500/4000/5000K

Halco Lighting Technologies SKU: 28090
Halco Lighting Technologies 2 Foot 20/25/30 Watt LED Linear Vaportight Fixture 3500/4000/5000K Selectable

2 Foot 20/25/30 Watt LED Linear Vaportight Fixture 3500/4000/5000K

Halco Lighting Technologies SKU: 28090
  • IP66, DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The ProLED Select Linear Vaportight provides on target lighting in the most severe conditions. This innovative product features both Wattage and CCT Selectability and is available in 2, 4 and 8-foot lengths. The rugged durability of the ProLED Select LVPT coupled with Wattage and CCT Selectability makes this the most versatile Linear Vaportight fixture on the market.

The Halco Lighting LVPT-2-WS-CS-U (28090) is a 24 inch (2 foot) long fixture and only 3.7 inches deep, ideal for any application. This Halco 2 foot vapor tight fixture consumes a selectable 20/25/30 watts of 120-277 volt energy. They generate between 2,780-4,290 lumens (136-146 lumens per watt), have a rated lumen maintenance of 75,000 hours based on L70 lumen depreciation, a selectable color temperature of 3500K Bright White, 4000K Cool White or 5000K Daylight and a CRI of 80. These DLC listed LED vapor tight lights have a 0-10V dimmable configuration. All Halco LED vapor tight fixtures carry a 5 Year Limited Warranty.

Manufacturer Halco Lighting Technologies
MPN LVPT-2-WS-CS-U
SKU 28090
UPC 807154280902
Lighting Technology LED
Voltage 120-277V
Dimmable Yes 0-10V
Rated Life 75,000 Hours
CRI (Color Rendering Index) >80 CRI
Power Factor >0.9
Housing Polycarbonate
Lens Diffused Frosted Polycarbonate
Operating Temperature -22°F to 104°F
Dimensions 23.6" L x 5" W x 3.7" H
Certifications DLC Listed, cULus, FCC, NSF/ANSI 2 Listed
DLC Product ID PLI163V7LBNX
Environment IP66 Wet Location
Warranty 5 Year Warranty



Wattage 20 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,780 Lumens 2,920 Lumens 2,820 Lumens
Efficiency (Lumens Per Watt) 139 lm/W 146 lm/W 141 lm/W



Wattage 25 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,423 Lumens 3,600 Lumens 3,475 Lumens
Efficiency (Lumens Per Watt) 137 lm/W 144 lm/W 139 lm/W



Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,083 Lumens 4,290 Lumens 4,140 Lumens
Efficiency (Lumens Per Watt) 136 lm/W 143 lm/W 138 lm/W

Halco Linear LED Vaportight Fixture Specification Sheet

Halco Linear LED Vaportight Fixture Installation Instructions

Halco Linear LED Vaportight Fixture DLC Product Listing

 
