Fluorescent F54T5 Cross Reference:
GE F54W/T5/8(XX)/ECO
Sylvania FP54/8(XX)/HO/ECO
Philips F54T5/8(XX)/HO/ALTO
Howard F54T5/8(XX)/HO
Satco Hygrade F54T5/8(XX)/HO/ENV
Halco F54T5/8(XX)/HO/ECO/IC
TCP F54T5HO/8(XX)
Ushio F54T5/8(XX)/HO
Generic F54T5/HO/8(XX)
Note: These tubes will not work with any existing fluorescent ballast. You MUST bypass your current ballast upon install.
Satco's LED T5 tubes save up to 40% energy vs. fluorescent lamps, last 50,000 hours and are DLC qualified. No ballast or driver needed for single-ended or double-ended wiring ballast bypass. Get maximum utility rebates & maintenance savings.

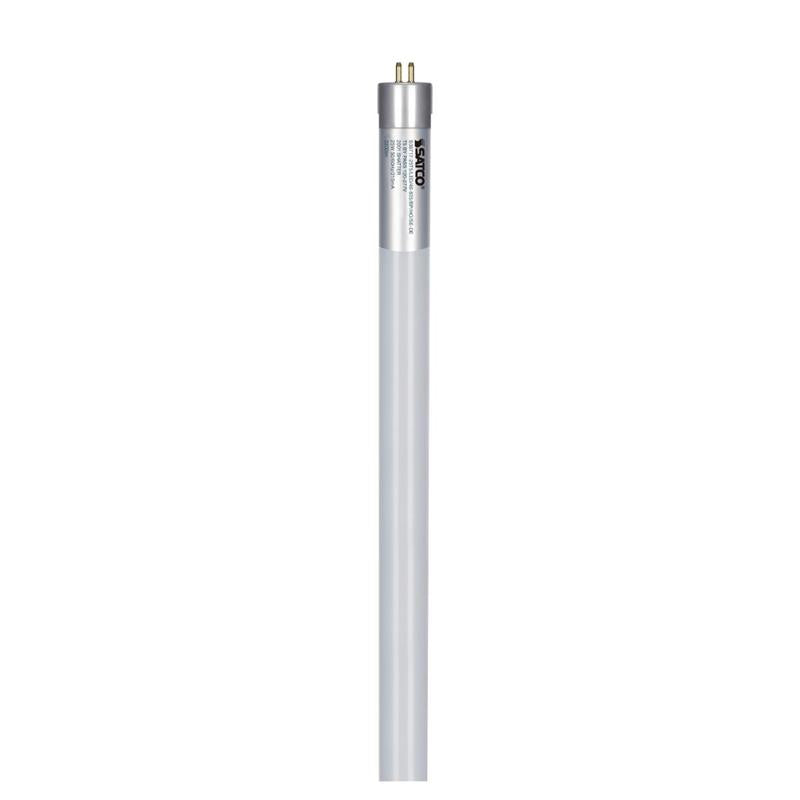

Available in 3500K Bright White, 4000K Cool White, or 5000K Daylight, Satco's LED S3971x T5 ballast bypass tubes use just 25 watts of 120-277 volt energy and emit 3,200-3,400 Lumens of light output. Boasting a 83 CRI rating and 50,000-hour life, these non-dimmable tubes feature a G5 mini bi-pin base and 240° beam angle. DLC QPL-listed and suitable for damp locations.
This Satco T5 LED retrofit is 46" long and .83" in diameter (T6) and comes with a 5 Year Limited Warranty. It retrofits existing F54T5/HO linear fluorescent fixtures, saving energy and reducing maintenance costs in a variety of applications, including residential, commercial, retail displays, and hotels/motels/resorts. Please NOTE: When retrofitting these LED tube lights to a fluorescent fixture, the ballast must be by-passed or removed from the fixture. Additionally, by-passing the ballast will ensure no RFI interference.
**Note: Though nominally referred to as a T5, this lamp has a T6 diameter. Please check the dimensions of your enclosed fixture before ordering.**
