6 Inch 24V MicroLink LED Undercabinet Task Light 3000K

American Lighting SKU: MLINK-30-6
American Lighting 22 Inch 24V MicroLink LED Undercabinet Task Light 3000K

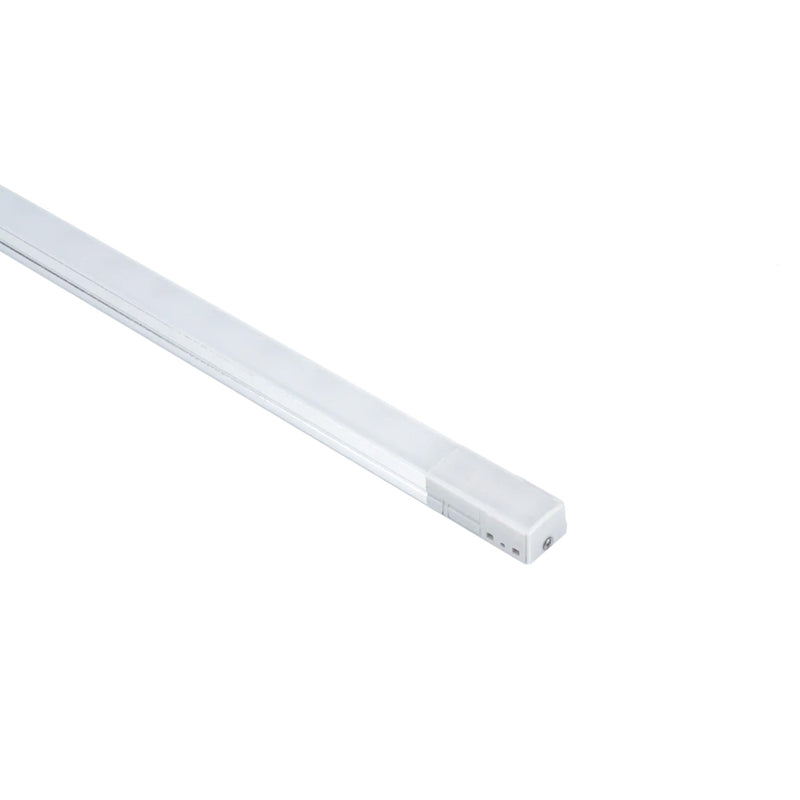

6 Inch 24V MicroLink LED Undercabinet Task Light 3000K

American Lighting SKU: MLINK-30-6
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Fixture Includes:
(1) Attached 6 Inch Female DC Power Connection
(2) Mounting Clips
(1) End Cap

The MicroLink linkable fixtures provides a simple and effective task or accent lighting solution perfect for new construction or remodel application. Achieve stylish task or accent lighting simply by linking the slim profile fixtures to create tailored lighting applications with ease. Additional quick connect accessories make for easy work with more complex installations that allow for right or left angles as well as cross connections.

The American Lighting MLINK-30-6 is a 6 inch LED under cabinet MircoLink light bar measuring 6-3/16" long by 0.5" wide by 0.39" thick, this fixture consumes 2.5 watts to produce 200 lumens. With a long lifespan of 35,000 hours and a wide beam angle of 120 degrees, this fixture offers both functionality and durability.

Manufacturer American Lighting
MPN MLINK-30-6
SKU MLINK-30-6
UPC 714176018096
Lighting Technology LED
Wattage 2.5 Watts
Voltage 24VDC
Max Run 16.4ft (5 Meters)
Color Temperature (Kelvin) 3000K Warm White
Lumens 200 Lumens
Efficiency (Lumens Per Watt) 80 LPW
Dimmable 5-100%* with most standard 2-wire and CL dimmers
Beam Angle 120 Degrees
Rated Life 35,000 Hours
CRI (Color Rendering Index) 90 CRI
Construction Aluminum
Dimensions 6-3/16" L x 0.5" W x 0.39" H
Environment Dry Location



American Lighting MicroLink LED Undercabinet Task Light Specification Sheet

American Lighting MicroLink LED Undercabinet Task Light Installation Instructions
