3 Foot LED 3 Strip 20 Watt Selectable Magnetic Retrofit Kit

ZLED Lighting SKU: MRK3330-30K-PLUS
ZLED Lighting 3 Foot LED 3 Strip 20 Watt Selectable Magnetic Retrofit Kit

3 Foot LED 3 Strip 20 Watt Selectable Magnetic Retrofit Kit

ZLED Lighting SKU: MRK3330-30K-PLUS
Regular price $84.61
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The ZLED Lighting Magnilumen Plus kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. These kits are incredibly efficient and can incur huge savings compared to retrofitting with LED tubes. These kits are perfect for retrofitting 1' x 4', 2' x 4', and 2' x 2' fixtures, as well as 4' and 8' linear strip lights.

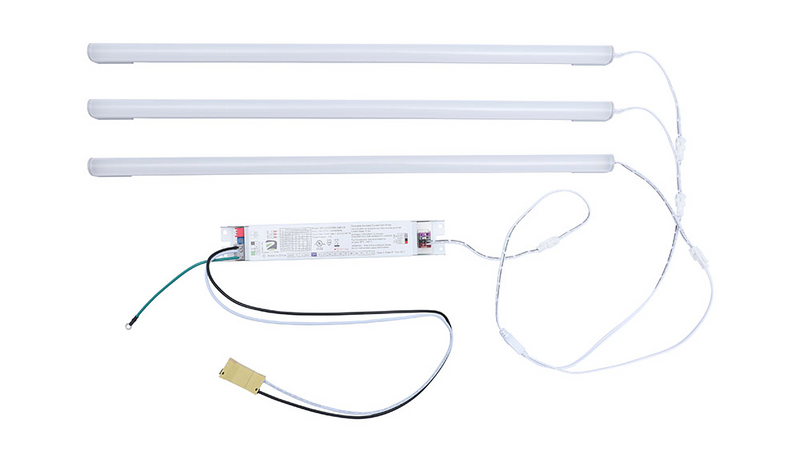

The MRK3330-(XX)K-PLUS is Magnilumen Plus' 3 foot retrofit strip kit, which consumes selectable watts choosing between 7 different wattages. These magnetic strips produce between 1,500-4,800 lumens with a diffuser and between 1,800-5,760 lumens without a diffuser. This kit comes with (3) 3 foot magnetic light strips, a wattage selectable driver, wiring harness and mounting screws. Available in four color temperatures: 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. With a 5 year warranty and 100,000 hour lifespan, these kits are perfect for both new and existing light fixtures.

Manufacturer ZLED Lighting - Magnilumen Plus
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
MPN MRK3330-30K-PLUS MRK3330-35K-PLUS MRK3330-40K-PLUS MRK3330-50K-PLUS
SKU MRK3330-30K-PLUS MRK3330-35K-PLUS MRK3330-40K-PLUS MRK3330-50K-PLUS
UPC 080101408233 080101408240 080101408257 080101408257
Lighting Technology LED
Driver Type Magnetic - See Driver Spec Table Below
Wattage 10/16/20/24/28/30/32 Watts
Input Voltage 100-277VAC
Output Voltage 27-42VDC
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.9
THD (Total Harmonic Distortion) ≤10%
Operating Temperature -40ºF to 122ºF
Strip Dimensions 30.91" L x 0.75" H x 0.72" W
Driver Dimensions 9.213" L x 1.141" H x 1.417" W
Certifications ETL Listed
Environment Damp Location
Warranty 5 Year Standard



Driver Specifications - MRK-DRIVER-30W-PLUS
Input Wattage Input Voltage Output Voltage Switch 1 Switch 2 Switch 3
10 Watt 230MA 27-42V Up Up Up
16 Watt 360MA Down Up Up
20 Watt 440MA Up Down Up
24 Watt 530MA Up Up Down
28 Watt 610MA Down Up Down
30 Watt 660MA Up Down Down
32 Watt 730MA Down Down Down



Wattage Lumens W/Diffuser Efficiency (Lumens Per Watt) Lumens W/O Diffuser Efficiency (Lumens Per Watt)
10 Watt 1,500 Lumens 150 LPW 1,800 Lumens 180 LPW
16 Watt 2,400 Lumens 2,880 Lumens
20 Watt 3,000 Lumens 3,600 Lumens
24 Watt 3.600 Lumens 4,320 Lumens
28 Watt 4,200 Lumens 5,040 Lumens
30 Watt 4,500 Lumens 5,400 Lumens
32 Watt 4,800 Lumens 5,760 Lumens
