4 Foot LED 2 Strip 20 Watt Selectable Magnetic Retrofit Kit

ZLED Lighting SKU: MRK2420-30K-PLUS
ZLED Lighting 4 Foot LED 2 Strip 20 Watt Selectable Magnetic Retrofit Kit

4 Foot LED 2 Strip 20 Watt Selectable Magnetic Retrofit Kit

ZLED Lighting SKU: MRK2420-30K-PLUS
  • DLC Listed
Regular price $67.72
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The ZLED Lighting Magnilumen Plus kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. These kits are incredibly efficient and can incur huge savings compared to retrofitting with LED tubes. These kits are perfect for retrofitting 1' x 4', 2' x 4', and 2' x 2' fixtures, as well as 4' and 8' linear strip lights.

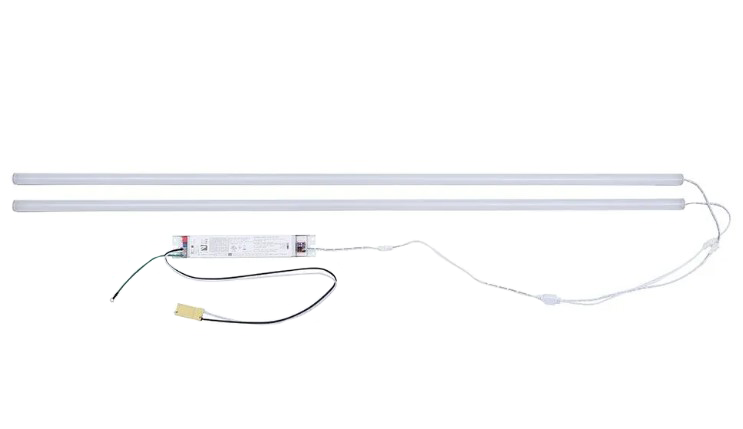

The MRK2420-(XX)K-PLUS is Magnilumen Plus' 4 foot retrofit strip kit, which consumes selectable watts choosing between 7 different wattages. These magnetic strips produce between 1,200-3,300 lumens with a diffuser and between 1,440-3,960 lumens without a diffuser. This kit comes with (2) 4 foot magnetic light strip, a wattage selectable driver, wiring harness and mounting screws. Available in four color temperatures: 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. With a 5 year warranty and 100,000 hour lifespan, these kits are perfect for both new and existing light fixtures.

Manufacturer ZLED Lighting - Magnilumen Plus
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight
MPN MRK2420-30K-PLUS MRK2420-35K-PLUS MRK2420-40K-PLUS MRK2420-50K-PLUS
SKU MRK2420-30K-PLUS MRK2420-35K-PLUS MRK2420-40K-PLUS MRK2420-50K-PLUS
UPC 080101408530 080101408547 080101408554 080101408561
DLC Product ID PGQ0EQK2 POHLAPAY PHAZB93K PXMN72Q2
Lighting Technology LED
Driver Type Magnetic - See Driver Spec Table Below
Wattage 8/10/14/16/18/20/22 Watts
Input Voltage 100-277VAC
Output Voltage 27-42VDC
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor ≥0.9
THD (Total Harmonic Distortion) ≤10%
Operating Temperature -40ºF to 122ºF
Strip Dimensions 42.91" L x 0.75" H x 0.72" W
Driver Dimensions 9.213" L x 1.141" H x 1.417" W
Certifications DLC Listed, ETL Listed
Environment Damp Location
Warranty 5 Year Standard



Driver Specifications - MRK-DRIVER-20W-PLUS
Input Wattage Input Voltage Output Voltage Switch 1 Switch 2 Switch 3
8 Watt 190MA 27-42V Up Up Up
10 Watt 240MA Down Up Up
14 Watt 320MA Up Down Up
16 Watt 370MA Up Up Down
18 Watt 410MA Down Up Down
20 Watt 470MA Up Down Down
22 Watt 510MA Down Down Down



Wattage Lumens W/Diffuser Efficiency (Lumens Per Watt) Lumens W/O Diffuser Efficiency (Lumens Per Watt)
8 Watt 1,200 Lumens 150 LPW 1,440 Lumens 180 LPW
10 Watt 1,500 Lumens 1,800 Lumens
14 Watt 2,100 Lumens 2,520 Lumens
16 Watt 2,400 Lumens 2,880 Lumens
18 Watt 2,700 Lumens 3,240 Lumens
20 Watt 3,000 Lumens 3,600 Lumens
22 Watt 3,300 Lumens 3,960 Lumens
