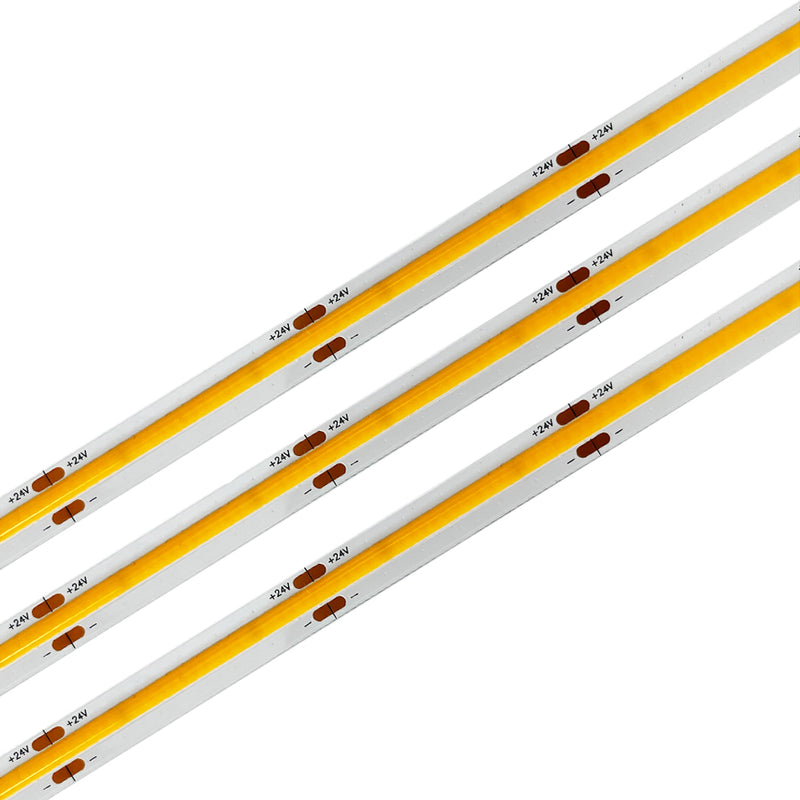

GM Lighting's Specification Chip On Board (COB) Series Flexible LED Tape provides standardized LED linear lighting without compromise. The LTR-S COB Series includes diodes densely arranged in a linear format, available in various color temps and colors and can be cut as needed. The tape is sold in 16 foot and 4 inch (5 meter) reels, connectable with GM Lighting Sure-Tite connectors (sold separately). Related items can be found below.
LEDTask from GM Lighting is a flexible LED tape designed for optimal energy efficiency, envisioned for details such as cove lighting, task lighting, and hospitality lighting. It is capable of adhering to any curved or irregularly shaped architectural surface, ideal for accentuating certain details in the environment.
The GM Lighting LTR-E Specification COB Series 16-foot (5-meter) LED Tape reel, part number LTR-S-COB-24V-3.0W-(XX)K-16, offers 156 LEDs per foot for 3-watt illumination. It can be cut every 2 inches and is fitted with 3M double-sided mounting tape for ease of installation. Dry-location use only; for Wet-Location rated products, please refer to the LTR-P-WP series. Accompanied by a 5-Year Warranty when paired with a GM Lighting power supply, the LTR-S COB series' related items are available below.
To power the LTR-S-COB-24V-3.0W-(XX)K-16 LED Tape Light 95 CRI, a separate power supply is required. The most popular dimmable options are the LD-MD-UNV60 and the LD-MDUNV150-12. These magnetic LED dimmable power supplies offer a convenient Class II hardwire LED dimming, along with an auto reset thermal circuit breaker on their secondary side. They have a 120V 60Hz input and are ETL listed for both indoor and outdoor use. The most popular non-dimmable option is the 60 watt LTP-6, a Class II power supply featuring a 126" long, 2-prong cord with an in-line on/off switch.
Manufacturer | GM Lighting | |||
Length | 16'-4" (5M) | |||
Color Temperature (Kelvin) | 2700K Warm White | 3000K Warm White | 3500K Bright White | 4000K Cool White |
MPN | LTR-S-COB-24V-3.0W-27K-16 | LTR-S-COB-24V-3.0W-30K-16 | LTR-S-COB-24V-3.0W-35K-16 | LTR-S-COB-24V-3.0W-40K-16 |
SKU | LTR-S-COB-24V-3.0W-27K-16 | LTR-S-COB-24V-3.0W-30K-16 | LTR-S-COB-24V-3.0W-35K-16 | LTR-S-COB-24V-3.0W-40K-16 |
UPC | 849951014359 | 849951014366 | 849951014373 | 849951014380 |
Efficiency (Lumens Per Foot) | 255 LPF | 265 LPF | 275 LPF | 285 LPF |
Lighting Technology | LED | |||
Wattage Per Foot | 3.0 Watt | |||
Voltage Output | 24VDC | |||
Dimmable | Yes | |||
CRI (Color Rendering Index) | 95 CRI | |||
Field Cuttable | Every 2 Inches | |||
Beam Angle | 180 Degrees | |||
Certifications | Class 2, Title 24 Compliant | |||
Environment | Dry Location | |||
Warranty | 5 Year Standard |
