GM Lighting's LTR Series is a flexible LED ribbon for straight, curved, and irregular architectural lighting needs. Available in 16ft/4in or 100ft reels with standard or high output LEDs that can be cut for custom installation. The GM Lighting LEDTask series is perfect for cove lighting, architectural details, task lighting, and hospitality settings. To assist with your specific project needs, flexible LED ribbon accessories include end-to-end flexible ribbon to ribbon connectors or ribbon to power supply connectors, as well as the GMSB series black or white splice boxes (all sold separately).

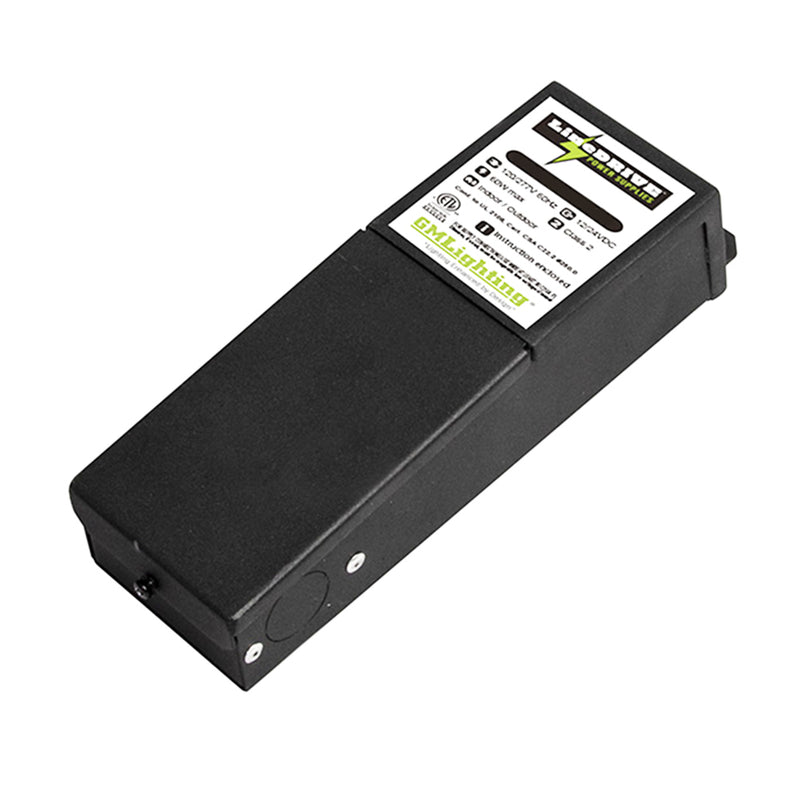

The LineDRIVE Series LD-MD-UNV60 60 Watt Power Supply is essential for powering GM Lighting LED flexible ribbon products. This product is a magnetic power supply that can be used with standard low voltage magnetic wall mount dimmers with an on/off switch, providing 12 or 24 VDC output from a 120 or 277 VAC input. However, it is not recommended for digital control systems. With its high efficiency and auto reset feature, it is the perfect replacement for the LTHM60-DIM and LTHM60-DIM-24. Measuring 8.86" x 3.31" x 2.89", this hardwire power supply is the most compact Class II dimmable magnetic power supply available. For optimal performance, it is recommended to use a load between 40% and 85%. Additionally, it is equipped with an auto reset thermal circuit breaker and is compatible with MLV dimmers. The LD-MD-UNV60 is ETL listed for both indoor and outdoor use, making it a versatile and reliable choice for your flexible LED ribbon lighting power supply needs.
| Manufacturer | GM Lighting |
| MPN | LD-MD-UNV60 |
| SKU | LD-MD-UNV60 |
| UPC | 849951015417 |
| Lighting Technology | LED |
| Wattage | 60 Watts |
| Voltage Output | 12VDC & 24VDC |
| Input Current | 663mA @ 120VAC; 290mA @ 277VAC |
| Current Output | 5A @ 12VDC; 2.50A @ 24VDC |
| Output Full Load | 11.3VDC; 23.2VDC |
| Open Circuit Output Voltage | 12.9VDC & 25.4VDC |
| Frequency | 60Hz |
| Dimmable | Yes, With Compatible MLV Dimmers |
| Power Factor | 0.87 |
| Operating Temperature | 0 to 104°F (-18 to 40°C) |
| Dimensions | 8.86"L x 3.31"W X 2.89"H |
| Certifications | Class 2, ETL Compliant, NEMA 3R |
| Environment | Wet Locations |
| Warranty | 5 Year Limited |
