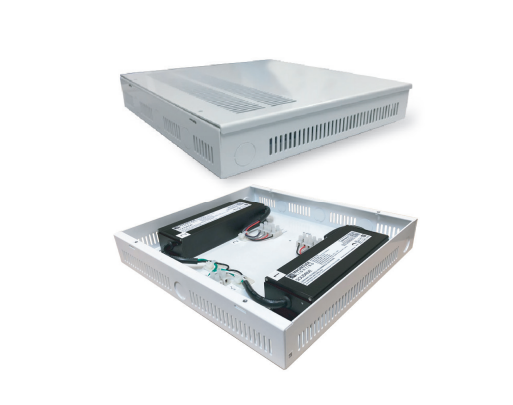

The EZJBOX (EZ Junction Box) Series features select Magnitude Class 2, electronic LED drivers integrated into a simple surface-mounted, multichannel junction box, making it the perfect product for multi-output needs in tape lighting, tube lighting, linear lighting, and multiple other commercial lighting applications. The high-quality metal, UL Listed junction box includes multiple ⁷⁄₈” knock-outs and comes pre-wired for quick and easy installation.
The EZJBOX | SOLIDRIVE uses Magnitude’s SOLIDRIVE electronic Class 2, 0-10V or phase-cut dimmable LED drivers with 2-channel configuration. The drivers feature hiccup mode, over current and short circuit protection, as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE Series is dimmable down to 1% with a 0-10V or phase-cut dimmer and is also available in a non-dimmable version.
This is the Magnitude EZJ-S-D-120-24DC, a EZJ-Box with SOLIDRIVE constant voltage electronic drivers in a junction box. The input voltage is 120-277 volt and the max output current is 5000mA each driver. This junction box includes (2) 60 Watt constant voltage drivers, totaling 120 watts and has 0-10V dimming. The physical dimensions of this product is 11" length x 12" width x 2.13" height with a 5 year warranty.
| Manufacturer | Magnitude Lighting |
| MPN | EZJ-S-D-120-24DC |
| SKU | EZJ-S-D-120-24DC |
| UPC | 810020792911 |
| Lighting Technology | LED |
| Driver Type | Constant Current |
| Wattage | 120 Watts (2 x 60 Watt Drivers) |
| Input Voltage | 120-277VAC |
| Voltage Output | 24VDC |
| Input Current | 0.96A |
| Current Output | 5000mA (2 x 2500mA Drivers) |
| Frequency | 50/60Hz |
| Dimmable | Yes, 0-10V |
| Power Factor | 0.95 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Housing | Galvanized Steel |
| Mounting | 4-Keyhole Mount |
| Dimensions | 11" L x 12" W x 2.13" H |
| Certifications | UL8750 Class 2, Title 24 Compliant |
| Environment | Dry Location |
| Warranty | 5 Year Standard |
