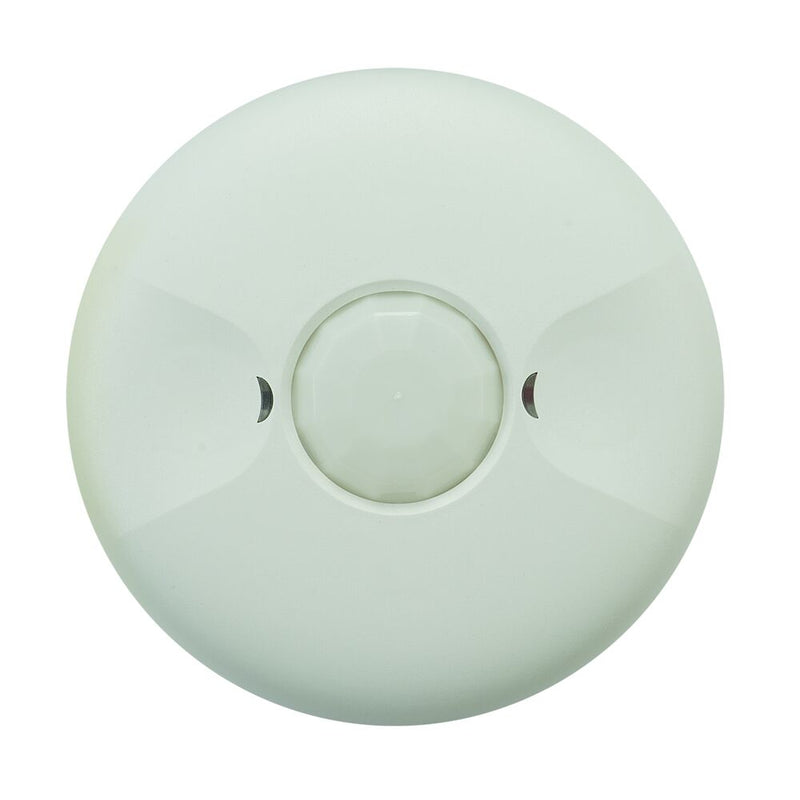

The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.
The occupancy sensor features 2 DIP switch settings. Each setting can be set to an up or down position to configure the DIP switch setting. Follow these steps to adjust the DIP switch settings.
Manufacturer | Intermatic |
MPN | IOS-CMP-U |
SKU | IOS-CMP-U |
UPC | 078275139916 |
Lighting Technology | LED, CFL, Fluorescent, Incandescent |
Input Voltage Range | 120/277VAC |
Frequency | 60Hz |
Sensor Technology | PIR (Passive Infrared) |
PIR Coverage Area | 1200 Square Feet |
PIR Coverage Pattern | 360 Degrees |
Mounting | Ceiling |
Maximum Mounting Height | 8-11ft |
Occupancy Sensor Power Type | Line Voltage |
Tungsten Range | 800 Watts |
Resistive Load Ratings Ranges | 10A |
Motor Load Ratings Ranges | 1/4 HP |
Electronic Ballast Load Ratings Ranges | 800 VA,120/125 VAC; 1600 VA, 277 VAC |
Neutral Connection Required |
Yes |
Adjustable Time Delay Minimum | 15 Seconds |
Adjustable Time Delay Maximum | 30 Minutes |
Adjustable Light Level Minimum | 10FC |
Adjustable Light Level Maximum | 150FC |
Operating Temperature | 32°F (0°C) to 131°F (55°C) |
Dimensions | 1.375" H x 4.563" Diameter |
Certifications | Title 20, cULus |
Warranty | 2 Year Limited |
