210/250/320 Watt Beam Adjustable LED 120-277V Slim Flood Trunnion and Yoke Mount 3000/4000/5000K

MaxLite SKU: 111751
MaxLite 210/250/320 Watt Beam Adjustable LED 120-277V Slim Flood Trunnion and Yoke Mount 3000/4000/5000K

210/250/320 Watt Beam Adjustable LED 120-277V Slim Flood Trunnion and Yoke Mount 3000/4000/5000K

MaxLite SKU: 111751
  • IP65, DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The MaxLite Slim Flood Light family delivers high performance in a small and price effective package. Larger wattages (100-320W) are available with either 2 3/8” OD knuckle slipfitter or a yoke mounting. All models are CCT selectable, allowing customers to choose from 3000K, 4000K or 5000K. 100-150W versions have an integral photocell that can be turned on or off. The 210-320W versions include a 7pin NEMA twist lock receptacle with a shorting cap so customers can install a twist lock photocell or control node if required. Additionally, all models have adjustable beam angles allowing the customer to customize the optics to their application.

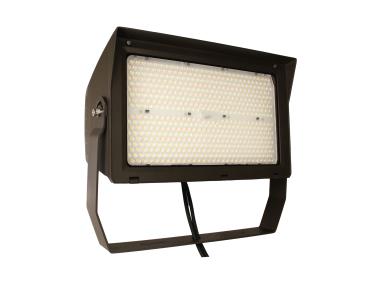

This is MaxLite beam adjustable slim flood light, part number MSF320UA-WCSBYPR7 (111751). It consumes 210/250/320 watts of 120-277V energy and delivers between 40,070-44,880 lumens of 3000K warm white, 4000K cool white or 5000K daylight LED light output. This easy to install slim flood light comes with a trunnion and yoke mount. This fixture is beam angle selectable allowing you to chose between narrow 55° angle, medium 75° angle and wide 90° angle. The selectable flood light includes a 7pin twist lock receptacle with shorting cap. This DLC Premium Listed fixture is wet location rated and comes with a standard 5 year warranty.

Manufacturer MaxLite
MPN MSF320UA-WCSBYPR7
SKU 111751
UPC 767627064548
Lighting Technology LED
Wattage 210/250/320 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 40,070-44,880 Lumens
Efficiency (Lumens Per Watt) 127-142 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle Adjustable (Narrow 55°; Medium 75°; Wide 90°)
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor 0.9
Finish Corrosion Resistant Polyester Powder
Housing Die Cast Aluminum
Lens Tempered Glass
Mounting Trunnion and Yoke
Operating Temperature -40°C (-40°F) to 40°C (104°F)
Dimensions 16.18" H x 16.61" L x 8.86" W
Certifications DLC Listed, IP65 Rated, FCC Compliant
DLC Product ID S-QDJGFR
Environment Wet Location
Warranty 5 Year Standard



MaxLite Beam Adjustable LED Slim Flood Light Specification Sheet

MaxLite Beam Adjustable LED Slim Flood Light Installation Instructions

MaxLite Beam Adjustable LED Slim Flood Light DLC Product Listed
