The high quality alternative to Gripple, B-Line KwikWire/Kwik Clamps or Caddy Speed Link, the Rize Kwik Loc (also called Kwik Lock or Quick Lock) cable lock is a fast and reliable cable suspension system. The Rize Kwik Loc is a trade name of Duro Dyne. Duro Dyne also manufactures cable locks under the trade name of Dyna-Tite. Duro Dyne cable locks provide a fast, strong and lightweight cable hanger solution for hanging mechanical and HVAC systems, warehouse lighting, sound systems, cable trays, fan units or seismic bracing. Its time saving qualities have been shown to increase productivity by up to six times compared to traditional hanging methods. The installation process is straight forward and requires no specialized training. The Rize Kwik Loc wire rope cable fixture hanger kit also offers the installer the flexibility to position the hangers vertically or at an angle to the suspended object. All Rize Enterprises LLC and Duro Dyne Corporation products are thoroughly tested at their Long Island facility and by independent laboratories around the world.

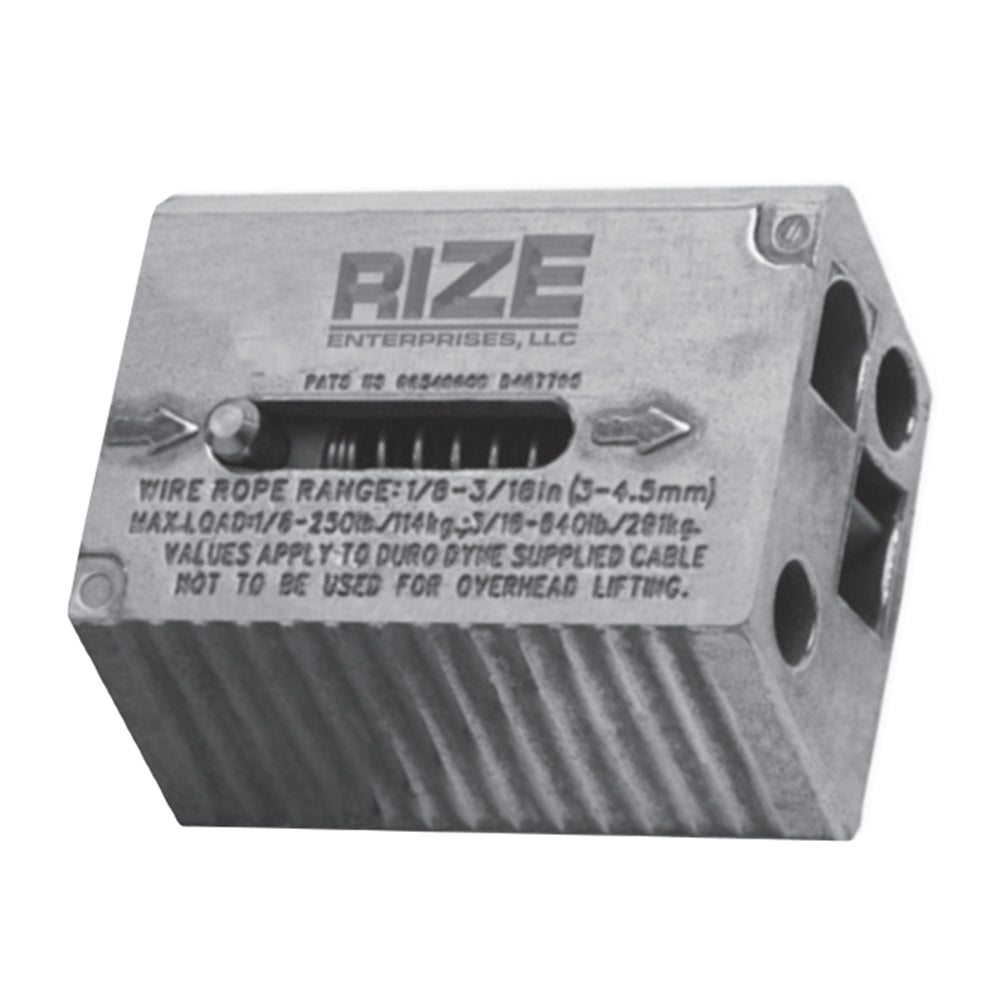

All Kwik-Locs have been tested, and are UL Listed to UL 1598 and are listed under file number E246601. Introduced to work on most light hanging applications, the CL23-WC6 (KL200) can be used to hang 50-640 lbs. The CL23-WC6 (KL200) has a one piece die cast Zinc type Zamac 5 housing combining major anti-corrosion properties with strength and consistent manufacturing quality. The key components to this revolutionary cable lock are the internal locking wedges. An oil impregnated, sintered steel locking wedge is seated in each of the two channels.
Both wedges incorporate a release pin for easy adjustment. Each wedge makes contact with the wire rope using serrated teeth. These teeth press onto the wire rope and spread the load across the length of the wedge, maximizing grip strength. Each spring within each CL23-WC6 (KL200) is manufactured of type 302 S26 stainless steel. Now you see why we call this a quality, revolutionary product! The CL23-WC6 (KL200) is designed for use with the Duro Dyne WC6 (Rize RWC6) 3/16" Galvanized Steel Wire Rope.
MANUFACTURER'S RECOMMENDATIONS:
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE KWIK-LOC. DO NOT USE IN CHLORINATED ATMOSPHERES. FOR USE IN DRY LOCATIONS ONLY. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.
