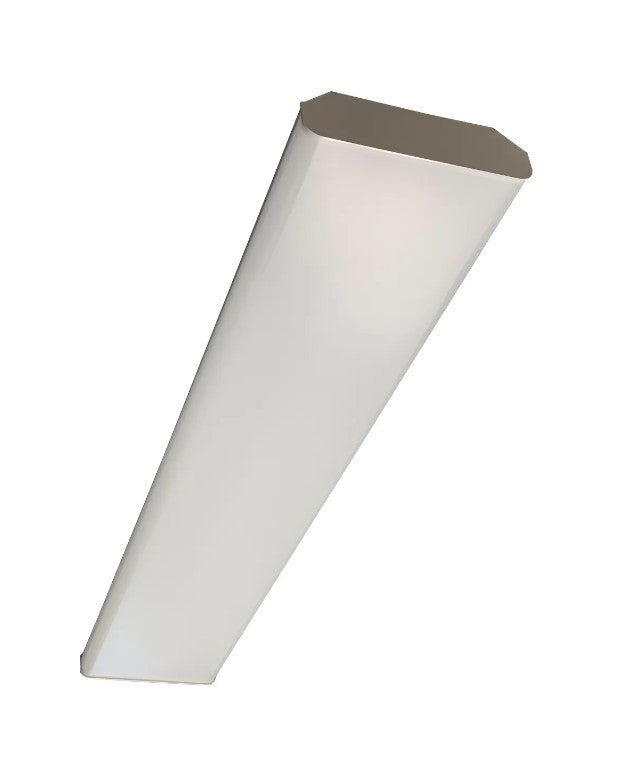

2 Foot 23 Watt ProLED Linear Wraparound Diffused Lens Light Fixture

Halco Lighting Technologies SKU: 10300
Halco Lighting Technologies 2 Foot 23 Watt ProLED Linear Wraparound Diffused Lens Light Fixture 4000K Cool White

2 Foot 23 Watt ProLED Linear Wraparound Diffused Lens Light Fixture

Halco Lighting Technologies SKU: 10300
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

The Halco Linear Wrap Series Luminaire is a cost-effective solution for replacing pre-existing fluorescent fixtures. These maintenance-free, stainless steel LED wraps are exceptionally efficient and can be either surface or chain mounted. The durable acrylic lenses are offered in either prismatic or diffused for enhanced optical performance and visual comfort.

The Halco LWA-D23U2-(XX) 2 Foot Wraparound LED light fixture with Diffused Lens, consumes only 23 watts while producing 3,073-3,125 lumens (134-136 lumens per watt) of 4000K or 5000K light. This is equivalent to a 2 lamp 17W T8 fluorescent fixture. With a 70% LED lumen maintenance at 100,000 hours (L70), this fixture boasts a long-life LED design, coupled with the high-efficiency driver, to provide superior illumination for an extended service life. Running on 120-277 volts, the fixture also features a 0-10V dimming driver that can dim down to 10%, and comes with a 5 year limited warranty.

Manufacturer Halco Lighting Technologies
Color Temperature (Kelvin) 4000K Cool White 5000K Daylight
MPN LWA-D23U2-40 LWA-D23U2-50
SKU 10300 10305
UPC 807154103041 807154103065
Lumens 3,073 Lumens 3,125 Lumens
Efficiency (Lumens Per Watt) 134 lm/W 136 lm/W
DLC Product ID S-O1GK68 S-OUQMWG
Lighting Technology LED
Wattage 23 Watts
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) >80 CRI
Power Factor 0.9
Housing White Steel
Lens Diffused Acrylic Lens
Fluorescent Equivalent 2 x 17W T8
Operating Temperature -20°C to 50°C
Dimensions 23-11/16” L x 9-3/8” W x 2-11/16” H
Certifications DLC Listed, RoHS Compliant, FCC Compliant, cULus Listed
Environment Damp Location
Warranty 5 Year Standard



Halco ProLED Linear Wraparound Light Fixture Specification Sheet

Halco ProLED Linear Wraparound Light Fixture Installation Instructions

Halco ProLED Linear Wraparound Light Fixture 4000K DLC Product Listing

Halco ProLED Linear Wraparound Light Fixture 5000K DLC Product Listing
