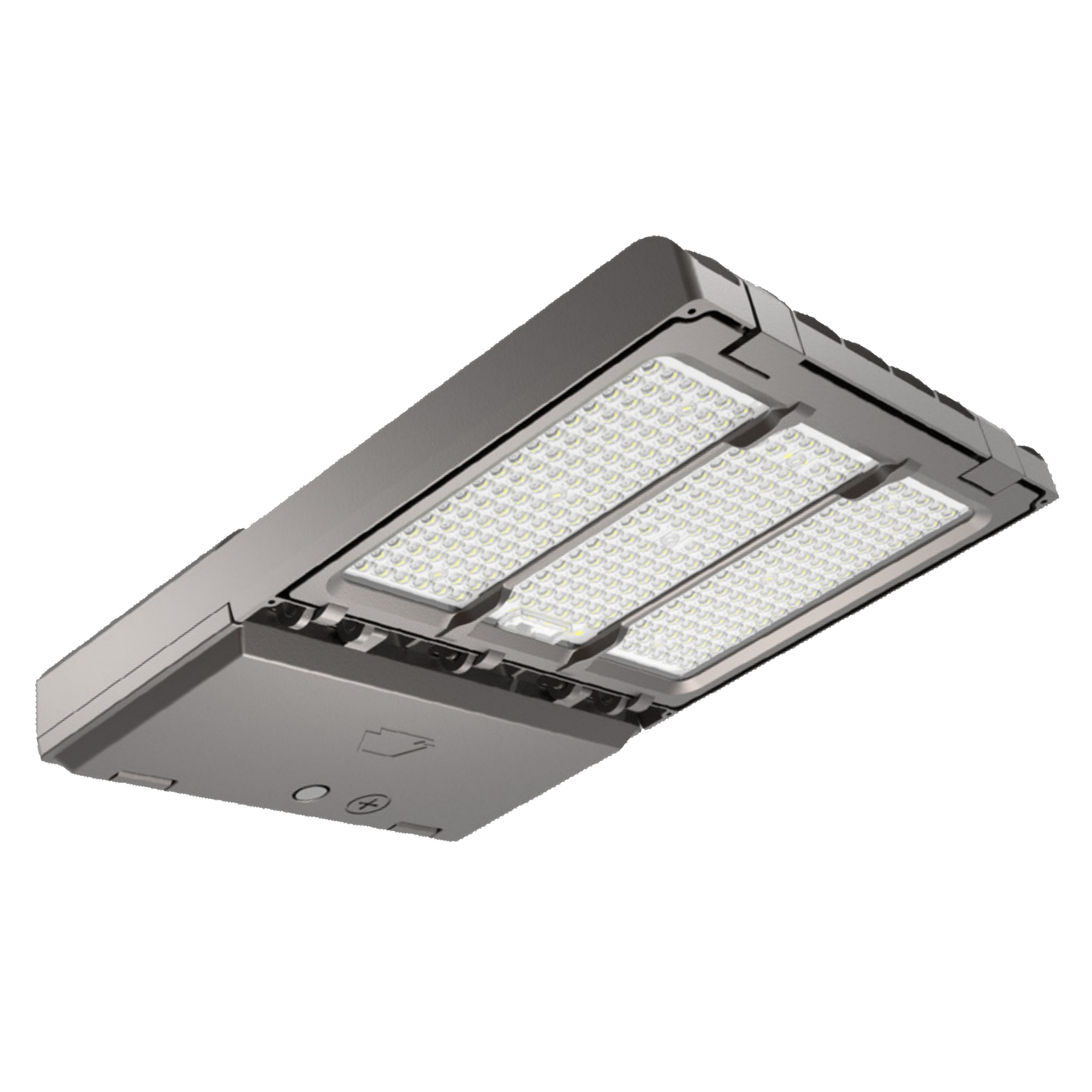

Keystone's XFit Area Lights are an innovative LED lighting solution, designed to provide superior illumination in a modern and low-profile design. With their energy-saving technology, these lights offer a cost-effective and eco-friendly lighting solution, making them an excellent choice for those seeking to reduce their energy consumption. OpticSwap is a Keystone innovation that makes switching optics tool-free: undo two clasps, change out the optic lens, and relatch the clasps.
Available in Large, Medium, and Small housings, Keystone's XFit Area Lights come with a variety of mounting, optic, and sensor options, making them highly customizable to meet the specific needs of your outdoor space. To further increase energy savings and controllability, these LED Area Lights are powered by Keystone's 0-10V dimming drivers and come with an integrated twist-lock receptacle for dusk-to-dawn photocells. For added convenience, contractor-friendly motion sensors can be easily field-installed with no wiring required.
If you're in need of versatile 120-277V area light, the 140 Watt option is an excellent choice. Available with a preinstalled Type III light distribution, with a Type V lens included to change optics. This area light comes in either 4000K cool white or 5000K daylight, and 20,920 lumens, these lights provide a high level of brightness and clarity, ensuring superior coverage in any outdoor space.

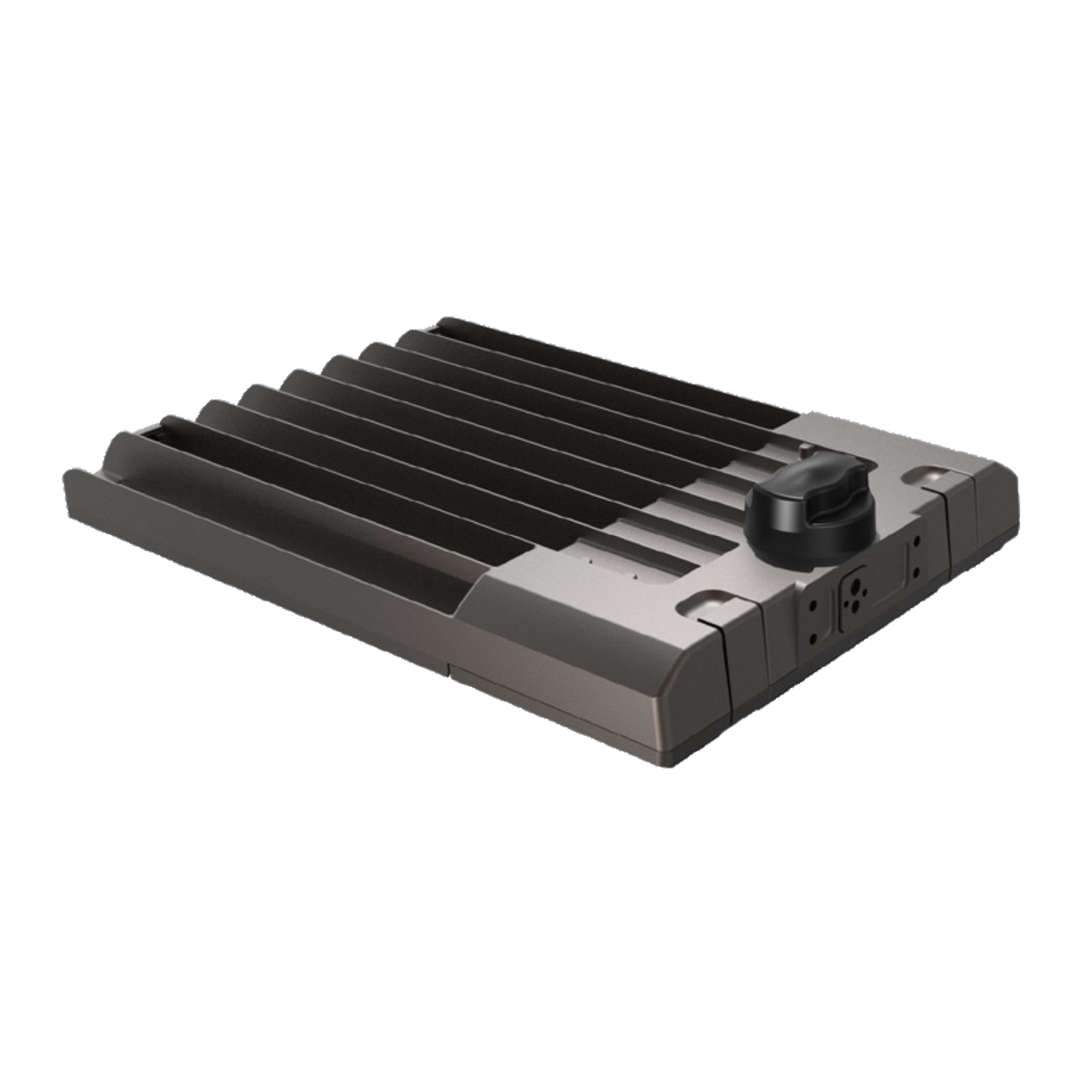

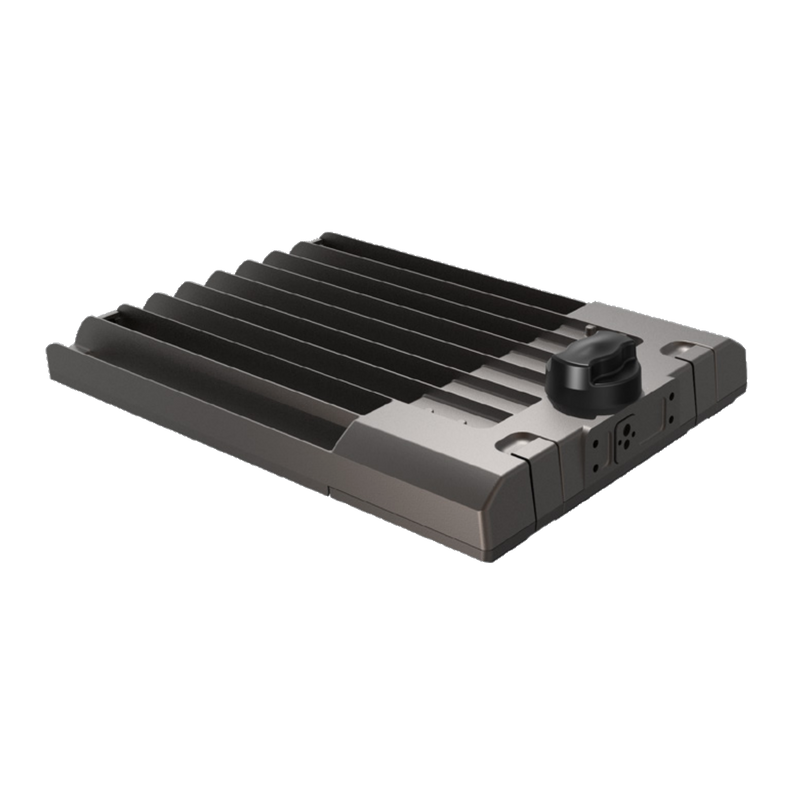

The die-cast aluminum housing of the XFit Area Lights comes with ample heat sinking, providing enhanced thermal performance, and ensuring maximum durability and longevity. This area light fixture is dimmable, allowing for even greater energy savings and customization, and is rated for an impressive 50,000 hours of use. Kitted Area Light options are also available, simplifying fixture selection and allowing for easy stocking.
Applications:
| Manufacturer | Keystone Technologies | |
| Color Temperature (Kelvin) | 4000K Cool White | 5000K Daylight |
| MPN | KT-ALED140-M2-OSA-NM-840-VDIM | KT-ALED140-M2-OSA-NM-850-VDIM |
| SKU | KT-ALED140-M2-OSA-NM-840-VDIM | KT-ALED140-M2-OSA-NM-850-VDIM |
| UPC | 843654153001 | 843654153018 |
| Lighting Technology | LED | |
| Wattage | 140 Watts | |
| Voltage | 120-277V | |
| Lumens | 20,920 Lumens | |
| Efficiency (Lumens Per Watt) | 149 LPW | |
| Dimmable | 0-10V Dimming | |
| Rated Life | 100,000 Hours (L70) | |
| CRI (Color Rendering Index) | 80 CRI | |
| Power Factor | >0.95 | |
| THD (Total Harmonic Distortion) | <20% | |
| Light Distribution | Type III Installed, Type V Included | |
| Finish Color | Bronze | |
| Housing | Die-Cast Aluminum | |
| Metal Halide Equivalent | 400 Watts | |
| Operating Temperature | −40°C to 50°C | |
| Dimensions | 5.63" H × 13.15" W × 21.65" L | |
| Certifications | RoHS Compliant, FCC Compliant | |
| Environment | Wet Location | |
| Warranty | 5 Year Standard | |
