The ZLED Lighting Magnilumen Plus kits are easy to install and fit into almost any existing linear fluorescent fixture with onboard magnets. This makes it a perfect upgrade option where energy savings and lighting efficiency is key like hospitals, schools, office buildings, car dealerships, correctional facilities, showrooms, retail stores and any structure looking for a brighter and crisper lighting scene. These kits are incredibly efficient and can incur huge savings compared to retrofitting with LED tubes. These kits are perfect for retrofitting 1' x 4', 2' x 4', and 2' x 2' fixtures, as well as 4' and 8' linear strip lights.

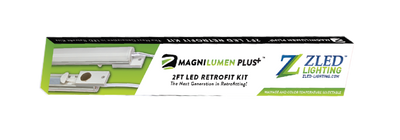

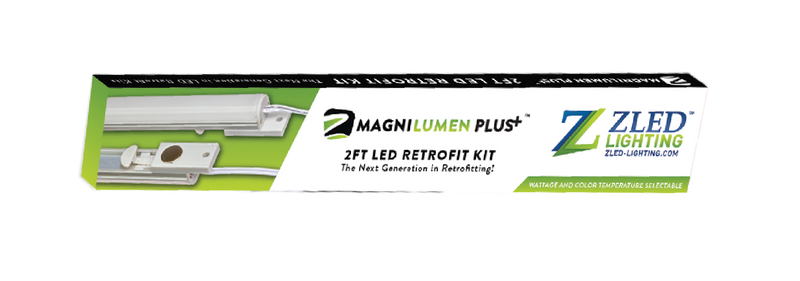

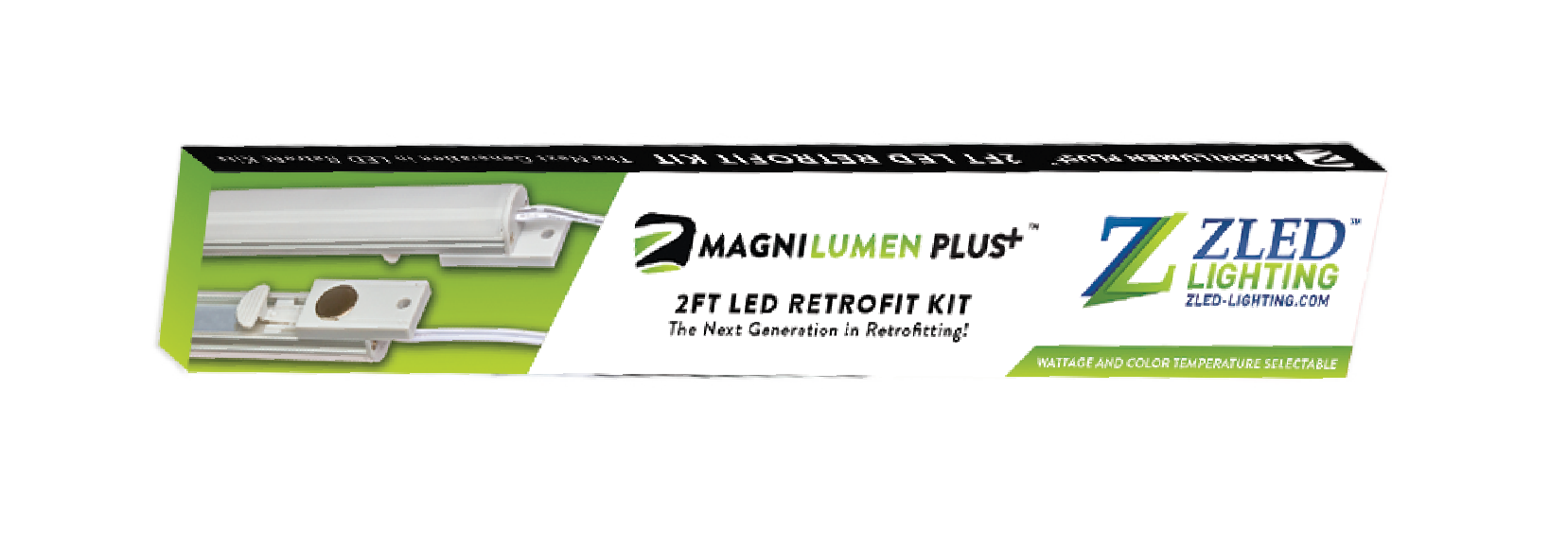

The MRK2220-CSK-PLUS-RP is Magnilumen Plus' 2 foot retrofit strip kit, which consumes selectable watts choosing between 7 different wattages. These magnetic strips produce between 1,200-3,300 lumens with a diffuser and between 1,440-3,960 lumens without a diffuser. This kit comes with (2) 2 foot magnetic light strips, a wattage selectable driver, wiring harness and mounting screws. This magnetic retrofit kit is color selectable allowing you to choose between 3 color temperatures: 3500K bright white, 4000K cool white and 5000K daylight. With a 5 year warranty and 100,000 hour lifespan, these kits are perfect for both new and existing light fixtures.
Manufacturer | ZLED Lighting - Magnilumen Plus |
MPN | MRK2220-CSK-PLUS-RP |
SKU | MRK2220-CSK-PLUS-RP |
UPC | 080101407472 |
Lighting Technology | LED |
Driver Type | Magnetic - See Driver Spec Table Below |
Wattage | 8/10/14/16/18/20/22 Watts |
Input Voltage | 100-277VAC |
Output Voltage | 27-42VDC |
Color Temperature (Kelvin) | 3500/4000/5000K |
Dimmable | Yes, 0-10V Dimming |
Rated Life | 100,000 Hours |
CRI (Color Rendering Index) | 80 CRI |
Power Factor | ≥0.9 |
THD (Total Harmonic Distortion) | ≤10% |
Operating Temperature | -40ºF to 122ºF |
Strip Dimensions | 21.06" L x 0.75" H x 0.72" W |
Driver Dimensions | 9.213" L x 1.141" H x 1.417" W |
Certifications | ETL Listed |
Environment | Damp Location |
Warranty | 5 Year Standard |
Driver Specifications - MRK-DRIVER-20W-PLUS | |||||
Input Wattage | Input Voltage | Output Voltage | Switch 1 | Switch 2 | Switch 3 |
8 Watt | 190MA | 27-42V | Up | Up | Up |
10 Watt | 240MA | Down | Up | Up | |
14 Watt | 320MA | Up | Down | Up | |
16 Watt | 370MA | Up | Up | Down | |
18 Watt | 410MA | Down | Up | Down | |
20 Watt | 470MA | Up | Down | Down | |
22 Watt | 510MA | Down | Down | Down |
Wattage | Lumens W/Diffuser | Efficiency (Lumens Per Watt) | Lumens W/O Diffuser | Efficiency (Lumens Per Watt) |
8 Watt | 1,200 Lumens | 150 LPW | 1,440 Lumens | 180 LPW |
10 Watt | 1,500 Lumens | 1,800 Lumens | ||
14 Watt | 2,100 Lumens | 2,520 Lumens | ||
16 Watt | 2,400 Lumens | 2,880 Lumens | ||
18 Watt | 2,700 Lumens | 3,240 Lumens | ||
20 Watt | 3,000 Lumens | 3,600 Lumens | ||
22 Watt | 3,300 Lumens | 3,960 Lumens |
