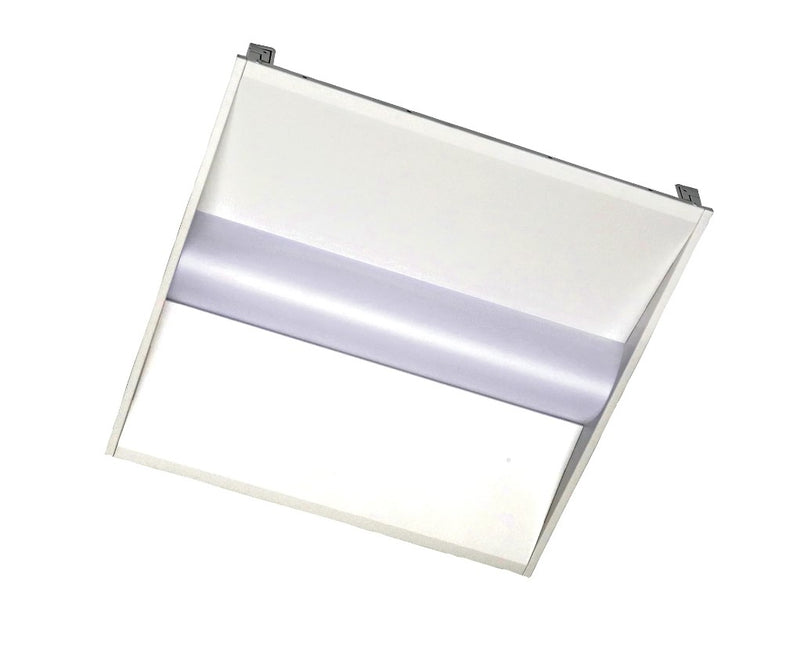

2x2 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81780
Halco Lighting Technologies 2x2 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K Selectable

2x2 15/19/24/29 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81780
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Halco Lighting Technologies' ProLED Select Volumetric Panel Series provides an architectural, modern design with increased visual comfort and functionality. This innovative product features both Wattage and CCT Selectability to make this one of the most versatile Volumetric Panels on the market.

This 2x2 LED Selectable Volumetric Panel by Halco, the 22FSVPL/8DU, is perfect for low depth ceiling cavities, making it ideal for offices and schools. It has a wattage selection of 15/19/24/29 watts using 120-277 volts of energy with a power factor of 90%. The panel generates 2,175-4,379 lumens depending on the selected wattage and has a rated lumen maintenance of 50,000 hours. It comes in a choice of 3500K Bright White, 4000K Cool White, or 5000K Daylight color temperatures. These panels are a damp location rated and RoHS compliant replacement for 2x32WT8 equivalents. DLC listed, this 2x2 lay-in LED light panel has a 5 year limited warranty.

Manufacturer Halco Lighting Technologies
MPN 22FSVPL/8DU
SKU 81780
UPC 807154817801
Lighting Technology LED
Voltage 120-277 Volt
Dimmable Yes, 0-10V
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor >0.9
Housing Die Cast Steel
Lens Diffused Polycarbonate
Operating Temperature 20°C - 40°C
Dimensions 23 13/16" L x 23 13/16" W x 2 3/16" H
Certifications DLC Listed, cULus, FCC, RoHS Compliant
DLC Product ID PLHCLLYQ6TDS
Environment Damp Location, IC Rated
Warranty 5 Year Limited



Wattage 15 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,175 Lumens 2,340 Lumens 2,205 Lumens
Efficiency (Lumens Per Watt) 145 lm/W 156 lm/W 147 lm/W



Wattage 19 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,717 Lumens 2,926 Lumens 2,755 Lumens
Efficiency (Lumens Per Watt) 143 lm/W 154 lm/W 145 lm/W



Wattage 24 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,384 Lumens 3,648 Lumens 3,432 Lumens
Efficiency (Lumens Per Watt) 141 lm/W 152 lm/W 143 lm/W



Wattage 29 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,077 Lumens 4,379 Lumens 4,118 Lumens
Efficiency (Lumens Per Watt) 141 lm/W 151 lm/W 142 lm/W

Halco LED Selectable Volumetric Panel Specification Sheet

Halco LED Selectable Volumetric Panel Installation Instructions

Halco LED Selectable Volumetric Panel DLC Product Listing
