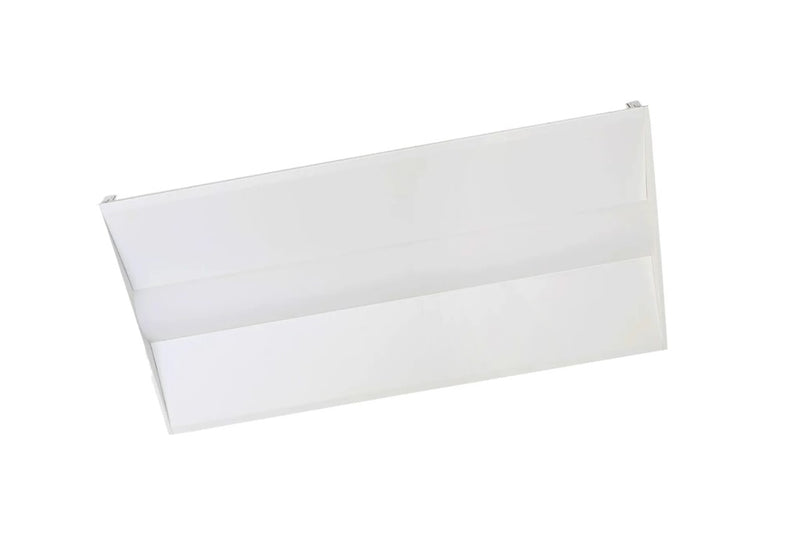

2x4 24/29/32/39 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81781
Halco Lighting Technologies 2x4 24/29/32/39 Watt LED Selectable Volumetric Panel 3500/4000/5000K Selectable

2x4 24/29/32/39 Watt LED Selectable Volumetric Panel 3500/4000/5000K

Halco Lighting Technologies SKU: 81781
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Halco Lighting Technologies' ProLED Select Volumetric Panel Series provides an architectural, modern design with increased visual comfort and functionality. This innovative product features both Wattage and CCT Selectability to make this one of the most versatile Volumetric Panels on the market.

This 2x4 LED Selectable Volumetric Panel by Halco, the 24FSVPL/8DU, is perfect for low depth ceiling cavities, making it ideal for offices and schools. It has a wattage selection of 24/29/32/39 watts and consumes 120-277 volts of energy with a power factor of 90%. The panel generates 3,384-5,889 lumens depending on the selected wattage and has a rated lumen maintenance of 50,000 hours. It comes in a choice of 3500K Bright White, 4000K Cool White, or 5000K Daylight color temperatures. These panels are a damp location rated and RoHS compliant replacement for 4x32WT8 equivalents. DLC listed, this 2x4 lay-in LED light panel has a 5 year limited warranty.

Manufacturer Halco Lighting Technologies
MPN 24FSVPL/8DU
SKU 81781
UPC 807154817818
Lighting Technology LED
Voltage 120-277 Volt
Dimmable Yes, 0-10V
Rated Life 50,000 Hours
CRI (Color Rendering Index) 82 CRI
Power Factor >0.9
Housing Die Cast Steel
Lens Diffused
Operating Temperature 20°C - 40°C
Dimensions 23 13/16" L x 47 11/16" W x 2 3/16" H
Certifications DLC Listed, cULus, FCC, RoHS Compliant
DLC Product ID PLMZ348VM7OK
Environment Damp Location, IC Rated
Warranty 5 Year Limited



Wattage 24 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,384 Lumens 3,768 Lumens 3,504 Lumens
Efficiency (Lumens Per Watt) 141 lm/W 157 lm/W 146 lm/W



Wattage 29 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,031 Lumens 4,495 Lumens 4,176 Lumens
Efficiency (Lumens Per Watt) 139 lm/W 155 lm/W 144 lm/W



Wattage 32 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 4,384 Lumens 4,896 Lumens 4,544 Lumens
Efficiency (Lumens Per Watt) 137 lm/W 153 lm/W 142 lm/W



Wattage 39 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 5,300 Lumens 5,889 Lumens 5,499 Lumens
Efficiency (Lumens Per Watt) 136 lm/W 151 lm/W 141 lm/W

Halco LED Selectable Volumetric Panel Specification Sheet

Halco LED Selectable Volumetric Panel Installation Instructions

Halco LED Selectable Volumetric Panel DLC Product Listing
