2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K

Westgate SKU: LPNG-2X4-MCTP4
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K Selectable
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K Selectable
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K
Westgate 2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K

2x4 30/40/50 Watt Selectable Backlit LED Flat Panel 3000/3500/4000/5000K

Westgate SKU: LPNG-2X4-MCTP4
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

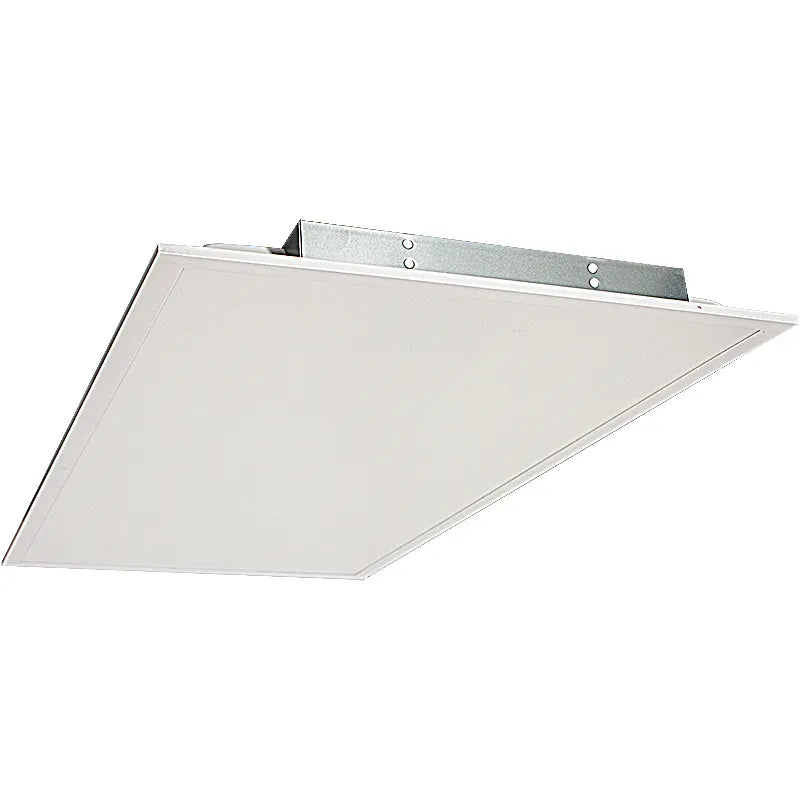

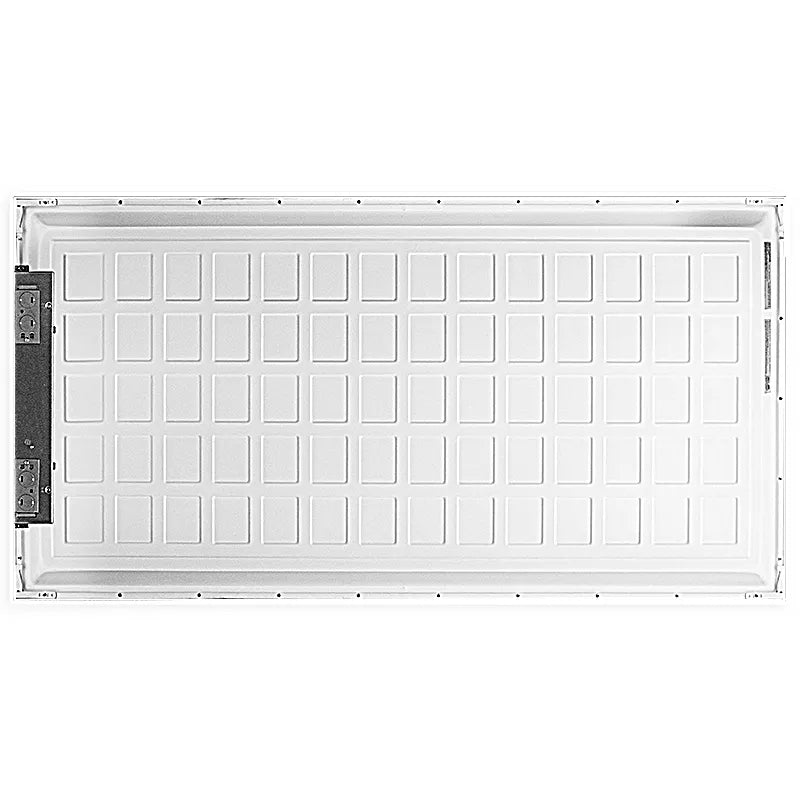

Introducing Westgate's LED Flat Panel, part number LPNG-2X4-MCTP4, from Westgate's LPNG Series. With 30/40/50 watts of power and generating 3,300/4,400/5,500 lumens, this fixture offers efficient lighting up to 110 lumens per watt. These flat panels are color selectable, allowing you to choose from 4 different color temperatures: 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. The selectable switch is located on the back of the fixture. This fixture offers a 5 year warranty and is rated for 50,000 hours.

This indoor commercial LED Blacklit panel light is ideal for hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities, and more.

Manufacturer Westgate
MPN LPNG-2X4-MCTP4
SKU LPNG-2X4-MCTP4
UPC 845060089950
Lighting Technology LED
Wattage 30/40/50 Watts
Voltage 120-277V
Operating Voltage 36VDC
Input Current 420/337/253mA
Frequency 50/60Hz
Color Temperature (Kelvin) 3000/3500/4000/5000K
Lumens 3,300/4,400/5,500 Lumens
Efficiency (Lumens Per Watt) 110 LPW
Dimmable Yes, 0-10V Dimming
Beam Angle 110 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Operating Temperature -68ºF to 104ºF
Dimensions 47.8” L x 23-4/5” H x 1-3/4” D
Certifications UL Listed
Warranty 5 Year Standard



Westgate Selectable Backlit LED Flat Panel Specification Sheet

Westgate Selectable Backlit LED Flat Panel Installation Instructions

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
