Keystone's Sentinel Wall Mount Cylinder light fixture provides architectural illumination for environments such as plazas, parks, and building exteriors. Changing beam angle and light output is simple, and with Keystone FormFit design technology, you also can change the exterior look in seconds. It’s an easy-to-use solution that can meet the needs of many jobs. For lighting versatility, Sentinel is your answer. With 3 reflectors, 3 directional options, 3 power outputs, and 3 CCT, it’s 81 SKUs in one product. Sentinel includes 3 different reflector sets with each fixture. Switching reflectors is a snap thanks to our tool-free optics. Just unscrew the cap to take out the pre-installed reflector and install one of the other two included to provide the beam angle you need. It takes seconds.

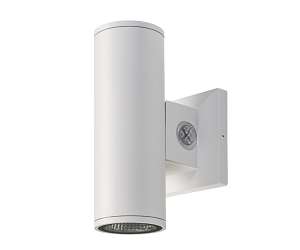

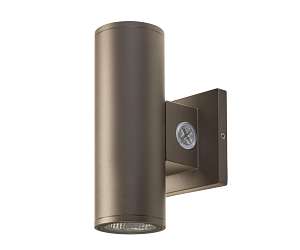

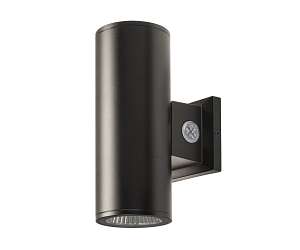

The Keystone Up Down Cylinder Wall Mount, part number KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM(-W, -B), consumes 6/8/10 watts of 120-277 volt of energy. They generate between 600-1,050 lumens (up to 98-105 LPW), and have a selectable color temperature of either 3000K warm white, 4000K cool white and 5000K daylight. With an IP65 rating, Sentinel is equipped to handle the outdoors. And with a dusk-to-dawn photocell, it only operates when darkness makes it necessary. This item has a 10 year limited warranty and is rated for 50,000 hours.

Compatible with the Keystone Square Shell: KT-CYLED-3A-SQ-1-KIT, KT-CYLED-3A-SQ-1-KIT-W, KT-CYLED-3A-SQ-1-KIT-B.

*Wattage and lumens based on full setting, if using indirect or direct light wattage and lumens are half the number listed. Please see specification sheet for specific numbers.

Keystone Up Down Cylinder Wall Mount Specification Sheet
