30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K

EiKO SKU: 13411
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K

30/45/60 Watt Slim Profile LED Wall Pack 3000/4000/5000K

EiKO SKU: 13411
  • DLC Listed, IP65
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!

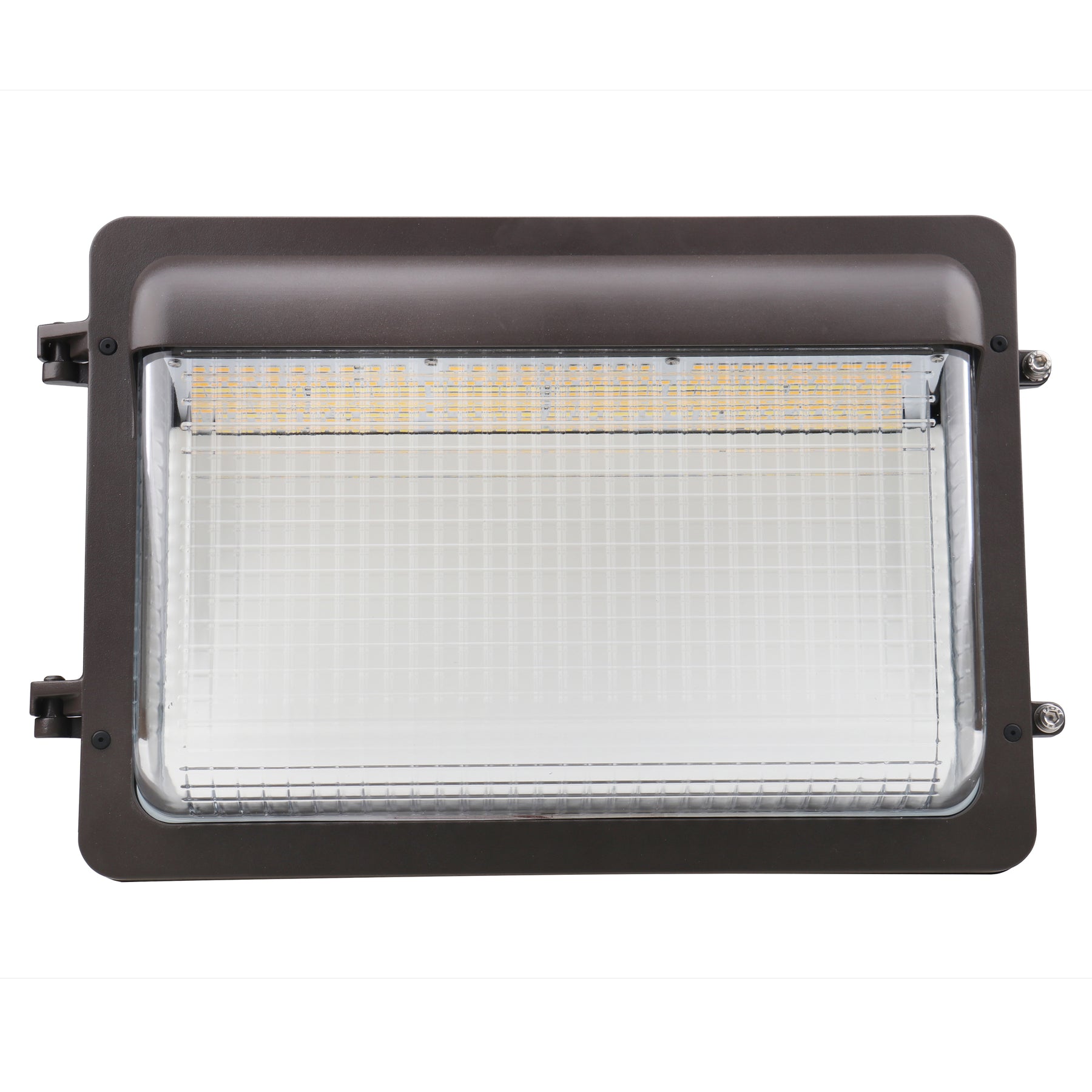

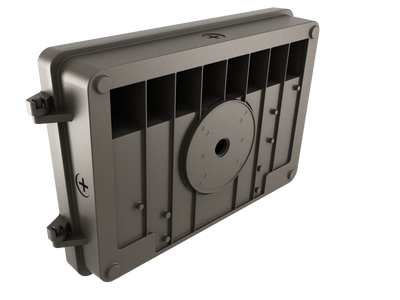

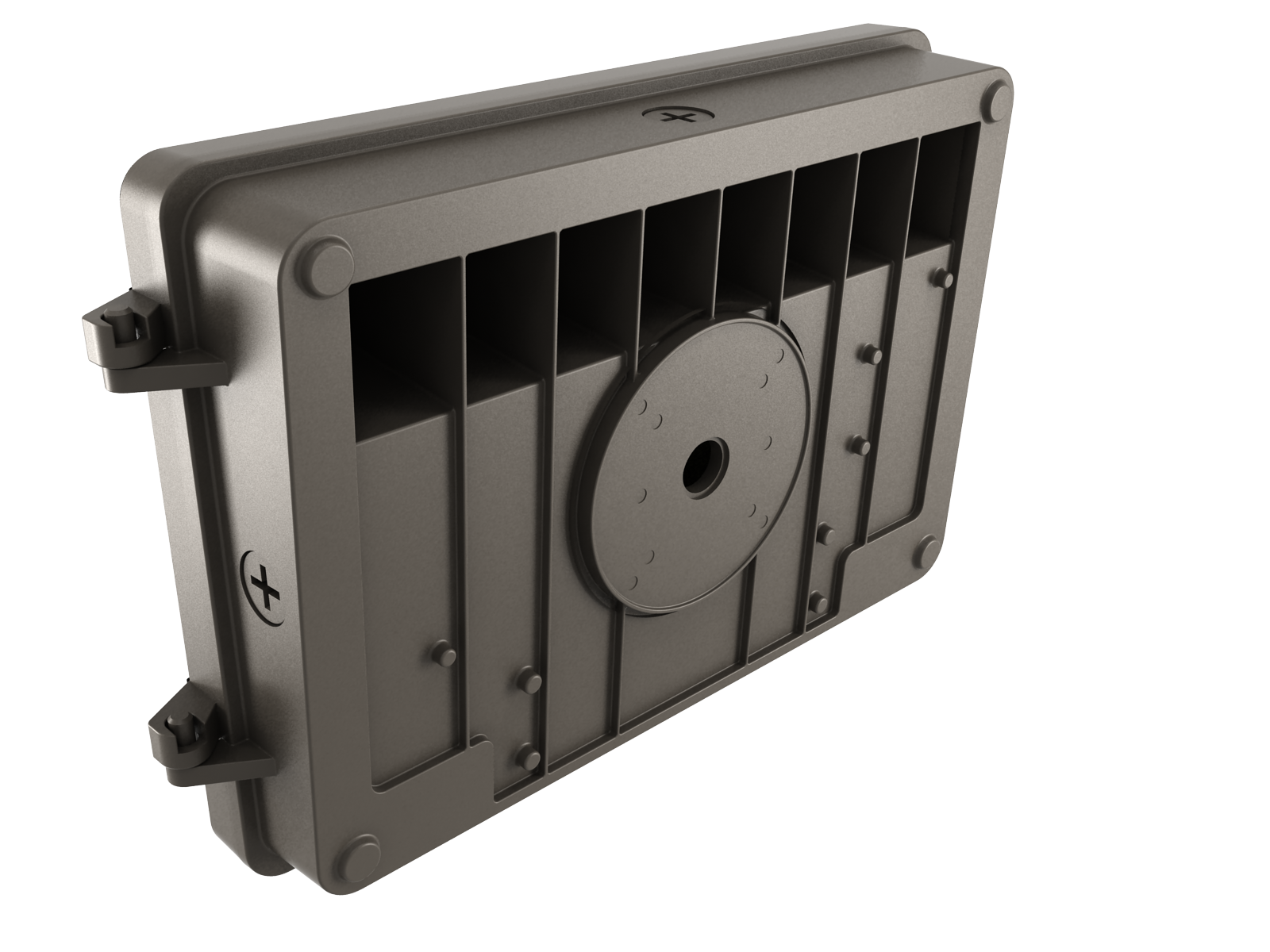

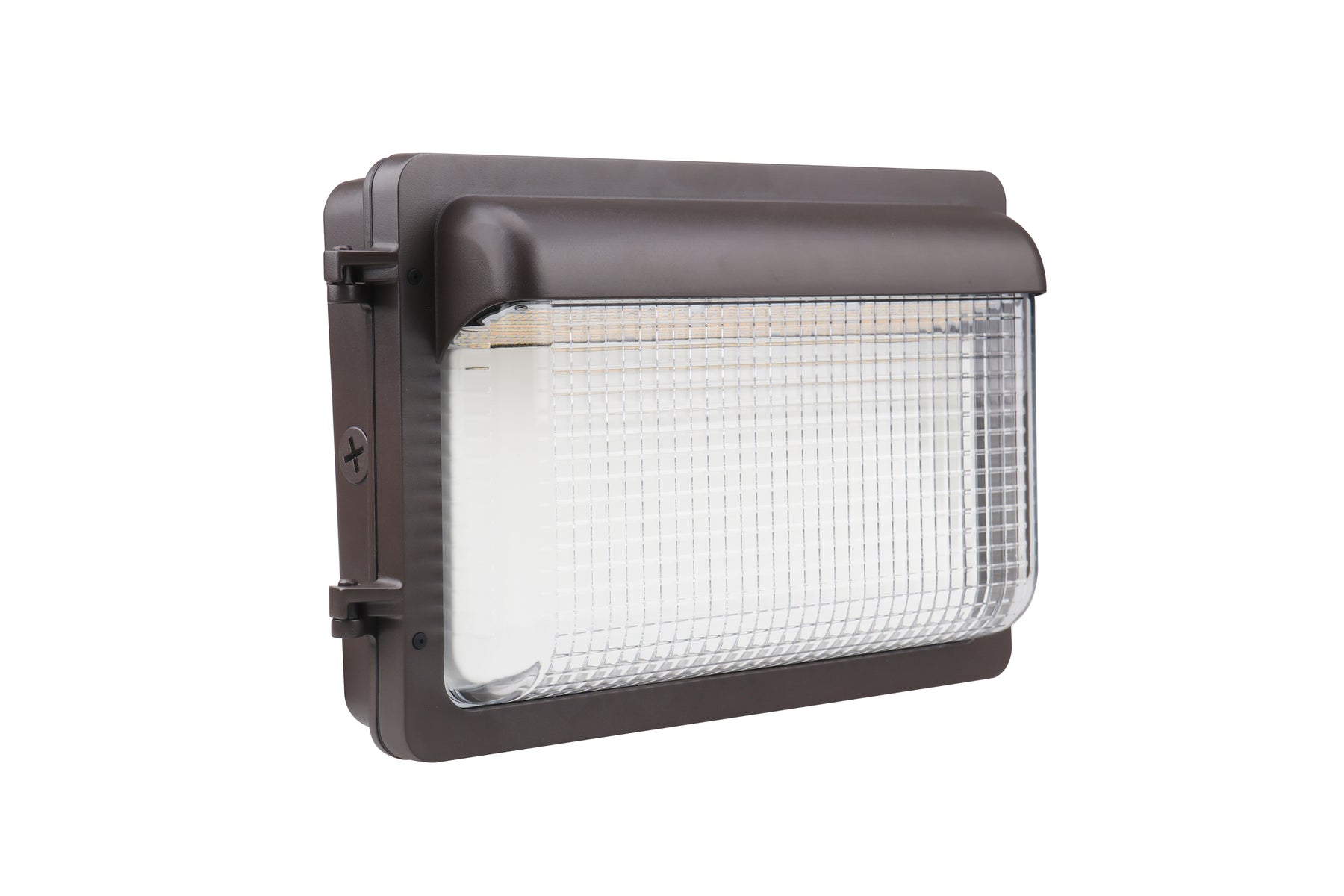

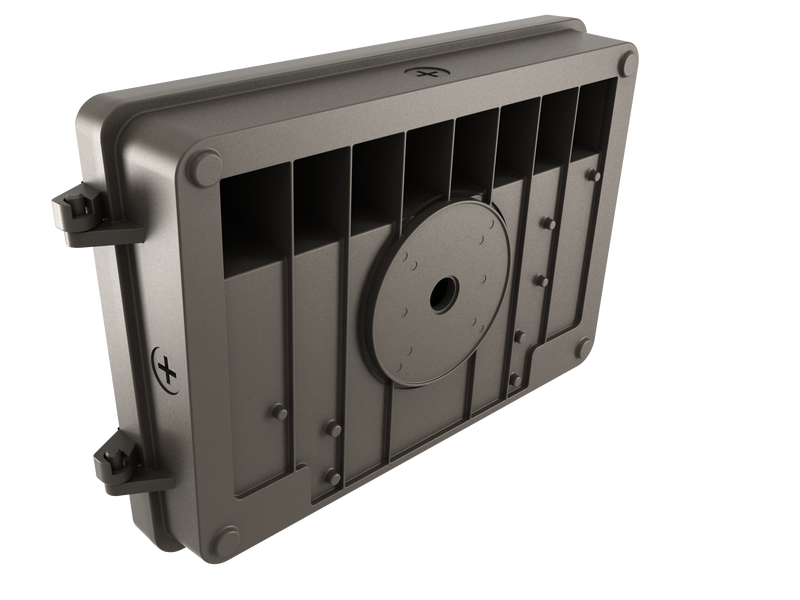

This EiKO Slim Profile LED Wall Pack is the perfect solution for any outdoor space. With integrated photocell for dusk-to-dawn operation and a slim profile design, this wall pack provides convenient and energy-efficient lighting. The hinged removable door and internal level make installation a breeze. Choose from three different wattage options and color temperatures to customize your lighting needs.

The EiKO LED Slim Wall Pack 13411 (SWP1-PS60-FCCT-U) is color selectable and can switch between three different color temperatures, including: 3000K Warm White, 4000K Cool White, and 5000K Daylight, via the switch located on the inside of the fixture. The slim wall pack operates on the universal voltage of 120-277V and is also wattage/lumen adjustable, able to switch between 30 watts, 45 watts, and 60 watts, ranging between 3,900-7,800 lumens respectively, and has a Color Rendering Index (CRI) of 80. The wall pack fixture is dimmable via 0-10v dimming and is suitable for wet locations. This DLC listed slim wall pack comes with a 5 year limited warranty.

Manufacturer EiKO
MPN SWP1-PS60-FCCT-U
SKU 13411
UPC 031293134110
Lighting Technology LED
Wattage 30/45/60 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 7,800/5,850/3,900 Lumens
Efficiency (Lumens Per Watt) 135 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Housing Die Cast Aluminum
Lens Glass
HID Equivalent 150 Watts
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Operating Temperature With Photocell -13°F to 122°F (-25°C to 50°C)
Dimensions 8.9" H x 13.8" W x 4.5" L
Certifications DLC Listed, IP65 Rating
DLC Product ID S-UHSIW1
Environment Wet Location
Warranty 5 Year Limited



EiKO Slim LED Wall Pack Specification Sheet

EiKO Slim LED Wall Pack Installation Instructions

EiKO Slim LED Wall Pack DLC Product Listing
