The FutureFit line of LED light engines are now more versatile and efficient with Power Select and Color Select. These innovative features allow the lumen output and color temperature to be selected with a simple switch. The linear LED modules with Aluma Groove are pre-mounted into an aluminum extension via a patented manufacturing method. These high efficiency LED light engines are equipped with Power Select switches for lumen output versatility.

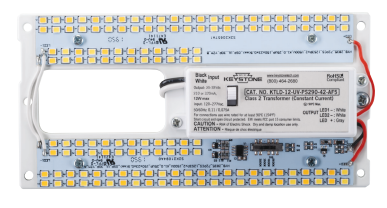

The Keystone 6 inch FutureFit engine comes in a selectable wattage of 8 and 12W. This LED rectangular light engine produces a selectable lumen output between 1,050-1,650 with a selectable color temperature of 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. The default setting on the light engine will be set at 12 Watts and 5000K Daylight. This wattage and color selectable engine operated on the universal voltage of 120-277V, making it a high-performance, cost-effective replacement for incandescent, CFL, and rectangular light sources in residential and commercial ceiling fixtures, including flush mount ceiling lights. This led module is 6.58" in overall length with a thickness of only 0.23".
FutureFit LED retrofit kits are pre-packaged with your desired LED module, a Keystone driver, and mounting accessories for easy installation either in the field or at the point of manufacture. With each LED light engine already safety tested and performance verified, upgrading to LED doesn’t get any easier than FutureFit LED retrofit kits. These products are perfect for retrofitting your fluorescent wall scones and ceiling luminaries. The LED retrofits are perfect for any application including but not limited to: residential home lighting, hotel applications, restaurant lighting, retail applications, parking garage lighters and more. The FutureFit LED kits carry a 10 year warranty.
| Manufacturer | Keystone Technologies |
| MPN | KT-RKIT12PS-6RP-8CSC |
| SKU | KT-RKIT12PS-6RP-8CSC |
| UPC | 843654128122 |
| Lighting Technology | LED |
| Voltage | 120-277V |
| Beam Angle | 120 Degrees |
| Rated Life | 50,000 Hours |
| CRI (Color Rendering Index) | >80 CRI |
| THD (Total Harmonic Distortion) | <20% |
| Operating Temperature | –20ºC/–4ºF to 45ºC/113ºF |
| Dimensions | 6.58" L x 3.27" W x 0.23" H |
| Certifications | RoHS, cULus, NLB, Energy Star |
| Environment | Damp Location |
| Warranty | 10 Year Limited |
| Wattage | 8 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 1,050 Lumens | 1,075 Lumens | 1,110 Lumens | 1,150 Lumens |
| Efficiency (Lumens Per Watt) | 131 lm/W | 134 lm/W | 139 lm/W | 144 lm/W |
| Wattage | 12 Watts | |||
| Color Temperature (Kelvin) | 3000K Warm White | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| Lumens | 1,550 Lumens | 1,575 Lumens | 1,600 Lumens | 1,650 Lumens |
| Efficiency (Lumens Per Watt) | 129 lm/W | 131 lm/W | 133 lm/W | 138 lm/W |
