6 Watt CCT Selectable Ballast Bypass LED PL Lamp GX23 2-Pin Base 2700/3000/3500/4000/5000K

MaxLite SKU: 104738
MaxLite 6 Watt CCT Selectable Ballast Bypass LED PL Lamp GX23 2-Pin Base 2700/3000/3500/4000/5000K Selectable

6 Watt CCT Selectable Ballast Bypass LED PL Lamp GX23 2-Pin Base 2700/3000/3500/4000/5000K

MaxLite SKU: 104738
/
Color Temp
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Designed with a CCT Selectable feature that goes from warm to cool white light according to preference, LED PL Lamps are the versatile, energy-saving replacement for 13- and 18-watt compact fluorescent bulbs (CFL). The lamps are available in four base types to easily retrofit into recessed cans, sconces and ceiling luminaires, including enclosed fixtures. A simple ballast bypass ensures maintenance-free operation of 50,000 hours or longer, providing long-term performance reliability and cost savings. MaxLite's LED PL Replacement Lamps are designed to replace inefficient compact fluorescent plug-in lamps (PLs) with easy installation. Available in 6 watt, 8 watt and 11 watts, with your choice of either an E26, GU24, GX23 (2 pin) or G24q (4 pin) base option. These LED retrofits require only a simple ballast bypass to ensure maintenance-free, energy-saving operation and higher performance. The lamps are backed by a five-year, limited warranty.

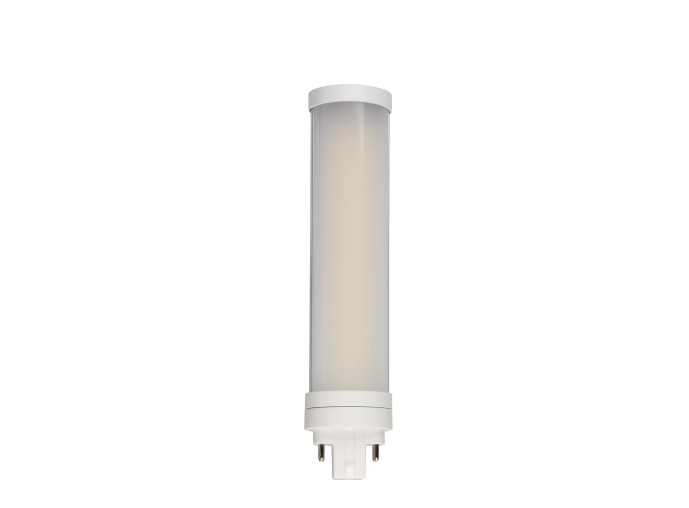

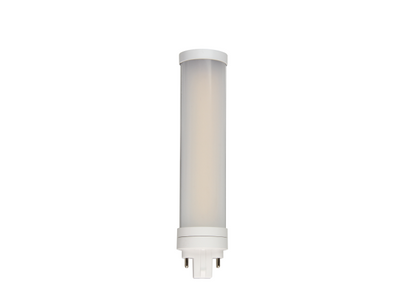

This item is the MaxLite 6PLGX23CS (104738), a GX23 2-Pin base bulb that consumes just 6 watts and will operate on any 120 to 277 volt system. Designed as an LED PL replacement for 13 watt fluorescent PL tubes, this non-dimmable LED will generate between 550-625 lumens with 5 CCT options: 2700K warm white, 3000K warm white, 3500K bright white, 4000K cool white and 5000K daylight. Installation requires that you bypass your existing ballast thus ensuring maintenance-free operation. As not all applications are alike, once you secure this LED PL retrofit to the socket, it will rotate up to 200 degrees, giving you the flexibility that you need to light what you what!
The physical dimensions of these GX23 2-Pin base ballast bypass LED PL lamps are 5.75" long by 1.38" wide. These color selectable LED PL retrofit lamps are suitable for totally enclosed luminaires as well as dry and damp locations. Operating temperatures are between -4 degrees Fahrenheit and +104 degrees Fahrenheit. RoHS Compliant and cULus Listed, they are rated for a long 50,000 hour lifetime and are backed by MaxLite's 5 year limited warranty.
Manufacturer MaxLite
Color Temperature (Kelvin) Selectable 2700K/3000K/35000K/4000K/5000K
MPN 6PLGX23CS
SKU 104738
UPC 767627989117
Lumens 550-625 Lumens
Efficiency (Lumens Per Watt) 92-104 lm/w
Beam Angle 120 Degrees
Lighting Technology LED
Wattage 6 Watts
Voltage 120-277 Volt
Bulb Shape PL
Base 2-Pin GX23
Ballast Operation Type B Ballast Bypass
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80+
Fluorescent Equivalent 13 Watt
Operating Temperature -4° F to 104° F
Dimensions 1.38" Diameter x 5.75" MOL
Certifications UL Listed, FCC
Environment Damp Locations, Enclosed Fixture Rated
Warranty 5 Year Warranty



MaxLite CCT Selectable Ballast Bypass LED PL Lamp Specification Sheet

MaxLite CCT Selectable Ballast Bypass LED PL Lamp Installation Instructions
