60/70/80 Watt LED Compact Open Face Wall Pack 3000/4000/5000K

MaxLite SKU: 111240
MaxLite 60/70/80 Watt LED Compact Open Face Wall Pack 3000/4000/5000K

60/70/80 Watt LED Compact Open Face Wall Pack 3000/4000/5000K

MaxLite SKU: 111240
  • DLC Listed, IP65
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

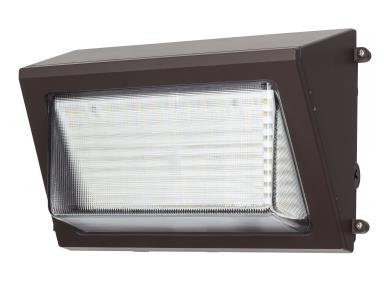

The WallMax Compact Open Face Wall Pack is a smaller version of our standard WallMax Open Face Wall Pack. Like its larger sibling, it offers many field-selectable CCT and wattage options. For controls it includes a photocell standard with an on/off switch to empower the customer with the option to engage the dusk to dawn feature. The WallMax Compact Open Face Wall Pack is a versatile low cost solution for general wall lighting applications. It features wattage and CCT selectability as well as an intergral photocell that can be turned on or off.

The MaxLite WCF80U-WCSBPC LED open face wall pack consumes 60/70/80 watts of 120-277 volt energy and the driver has a power factor of 90%. The WCF80U-WCSBPC (111240) generates between 11,940-12,840 lumens (as listed by the DLC QPL List) - that's an efficacy of 144-160 lm/W with a rated lumen maintenance of 100,000 hours based on L70 lumen depreciation. This LED fixture comes with a selectable color temperature of 3000K warm white, 4000K cool white and 5000K daylight. This DLC Premium Listed MaxLite LED wall pack carries a 5 Year Standard Warranty with labor allowance and a CRI of 80.

Manufacturer MaxLite
MPN WCF80U-WCSBPC
SKU 111240
UPC 767627059452
Lighting Technology LED
Wattage 60/70/80 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 11,940-12,840 Lumens
Efficiency (Lumens Per Watt) 144-160 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.90
Finish Color Dark Bronze
Finish Corrosion Resistant Polyester Powder Paint
Housing Die Cast Aluminum
Lens Borosilicate Glass
Metal Halide Equivalent 320/350 Watts
Operating Temperature -40°F (-30°C) to 122°F (40°C)
Dimensions 7.48" H x 14.60" L x 7.28" W
Certifications DLC Listed, IP65, FCC Compliant
DLC Product ID S-6NXQTV
Environment Wet Location
Warranty 5 Year Standard

MaxLite LED Compact Open Face Wall Pack Specification Sheet

MaxLite LED Compact Open Face Wall Pack Installation Instructions

MaxLite LED Compact Open Face Wall Pack DLC Product Listing

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
