The EiKO Volumetric Troffer LED light fixtures are LED replacements for fluorescent troffers in new or remodel construction. The VLR1 is a cost-effective troffer with smooth, dimmable (0-10V standard) light output from ceiling to floor these fixtures are ideal solutions in offices, schools, hospitals, government buildings, retailers and other commercial settings.

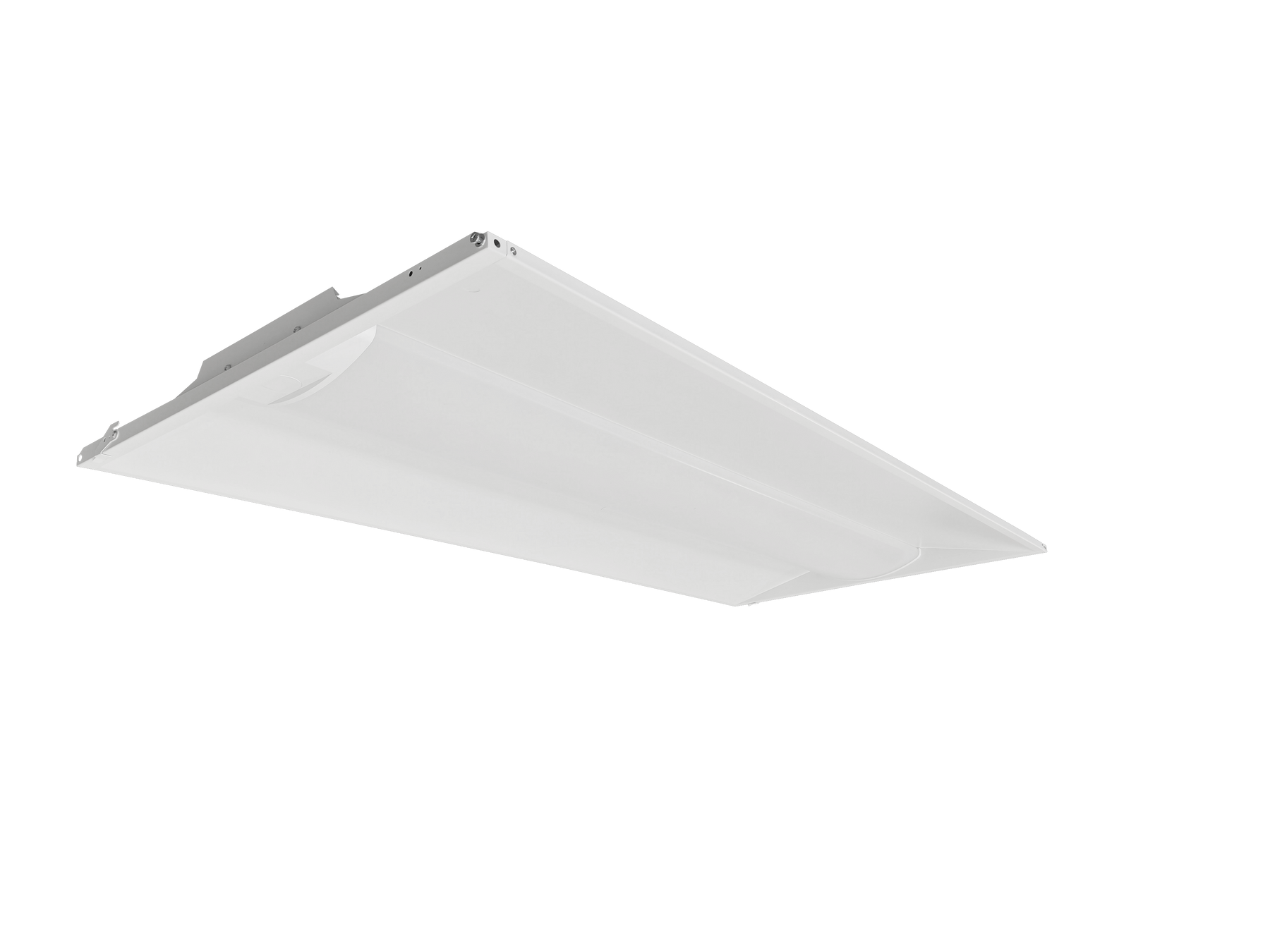

This item is the EiKO VLR1-24PS90-FCCT-H 2x4 LED Volumetric troffer. Each 2x4 LED panel is ideal for low depth ceiling cavities - whether in an office or school. The EiKO VLR1-24PS90-FCCT-H 2x4 recessed troffer is wattage selectable and consumes 65/75/90 watts of 120-347 volt energy and the driver has a power factor 90%. They generate 9,100/10,500/12,600 lumens, depending on the wattage selected, a rated lumen maintenance of 100,000 hours and is color selectable: 3500K bright white, 4000K cool white and 5000K daylight. These 2x4 lay-in LED light panels replace 6x T8 and 4x T5 florescent equivalents and are DLC Listed, FCC, UL Listed and RoHS compliant.
The EiKO LED Volumetric Troffer has a white powered-coated steel construction. It comes with a non-yellowing PMMA light diffusing acrylic lens that provides even illumination and visual comfort. The VLR1-24PS90-FCCT-H comes with a 5 year limited warranty and an operating temperature of -40°F to 122°F (-40°C to 50°C).
Manufacturer | EiKO |
MPN | VLR1-24PS90-FCCT-H |
SKU | 13790 |
UPC | 031293137906 |
Lighting Technology | LED |
Wattage | 65/75/90 Watts |
Voltage | 120-347V |
Color Temperature (Kelvin) | 3500/4000/5000K |
Lumens | 9,100/10,500/12,600 Lumens |
Efficiency (Lumens Per Watt) | 140 LPW |
Dimmable | 0-10V Dimming |
Rated Life | 100,000 Hours |
CRI (Color Rendering Index) | 80 CRI |
Power Factor | >0.9 |
THD (Total Harmonic Distortion) | <20% |
Housing | Steel |
Lens | Acrylic |
Fluorescent Equivalent | 6xT8 and 4xT5 |
Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
Dimensions | 23.9" x 47.8" x 3.1" |
Certifications | DLC Listed, FCC Compliant, RoHS Compliant |
DLC Product ID | S-X69WBF |
Environment | Damp Location |
Warranty | 5 Year Limited |
