80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K

EiKO SKU: 13410
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K
EiKO 80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K

80/100/120 Watt Slim Profile LED Wall Pack 3000/4000/5000K

EiKO SKU: 13410
  • DLC Listed, IP65
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

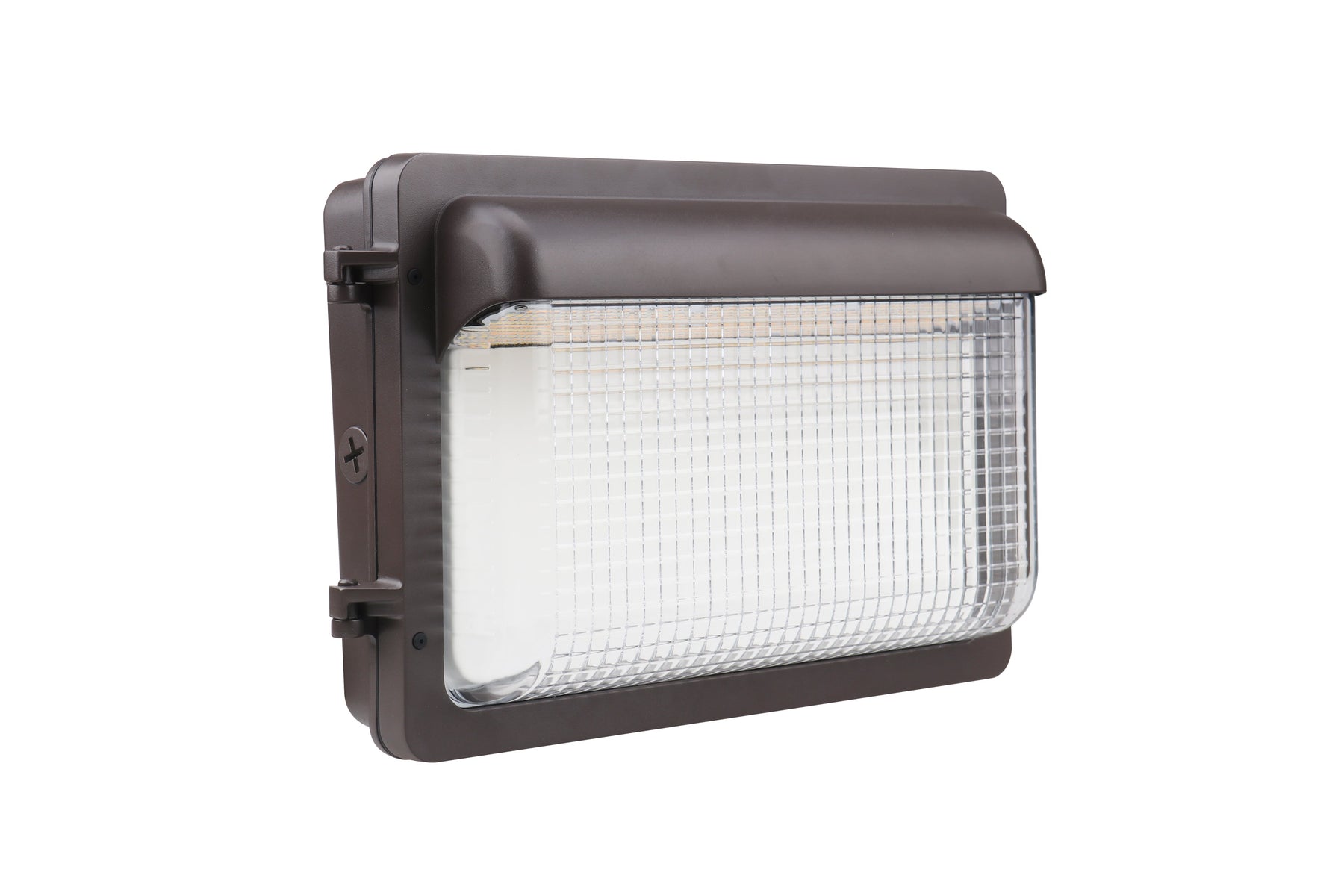

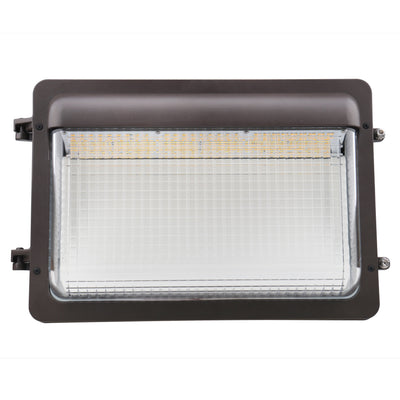

This EiKO Slim Profile LED Wall Pack is the perfect solution for any outdoor space. With integrated photocell for dusk-to-dawn operation and a slim profile design, this wall pack provides convenient and energy-efficient lighting. The hinged removable door and internal level make installation a breeze. Choose from three different wattage options and color temperatures to customize your lighting needs.

The EiKO LED Slim Wall Pack 13410 (SWP1-PS120-FCCT-U) is color selectable and can switch between three different color temperatures, including: 3000K Warm White, 4000K Cool White, and 5000K Daylight, via the switch located on the inside of the fixture. The slim wall pack operates on the universal voltage of 120-277V and is also wattage/lumen adjustable, able to switch between 80 watts, 100 watts, and 120 watts, ranging between 10,800-16,200 lumens respectively, and has a Color Rendering Index (CRI) of 80. The wall pack fixture is dimmable via 0-10v dimming and is suitable for wet locations. This DLC listed slim wall pack comes with a 5 year limited warranty.

Manufacturer EiKO
MPN SWP1-PS120-FCCT-U
SKU 13410
UPC 031293134103
Lighting Technology LED
Wattage 80/100/120 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 10,800/13,500/16,200 Lumens
Efficiency (Lumens Per Watt) 135 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 100,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Housing Die Cast Aluminum
Lens Glass
HID Equivalent 400 Watts
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Operating Temperature With Photocell -13°F to 122°F (-25°C to 50°C)
Dimensions 12.7" H x 17.8" W x 4.5" L
Certifications DLC Listed, IP65 Rating
DLC Product ID S-FHM0N3
Environment Wet Location
Warranty 5 Year Limited



EiKO Slim LED Wall Pack Specification Sheet

EiKO Slim LED Wall Pack Installation Instructions

EiKO Slim LED Wall Pack DLC Product Listing

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
