90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

EiKO SKU: 13666
EiKO 90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

90/105/120 Watt Traditional LED Wall Pack 3000/4000/5000K

EiKO SKU: 13666
  • DLC Listed, IP65
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

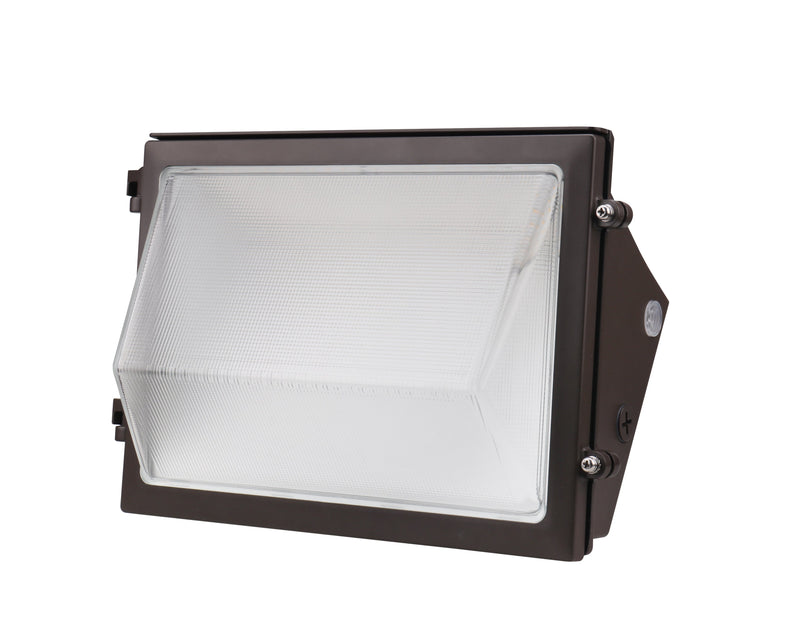

The EiKO Traditional LED Wall Pack provides a sleek and modern aesthetic while maintaining a similar footprint to traditional lighting options. With (4) 1/2 inch knockouts, this versatile wall mount can be used with or without a junction box. The integrated photocell allows for automatic operation from dusk to dawn, and the hinged removable door housing makes for easy installation.

The EiKO LED Traditional Wall Pack 13666 (TWP1-PS120-FCCT-U) is color selectable and can switch between three different color temperatures, including: 3000K Warm White, 4000K Cool White, and 5000K Daylight, via the switch located on the inside of the fixture. The traditional wall pack operates on the universal voltage of 120-277V and is also wattage/lumen adjustable, able to switch between 90 watts, 105 watts, and 120 watts, ranging between 12,150-16,200 lumens respectively, and has a Color Rendering Index (CRI) of 80. The wall pack fixture is dimmable via 0-10v dimming and is suitable for wet locations. DLC listed, this wall pack comes with a 5 year limited warranty.

Manufacturer EiKO
MPN TWP1-PS120-FCCT-U
SKU 13666
UPC 031293136664
Lighting Technology LED
Wattage 90/105/120 Watts
Voltage 120-277V
Color Temperature (Kelvin) 3000/4000/5000K
Lumens 12,150/14,175/16,200 Lumens
Efficiency (Lumens Per Watt) 135 LPW
Dimmable Yes, 0-10V Dimming
Rated Life 54,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
THD (Total Harmonic Distortion) <20%
Finish Color Bronze
Housing Die Cast Aluminum
Lens Glass
HID Equivalent 400 Watts
Operating Temperature -40°F to 122°F (-40°C to 50°C)
Operating Temperature With Photocell -13°F to 122°F (-25°C to 50°C)
Dimensions 9.5" H x 14.5" W x 6.5" L
Certifications DLC Listed, IP65 Rating
DLC Product ID S-V8SK5D
Environment Wet Location
Warranty 5 Year Limited



EiKO Traditional LED Wall Pack Specification Sheet

EiKO Traditional LED Wall Pack Installation Instructions

EiKO Traditional LED Wall Pack DLC Product Listing
