Name: 90 Watt Linear LED 120-277V High Bay Light Fixture
Brand: EiKO
SKU: 13399
Price: 130.78 USD
Availability: InStock

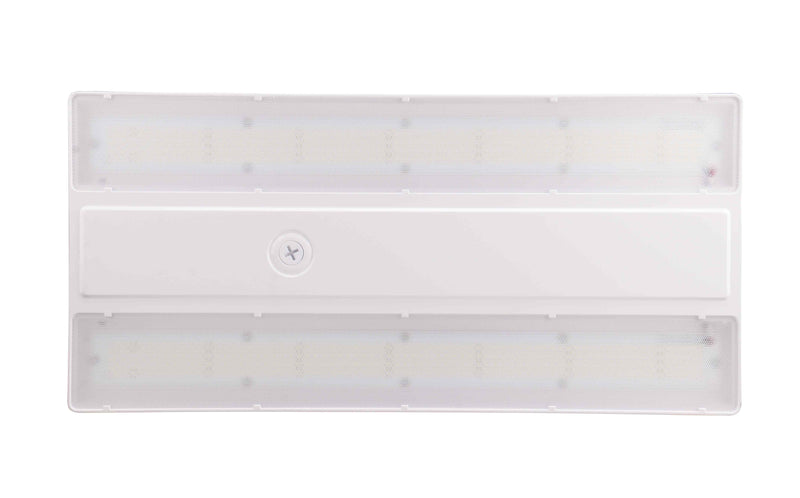

EiKO 90 Watt Linear LED 120-277V High Bay Light Fixture

DLC Listed

Price

Color Temp

4000K Cool White

5000K Daylight

Quantity

Please call to confirm availability.

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":45553071456500,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"13399","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"90 Watt Linear LED 120-277V High Bay Light Fixture - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":13078,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"031293133991","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45553071489268,"title":"5000K Daylight","option1":"5000K Daylight","option2":null,"option3":null,"sku":"13402","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"90 Watt Linear LED 120-277V High Bay Light Fixture - 5000K Daylight","public_title":"5000K Daylight","options":["5000K Daylight"],"price":13078,"weight":2722,"compare_at_price":null,"inventory_management":"shopify","barcode":"031293134028","requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

The EiKO LH1-090-(XX)-U LED Linear High Bay shop light provides a lumen package that is ideal for replacing HID and linear fluorescent work shop light fixtures. This economical fixture offers high performance and long 100,000 life, excellent color rendering - greater than 80 CRI - and it is even UL Listed for Damp Locations. The universal 120-277 volt, 0-10V dimmable, LED driver offers typical applications in warehouses, manufacturing plants, distribution centers, grocery stores, cold storage, commercial and recreational facilities the flexibility required in today's demanding energy efficient environment.

The LH1-090-(XX)-U consumes 90 watts, delivers an amazing 13,500 lumens of either 4000K or 5000K, 80 CRI light (that's an impressive efficacy of 150 lumens per watt). Each LED high bay fixture measures 11" wide by 23" long by 2-3/16 tall. Each EiKO LH1-090-(XX)-U has a minimum starting temperature of -40 degrees Fahrenheit, a maximum operating temperature of 122 degrees Fahrenheit and they carry a 5-year limited warranty.

Specifications

Manufacturer	EiKO
Color Temperature (Kelvin)	4000K Cool White	5000K Daylight
MPN	LH1-090-40-U	LH1-090-50-U
SKU	13399	13402
UPC	031293133991	031293134028
DLC Product ID	S-36ZH75	S-CVWP6M
Lighting Technology	LED
Wattage	90 Watts
Voltage	120-277V
Lumens	13,500 Lumens
Efficiency (Lumens Per Watt)	150 LPW
Dimmable	Yes, 0-10V Dimming
Beam Angle	90 Degrees
Rated Life	100,000 Hours
CRI (Color Rendering Index)	80 CRI
Power Factor	>0.9
THD (Total Harmonic Distortion)	<20%
Housing	Die Cast Aluminum
Lens	Polycarbonate
Fluorescent Equivalent	4xT8/T12
HID Equivalent	250 Watts
Operating Temperature	-40°F to 122°F (-40°C to 50°C)
Dimensions	11" x 23" x 2-3/16"
Certifications	DLC Listed, FCC Compliant
Environment	Damp Location
Warranty	5 Year Limited

Documents

EiKO Linear LED High Bay Light Fixture Specification Sheet

EiKO Linear LED High Bay Light Fixture Installation Instructions
