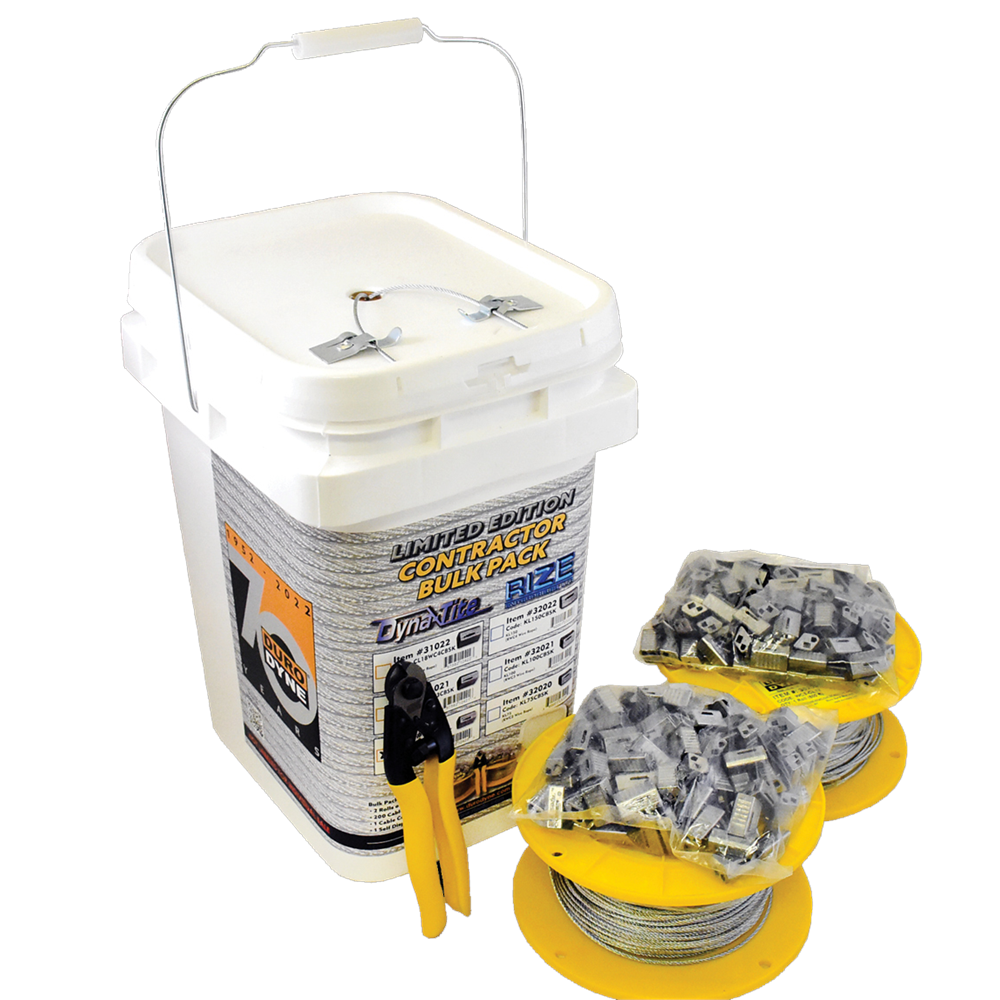

Kit Includes:
2 - 500ft Roll of WC4 (RWC4) Cable
200 - CL18-WC4 (KL150) Kwik-Locs
1 - Self Dispensing Lid
1 - Cable Cutter
The high quality alternative to Gripple or Caddy Speed Link, the Duro Dyne Kwik Loc (also called Kwik Lock or Quick Lock) cable lock is a fast and reliable cable suspension system for fluorescent lighting, HIDs, sound systems, cable trays, fan units or seismic bracing. Cable locks provide a fast, strong and lightweight cable hanger solution for hanging electrical and mechanical products. Its time saving qualities have been shown to increase productivity by up to six times compared to traditional hanging methods. The installation process is straight forward and requires no specialized training. The Duro Dyne Kwik Loc wire rope cable fixture hanger kit also offers the installer the flexibility to position the hangers vertically or at an angle to the suspended object.
All Kwik-Locs have been tested, and are UL Listed to UL 1598 and are listed under file number E246601. This Duro Dyne CL18WC4CBSK (Rize KL150CBSK) cable hanger kit includes (200) CL18-WC4 (KL150) Kwik-Loc cable locks. Introduced to work on most light hanging applications, the CL18-WC4 (KL150) can be used to hang fluorescent/LED fixtures, speakers, busbar and cable tray, to name a few. The CL18-WC4 (KL150) has a one piece die cast Zinc type Zamac 5 housing combining major anti-corrosion properties with strength and consistent manufacturing quality. The key components to this revolutionary cable lock are the internal locking wedges. An oil impregnated, sintered steel locking wedge is seated in each of the two channels.
Both wedges incorporate a release pin for easy adjustment. Each wedge makes contact with the wire rope using serrated teeth. These teeth press onto the wire rope and spread the load across the length of the wedge, maximizing grip strength. Each spring within each CL18-WC4 (KL150) is manufactured of type 302 S26 stainless steel. Now you see why we call this a quality, revolutionary product!
Also included in this contractor kit is 2 (500) feet of 1/8 inch diameter 7x7 strand galvanized steel. The galvanized steel wire rope, supplied by Duro Dyne, is manufactured to exacting standards and statistically tested to verify the breaking strength. A high quality wire rope cable cutter is included and includes a self dispensing lid on top of the 5 gallon bucket.
MANUFACTURER'S RECOMMENDATIONS:
DO NOT USE FOR LOADS OUTSIDE THE STATED RANGE OF THE PRODUCT. DO NOT EXCEED THE SAFE WORKING LOAD OF THE PRODUCT. DO NOT USE ON COATED WIRE ROPE. DO NOT APPLY PAINT OR OTHER COATING. DO NOT APPLY LUBRICANT. DO NOT USE FOR LIFTING. KEEP THE PRODUCT CLEAN AND FREE FROM DIRT. REMOVE DAMAGED CABLE END PRIOR TO INSERTING INTO THE CL23. DO NOT USE IN CHLORINATED ATMOSPHERES. CABLE LOCKS ARE TO BE USED ON STATIC LOAD APPLICATIONS ONLY.
