Magnitude Lighting has been transforming LED lighting with advanced LED drivers since 2008. With their breakthrough technologies, they are able to yield the highest efficiency ratings in the industry. Headquartered in Orange County, Magnitude Lighting have been able to maintain advanced manufacturing facilities and customer support facilities in North America in order to deliver the highest product quality, fastest fulfillment, and superior customer support. We recommend you try out Magnitude Lighting LED drivers today - you will not be disappointed.

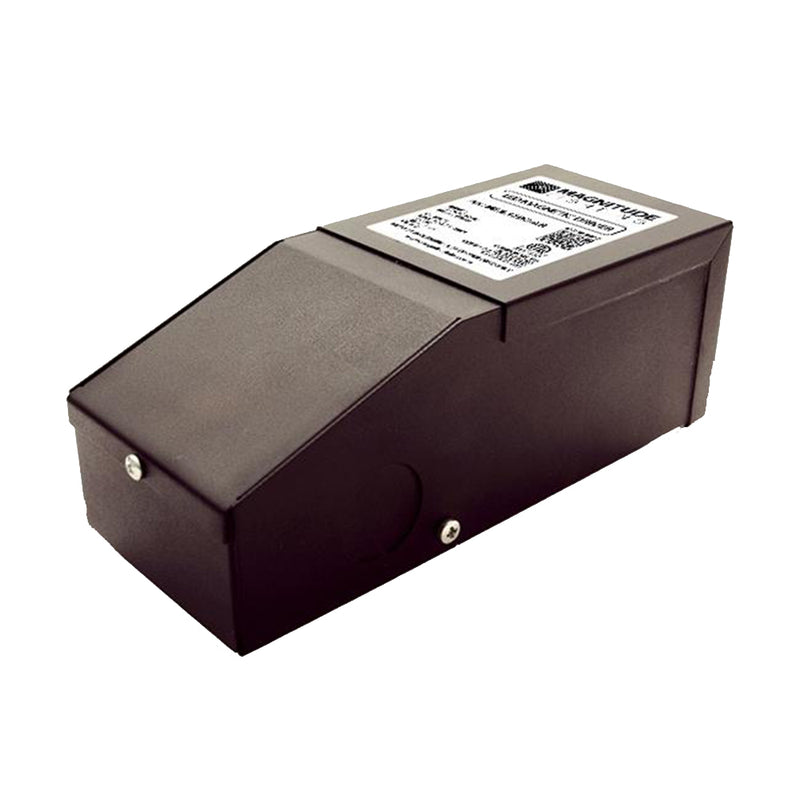

Magnitude Lighting brings you their magnetic dimmable 24V LED Drivers. These LED Drivers are the most compact LED driver on the market with a magnetic transformer core. This driver is dimmable and encased in a coated metal box that includes knock-outs, to enable easy installation that complies with electrical code requirements. These drivers have a wide range of wattages and current outputs to meet numerous applications. The Magnitude magnetic LED drivers are compact in size, allowing them to fit into your application.
This item is the Magnitude Lighting low voltage power supply part number M40L24DC-AR. The input voltage is 120 volt and is equipped with two auto-reset breakers, one on the input and one on the output, which protect both the load and the driver. The output current is 0.85A output. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 12V. This LED Driver is dimmable with any standard MLV/incandescent TRIAC - (Leading edge) dimmer switch. It is NEMA 3R rated and ETL Listed, all while being certified to the CSA Standard.
| Manufacturer | Magnitude Lighting |
| MPN | M40L24DC-AR |
| SKU | M40L24DC-AR |
| UPC | 810020791440 |
| Lighting Technology | LED |
| Driver | Constant Voltage |
| Output Current | 0.85A (850mA) |
| Input Current | 0.195A |
| Output Wattage | 40 Watt |
| Input Voltage | 120VAC |
| Output Voltage | 24VDC |
| Frequency | 50/60Hz |
| Efficiency | 89% |
| Dimming | Phase Dimming |
| Operating Temperature | -30°C to 45°C |
| Dimensions | 5.6" L x 2.14" W x 2" H |
| Certifications | Class 2, RoHS Compliant |
| Environment | Dry and Damp Location |
| Warranty | 5 Year |
