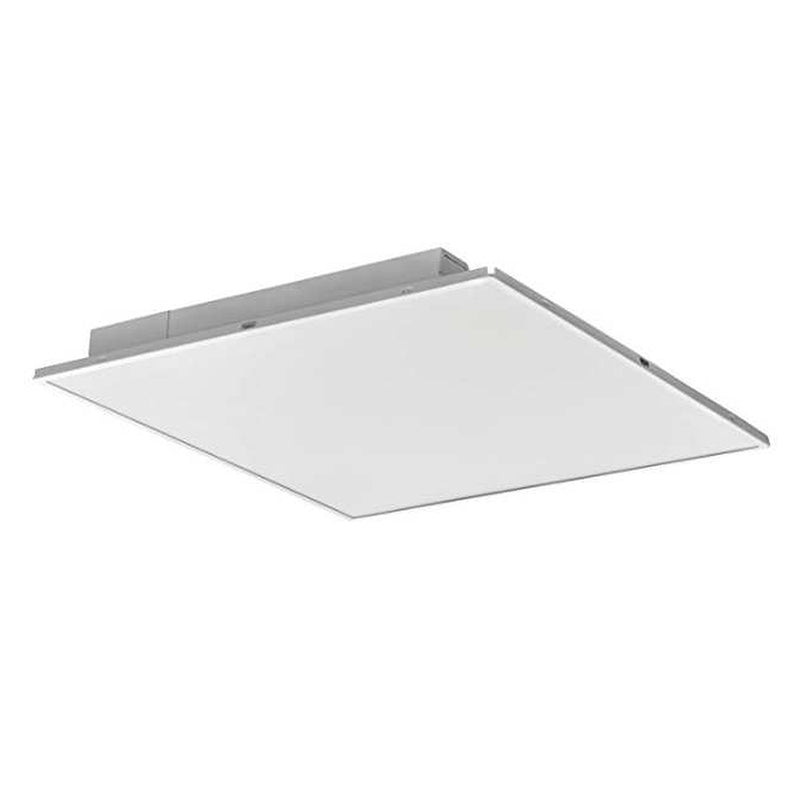

DIRECT REPLACEMENT: 2x2 20/30/35W Selectable BackLit LED Dimmable Flat Panel 3500/4000/5000K
Halco Lighting Technologies continues to expand their ProLED line of incredible LED products. The ProLED Color Selectable Backlit Panel Series replaces 9 products with just 3, allowing the user to select from 3 different color temperatures in either 1x4, 2x2, or 2x4 size. Reducing the need to carry multiple products, ProLED Select Backlit panels are lightweight and feature a low-profile side mount driver design to save space during shipping and installation. Selecting the perfect look and feel for your application using a simple switch on the driver enclosure couldn't be any easier. These LED panels provide a reliable performance in a budget-friendly design.
This is the Halco ProLED 10364 (22FSBPL/30U8D). This lightweight 2x2 LED Flat Panel consumes just 30 watts of 120-277 volt energy and the driver has a power factor of 90%. The 10364 generates an average of 3,000 lumens - that's an efficacy of 100 lm/W with a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation. This low profile designed LED flat panel can change between 3500K Bright White, 4000K Cool White, and 5000K Daylight with a simple toggle switch located on the back of the fixture, and has a CRI of at least 80. This 2x2 flat light fixture is designed to be compatible with most standard 0-10V dimming controls. All Halco's LED Flat Panel fixtures carry a 5 Year Warranty and are rated for Damp locations.
Manufacturer | Halco Lighting Technologies |
MPN | 22FSBPL/30U8D |
SKU | 10364 |
UPC | 807154103645 |
Lighting Technology | LED |
Wattage | 30 Watt |
Voltage | Universal 120-277V |
Color Temperature (Kelvin) | Selectable 3500/4000/5000K |
Lumens | 3,000 Lumens |
Efficiency (Lumens Per Watt) | 100 LPW |
Dimmable | Yes 0-10V |
Rated Life | 50,000 Hours L70 |
CRI (Color Rendering Index) | 80+ |
Power Factor | <0.9 |
Housing | Aluminum |
Operating Temperature | -20° C - 40° C |
Dimensions | 23.74" x 23.74" x 1.5" |
Certifications | IP40, ETL, RoHS Compliant |
Environment | Damp Location, IC Rated |
Warranty | 5 Year Standard |
