CFLEX-54W-1400-C-SL 54 Watt LED 250-1400mA Programmable Constant Current Driver

Magnitude Lighting SKU: CFLEX-54W-1400-C-SL
Magnitude Lighting CFLEX-54W-1400-C-SL 54 Watt LED 250-1400mA Programmable Constant Current Driver

CFLEX-54W-1400-C-SL 54 Watt LED 250-1400mA Programmable Constant Current Driver

Magnitude Lighting SKU: CFLEX-54W-1400-C-SL
  • Title 24 Compliant
/
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

LED Driver Cross Reference:
Universal D700C20UNVPW-L
Keystone KTLD-20-UV-SC730-56-VDIM-AF4 /USB
Fulham T2C1UNV150P-40L
Fulham T1M1UNV210P-60L
Magnitude AFLEX-60W-1400-S-L

Magnitude CFLEX Compact is a simple and intuitive programmable LED driver suitable for virtually any installation scenario. Dimmable down to 1% with dim-to-off functionality​, the Magnitude CFLEX Compact is available pre-programmed for high volume installations or can be customized with the optional stand-alone two-wire programming tool that does not require a PC or cellphone interface. Replacement-ready and Class P Listed, this compact and easy-to-install LED driver saves time, reduces SKUs and is ideal for OEM applications.

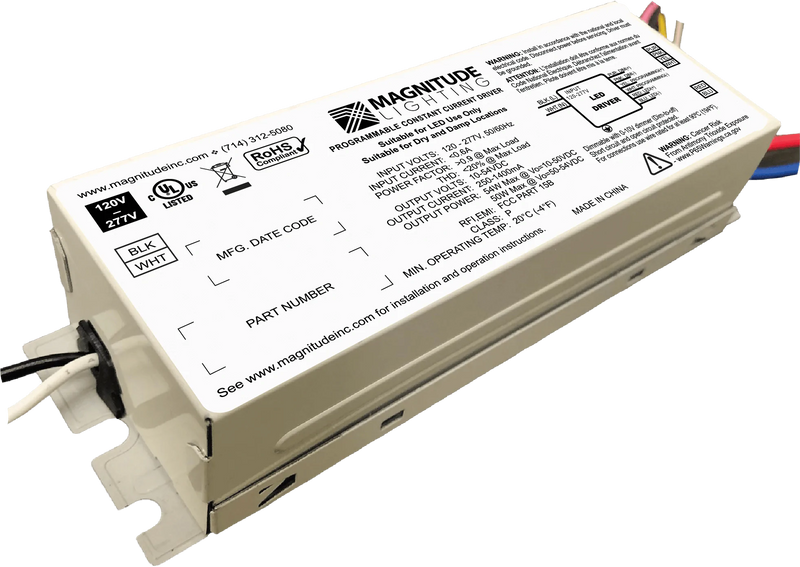

The CFLEX-54W-1400-C-SL is a 54 watt LED electronic driver with a wide voltage output range of 10V-54V and wide current output range of 250-1400mA. It features a programmable constant current, steel housing, side leads connector style, four half-hole flange mounting, dry/damp location rating, and a 5 year warranty. Meets Title 24/JA8 requirements.

Manufacturer Magnitude Lighting
MPN CFLEX-54W-1400-C-SL
SKU CFLEX-54W-1400-C-SL
Lighting Technology LED
Wattage 54 Watts
Voltage 120-277VAC ± 10%
Voltage Output 10V-54VDC
Current Output 250-1400mA
Output Power 54W @ <50VDC, 50W @ >50VDC
Frequency 50/60Hz
Efficiency >86% @ 120V @ 60W
Dimmable 0-10V Dimming
Rated Life 50,000 Hours at 75°C
Power Factor >0.9 @ 60W
Finish Color White
Housing Steel
Mounting Four half-hole flange mounts
Operating Temperature -25°C to 40°C
Dimensions 5.43" L x 1.81" W x 1.17" H
Environment Dry and Damp Locations
Certifications UL 8750 Class 2, Class P, Title 24 Compliant
Warranty 5 Year Standard

Magnitude CFLEX Compact Programmable Constant Current Driver Specification Sheet

Magnitude CFLEX Compact Programmable Constant Current Driver Installation Instructions
