Fulham Company Group is a leading global provider of intelligent, sustainable commercial lighting components and electronics for use in commercial general lighting, parking structure, signage, horticultural, UV and other applications. The company develops and manufactures a variety of award-winning LED and emergency products, as well as legacy products across multiple lighting platforms. Fulham is dedicated to intelligent, sustainable lighting solutions that give their users the power to control their light.
Fulham brings you their ThoroLED Drivers. These ThoroLEDs are constant current drivers that are dimmable (0-10V dimming) and come in single and multiple output channel models. These drivers have a wide range of wattages and current outputs to meet numerous applications. They will most definitely stand the test of time with a 5 year limited warranty. The rugged construction guarantees performance and reliability various settings. The ThoroLED driver is comes in compact (square) or linear (long) style cases, allowing them to fit into your application.

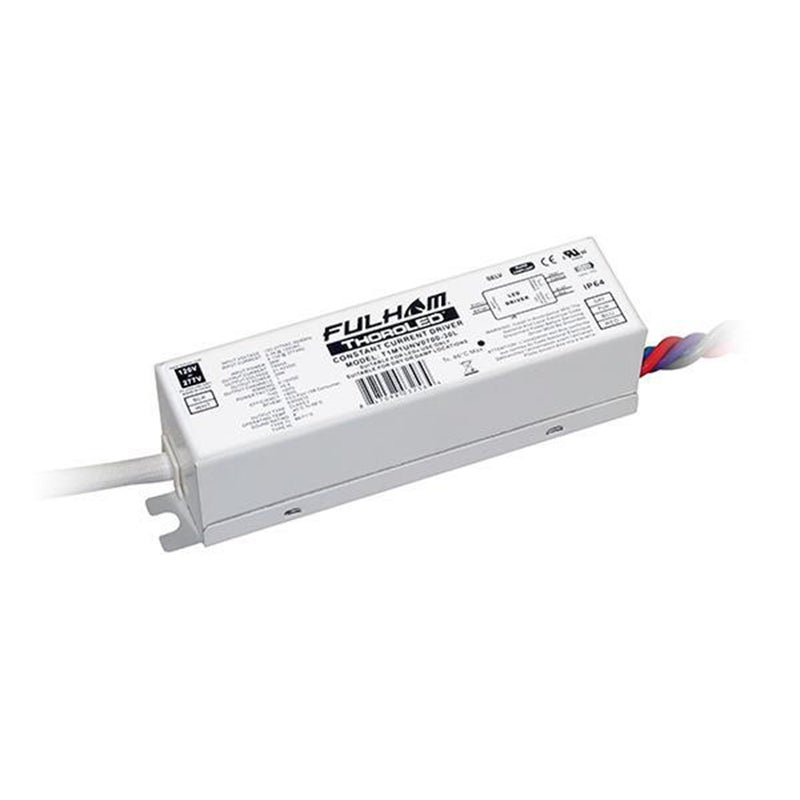

This item is the Fulham ThoroLED power supply part number T1M1UNV0700-30L. The input voltage is universal 120-277 volt and is a single-output channel, 0-10V dimmable LED driver. The constant output current is 700mA output. This driver is considered a linear case with end leads and will operate any LED module designed to accept constant current voltage of 700mA and has a forward voltage range of 18-45VDC. The Fulham ThoroLED Driver comes with multiple protections including input current, output short circuit, output open circuit, output to ground short, and overload protection. The ThoroLED 120-277V 30W driver's approvals include, cURus, Class 2, RoHS, Type HL/TL, CE, SELV, IP64, and Dry or Damp Locations.
| Manufacturer | Fulham |
| MPN | T1M1UNV0700-30L |
| SKU | T1M1UNV0700-30L |
| UPC | 847098032564 |
| Lighting Technology | LED |
| Driver Type | Constant Current |
| Wattage | 30 Watts |
| Input Voltage | 120-277VAC |
| Voltage Output | 18-45VDC |
| Input Current | 0.13A-0.3A |
| Current Output | 700mA |
| Input Power | 36 Watts |
| Frequency | 50/60Hz |
| Output Channels | 1 Channel |
| Dimmable | 0-10VDC |
| Rated Life | 50,000 Hours |
| Power Factor | >0.9 |
| THD (Total Harmonic Distortion) | <20% |
| Sound Rating | A |
| Operating Temperature | -40°C to 62°C (-40°F to 143.6°F) |
| Max Case Temperature | 85°C (185°F) |
| Dimensions | 4.65" L x 1.18" W x 1.16" H |
| Certifications | Class P, RoHS Compliant, cULus Listed, IP64 |
| Environment | Wet Locations |
| Warranty | 5 Year Standard |
