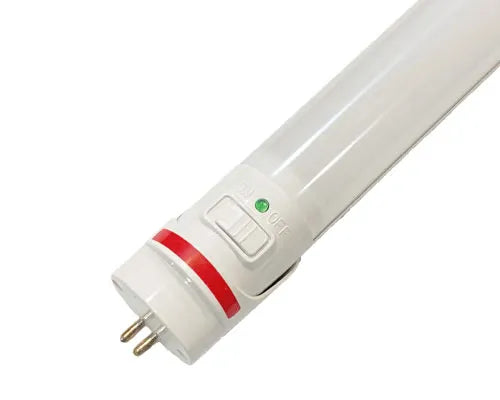

Aleddra’s 3CCT G4 PRO Emergency LED T5 tune sets another industry standard as the first UL924-certified self-testing emergency LED tube. The lamp operates as an energy-efficient T5 during normal operation and can be turned on/off via a wall switch. During power outage, it will last over 90 minutes on battery. More importantly, the lamp will automatically self-test for 30 seconds monthly and for 90 minutes annually, thus meeting the emergency lighting audit requirements with no labor cost. This saves a facility management team a tremendous amount of labor from manually testing every single lamp of this kind in its facilities. Should any malfunction be detected during self-testing, such as insufficient battery capacity, the warning indicator on the lamp will flash and alert the team. With its labor saving, the lamp gives the end user the best return on investment and the best emergency lighting option. Please follow the installation instruction to wire the lamp.

Emergency light fixtures automatically switch on when power goes out to illuminate pathways toward egress exits. Aleddra's Generation 4 Emergency T5 tube lights will last over 90 minutes on battery during a power outage. The Aleddra LLT-4-EM-T5-G4PRO-22W-3CCT 4 foot T5 tubes consume just 22 watts of 100 to 277 volt energy and produce 2,900 lumens of either 3500K bright white, 4000K cool white and 5000K daylight color temperature.

This Emergency T5 tube is a cost-effective option for various emergency lighting applications such as office buildings, schools, hotels, apartments, corridors, and stairs and can replace that expensive emergency ballast. Note: One end of these LED tubes must be wired to regular line voltage, while the other end should be wired to your emergency backup circuit.

Aleddra PRO LED Self Testing Emergency T5 Tube Light Specification Sheet
