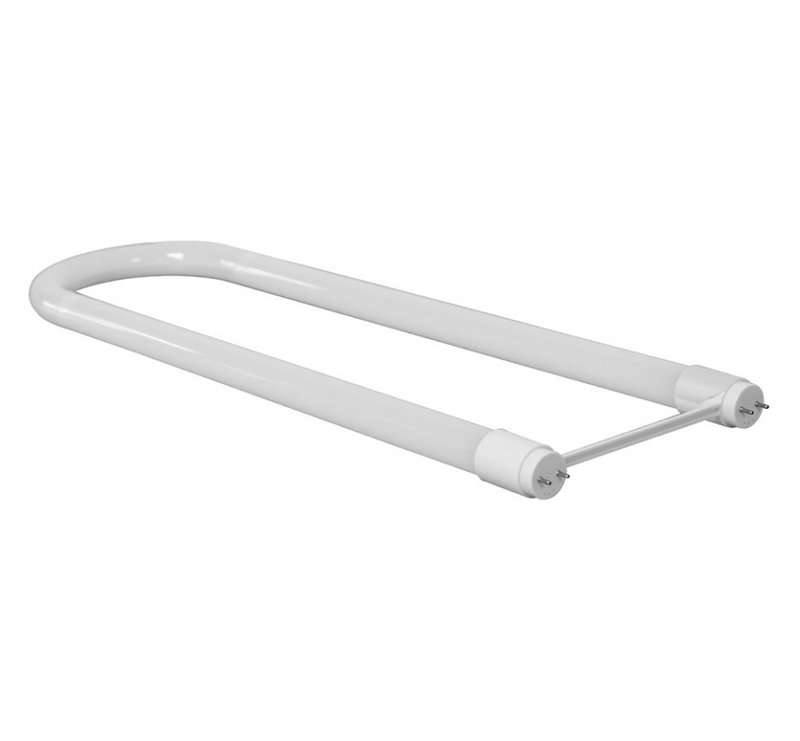

EiKO is introducing Dual Mode 6 Inch LED U-Bend Lamps! These U-Bends can be used with our without an existing fluorescent ballast. The EiKO LED13WT8/U6/8(XX)-G9DM will produce 2,000 Lumens of light output. They have a frosted lens, CRI of 80 and a rated life of up to 50,000 hours. The physical dimensions of the EiKO Dual Mode LED 6" U Bend are 22.56 inch long by 1.1 inch in diameter (note: the U-bend leg spacing measures 6 inch). Each EiKO LED bulb carries a 5 Year Warranty.
This light consumes just 13 watts of 120-277V and is equivalent to a 31 watt fluorescent bulb and has been designed to retrofit existing linear fluorescent T8 installations, thereby reducing maintenance and energy expenditures in residential, commercial, retail displays, hotel, motel and resort applications and as an energy saving light source for new fixtures and installations. These U-Bend LED bulbs are rated for use in either dry or damp locations, have an operating temperature range of -4 degrees Fahrenheit to 113 degrees Fahrenheit and are NSF Certified, making them safe to use in food service applications.
| Voltage | 120-277 Volt |
| Wattage | 13 Watts |
| Lumens | 2,000 Lumens |
| CRI | 80 CRI |
| Base Type | 2-G13 Base |
| Dimmable | Non-Dimmable |
| Rated Life | 50,000 Hours |
| Dimensions | 5.98" Spacing x 22.56" MOL |
| Certifications | DLC Listed, NSF Listed, FCC |
| DLC Product ID - 3500K | PLEDOLQNH28Z |
| DLC Product ID - 4000K | PLMURYZAE175 |
| DLC Product ID - 5000K | PL41JYJ1HFZQ |
| Warranty | 5 Year Limited |
EiKO Dual Mode LED Type A/B T8 U-Bend Specification Sheet
EiKO Dual Mode LED Type A/B T8 U-Bend Installation Instructions
EiKO Dual Mode Type A/B LED T8 U-Bend 3500K DLC Product Listing
EiKO Dual Mode Type A/B LED T8 U-Bend 4000K DLC Product Listing
EiKO Dual Mode Type A/B LED T8 U-Bend 5000K DLC Product Listing
