4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K

Halco Lighting Technologies SKU: 90381
Halco Lighting Technologies 4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K
Halco Lighting Technologies 4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K
Halco Lighting Technologies 4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K
Halco Lighting Technologies 4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K

4 Foot 20/30/40 Watt Selectable ProLED Linear Wrap Fixture 3500/4000/5000K

Halco Lighting Technologies SKU: 90381
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

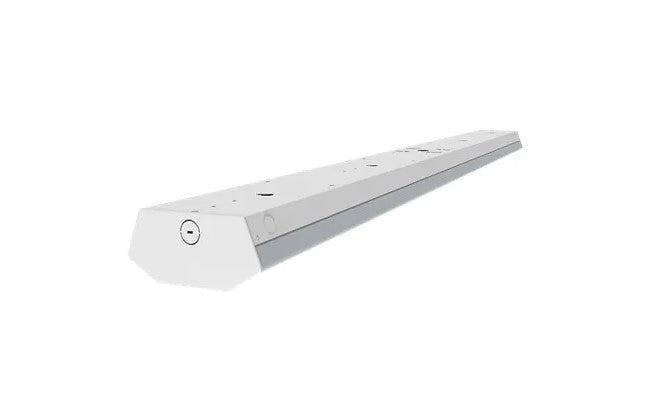

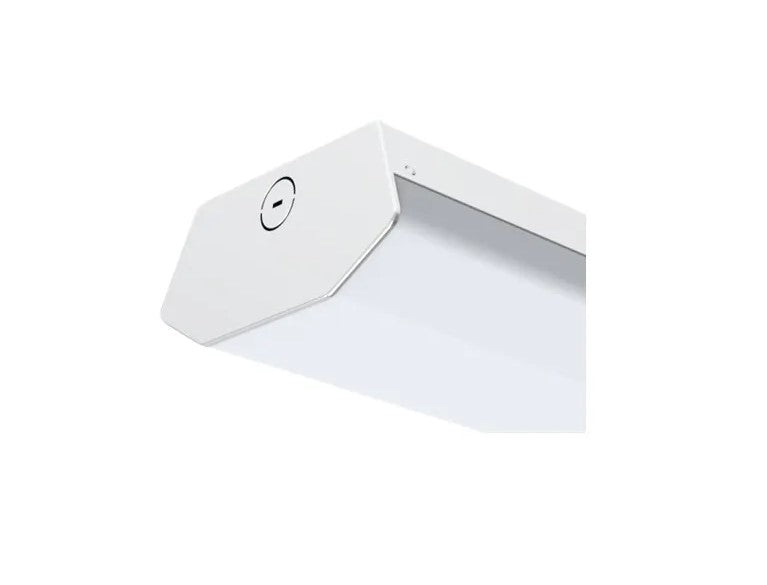

The ProLED Select Linear Architectural Wrap Fixture fixture features multiple mounting options, a simple 'snap on' lens and a large wiring compartment making installation a breeze. Available in 2 foot and 4 foot housings and CCT Selectable and Wattage Selectable. This ProLED Select Linear Architectural Wrap provides optimal performance and versatility and is an ideal solution for general ambient lighting in commercial applications.

The Halco Lighting LWA-4-WS-CS-U (90381) 4 Foot LED Wrap fixture consumes a selectable amount of 20/30/40 watts of 120-277 volt energy. They generate between 2,600-5,235 lumens (130-138 lumens per watt), have a rated lumen maintenance of 50,000 hours based on L70 lumen depreciation, a selectable color temperature of 3500K bright white, 4000K cool white or 5000K daylight and a CRI of 80. These DLC Premium Listed LED wrap lights have a 0-10V dimmable configuration. All Halco LED wrap fixtures carry a 5 Year Standard Warranty.

Manufacturer Halco Lighting Technologies
MPN LWA-4-WS-CS-U
SKU 90381
UPC 807154903818
Lighting Technology LED
Voltage 120-277VAC
Dimmable Yes, 0-10V Dimming
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor 0.9
Housing White Steel
Lens Prismatic Polcarbonate Lens
Operating Temperature -20°C to 40°C
Dimensions 48-3/16" L x 5-5/8" W x 2-1/2" H
Certifications DLC Premium Listed, RoHS Compliant, FCC Compliant, cULus Listed
DLC Product ID S-K71EIL, S-UFT3QW, S-P5R4N8, S-482PY3
Environment Dry/Damp Location
Warranty 5 Year Standard



Wattage 20 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,600 Lumens 2,760 Lumens 2,620 Lumens
Efficiency (Lumens Per Watt) 130 lm/W 138 lm/W 132 lm/W



Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,900 Lumens 4,140 Lumens 3,930 Lumens
Efficiency (Lumens Per Watt) 130 lm/W 138 lm/W 132 lm/W



Wattage 40 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 5,071 Lumens 5,235 Lumens 5,130 Lumens
Efficiency (Lumens Per Watt) 130 lm/W 138 lm/W 132 lm/W

Halco Selectable ProLED Linear Wrap Fixture Specification Sheet

 
