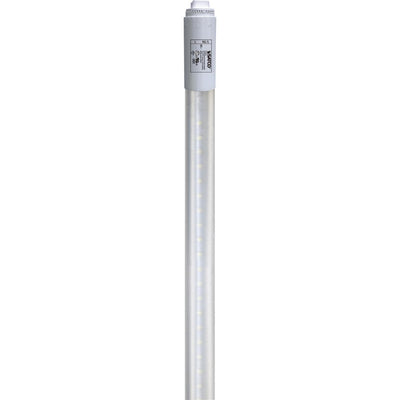

Name: 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube
Brand: Satco
SKU: S16424
Price: 62.95 USD
Availability: InStock

Satco 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White

Price Save 4%

Color Temp

4000K Cool White

6500K Daylight

Quantity

Limited Quantity Available

Please Call To Order

Free Shipping on Orders Over $750

Helping you maximize your green® since 2007!

[{"id":42854060556532,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"S16424","requires_shipping":true,"taxable":true,"featured_image":{"id":37725688070388,"product_id":7440502423796,"position":1,"created_at":"2022-08-02T16:17:09-04:00","updated_at":"2022-08-02T16:17:10-04:00","alt":"Satco 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White  ","width":1200,"height":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/S16422_e2baa2cc-0bce-4e37-b996-201a9cc5abf1.jpg?v=1659471430","variant_ids":[42854060556532,42854060589300]},"available":true,"name":"117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":6295,"weight":1588,"compare_at_price":6548,"inventory_management":"shopify","barcode":"045923164248","featured_media":{"alt":"Satco 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White  ","id":30300714270964,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/S16422_e2baa2cc-0bce-4e37-b996-201a9cc5abf1.jpg?v=1659471430"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42854060589300,"title":"6500K Daylight","option1":"6500K Daylight","option2":null,"option3":null,"sku":"S16425","requires_shipping":true,"taxable":true,"featured_image":{"id":37725688070388,"product_id":7440502423796,"position":1,"created_at":"2022-08-02T16:17:09-04:00","updated_at":"2022-08-02T16:17:10-04:00","alt":"Satco 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White  ","width":1200,"height":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/S16422_e2baa2cc-0bce-4e37-b996-201a9cc5abf1.jpg?v=1659471430","variant_ids":[42854060556532,42854060589300]},"available":true,"name":"117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube - 6500K Daylight","public_title":"6500K Daylight","options":["6500K Daylight"],"price":6295,"weight":1588,"compare_at_price":6548,"inventory_management":"shopify","barcode":"045923164255","featured_media":{"alt":"Satco 117 Inch 45 Watt R17d 360 Degree Single Ended Ballast ByPass LED Sign Tube 4000K Cool White  ","id":30300714270964,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/S16422_e2baa2cc-0bce-4e37-b996-201a9cc5abf1.jpg?v=1659471430"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

DIRECT REPLACEMENT: 117 Inch 45 Watt R17d LED Single or Double Ended Ballast Bypass Sign Tube 40/50/65K

Introducing Satco's Double Sided LED Sign Tubes! The high output tubes from Satco is the perfect solution for retrofits or new sign installations. There is no need for an external driver or ballast, making it the fastest way to upgrade a sign to LED. Maintenance professionals can install these LED sign tubes in five minutes or less! These tubes are available in an array of lengths and can work with double sided or single sided signs, therefore they can fit any application. The Satco high output LED Sign Tubes are an LED outdoor replacement retrofit solution for conventional T12HO and T8HO fluorescent lamps for sign applications and come in the color temperature of either 4000K or 6500K. These LED tubes can cut your energy savings nearly in half!

Talk about an easy retrofit option for your existing fluorescent T12HO or T8HO sign bulbs. Satco's tubes are ballast bypass which eliminates the need for an external driver or ballast, while still using the existing sockets. The Satco LED Sign Tubes feature a 90 degree rotatable R17d base for correct lamp orientation in vertical or horizontal installations, regardless of how the socket was originally installed. This tube is two-sided so it can light up single sided or double sided signs. The optical lenses that cover each individual LED chip in the tube eliminates hot spots and ensures a consistent light distribution across both faces of the sign. You will no longer get those awkward vertical shadows. You can count on Satco to provide a 50,000 hour lifetime and a 5 year warranty.

This item is Satco's 117" (9.75 Foot) LED sign tube. These LED retrofit tubes DO NOT require an external LED driver. The existing ballast must be bypassed. The sign tubes deliver 6300 lumens of 4000K or 6500K light and run on the universal voltage of 120-277V. This tube consumes just 45 watts, for a total of 140 lumens per watt. Now that is efficiency! This product has a CRI of 83 and measures 114" long by 1" in diameter, to fit your small sign applications.

Specifications

Voltage	120-277 Volt
Wattage	45 Watts
Lumens	6,300 Lumens
CRI	83 CRI
Dimensions	1" Diameter x 114" L
Dimmable	No
Rated Life	50,000 Hours
Certifications	NSF, UL, Damp Location
Warranty	5 Year Limited

Documents

Satco 117 Inch Single Ended Ballast ByPass LED Sign Tube Specification Sheet - 4000K

Satco 117 Inch Single Ended Ballast ByPass LED Sign Tube Specification Sheet - 6500K

Satco 117 Inch Single Ended Ballast ByPass LED Sign Tube Installation Instructions
