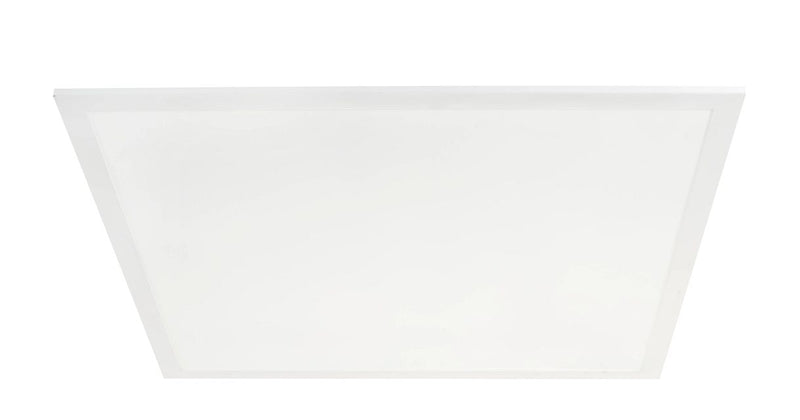

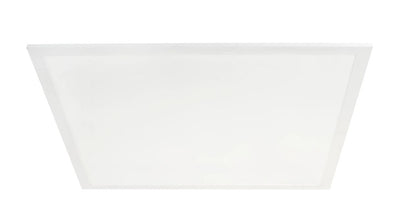

20/30/35 Watt Selectable 2x2 LED Back Lit Flat Panel 3500/4000/5000K

Keystone Technologies SKU: KT-BPLED35PS-22C-8CSA-VDIM
Keystone Technologies 20/30/35 Watt Selectable 2x2 LED Back Lit Flat Panel 3500/4000/5000K

20/30/35 Watt Selectable 2x2 LED Back Lit Flat Panel 3500/4000/5000K

Keystone Technologies SKU: KT-BPLED35PS-22C-8CSA-VDIM
  • DLC Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Keystone's back-lit panels feature a frosted lens that provides evenly diffused light, so hot spots aren’t an issue. And the optical lenses covering each individual LED chip ensures there’s no risk of yellowing over time. These panels are just 1 inch deep and 30% lighter than competing panels. They’ll hold up—but won’t weigh down your installers or your ceiling.

This Keystone Technologies KT-BPLED35PS-22C-8CSA-VDIM color and wattage select flat panel operates at 20/30/35 watts of 120-277 volt energy, producing 2,400-4,200 lumens (113-130 per watt) and rated at 50,000-hour life expectancy (L70 lumen depreciation). Selectable color temperatures of 3500K Bright White, 4000K Cool White, or 5000K Daylight offer a CRI of 80. The product is backed by a 5 year standard warranty.

Manufacturer Keystone Technologies
MPN KT-BPLED35PS-22C-8CSA-VDIM
SKU KT-BPLED35PS-22C-8CSA-VDIM
UPC 843654156989
Lighting Technology LED
Voltage 120-277V
Dimmable Yes, 0-10V Dimming
CRI (Color Rendering Index) 80 CRI
Operating Temperature -20ºC/-4ºF to 40ºC/104ºF
Certifications DLC Listed
DLC Product ID S-AZGCSJ
Environment Damp Location
Warranty 5 Year Standard


Wattage 20 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 2,400 Lumens 2,600 Lumens 2,450 Lumens
Efficiency (Lumens Per Watt) 120 LPW 130 LPW 123 LPW


Wattage 30 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,450 Lumens 3,700 Lumens 3,500 Lumens
Efficiency (Lumens Per Watt) 115 LPW 123 LPW 117 LPW


Wattage 35 Watts
Color Temperature (Kelvin) 3500K Bright White 4000K Cool White 5000K Daylight
Lumens 3,950 Lumens 4,200 Lumens 4,000 Lumens
Efficiency (Lumens Per Watt) 113 LPW 120 LPW 114 LPW


Keystone Selectable LED Back Lit Flat Panel Specification Sheet

Keystone Selectable LED Back Lit Flat Panel DLC Product Listing
