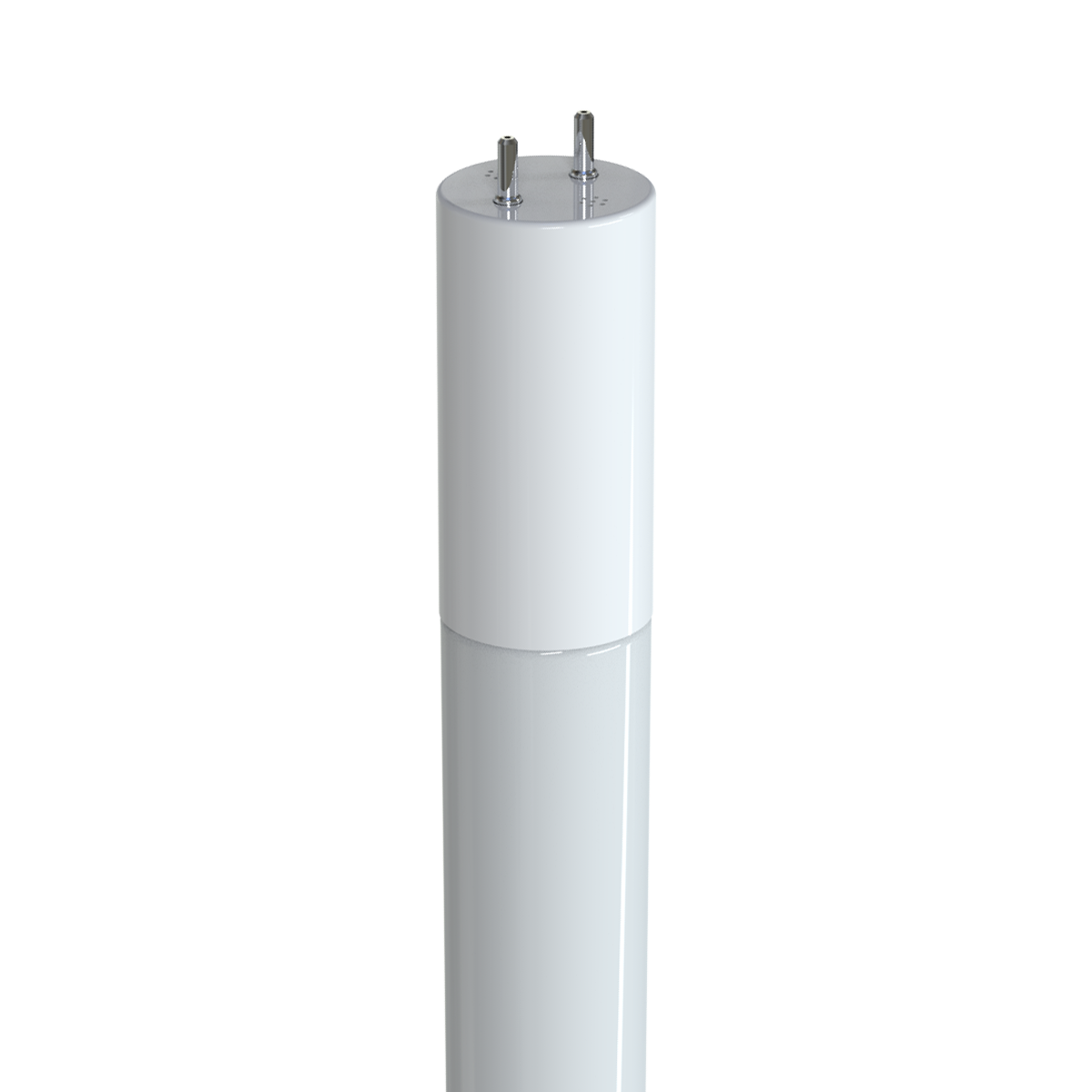

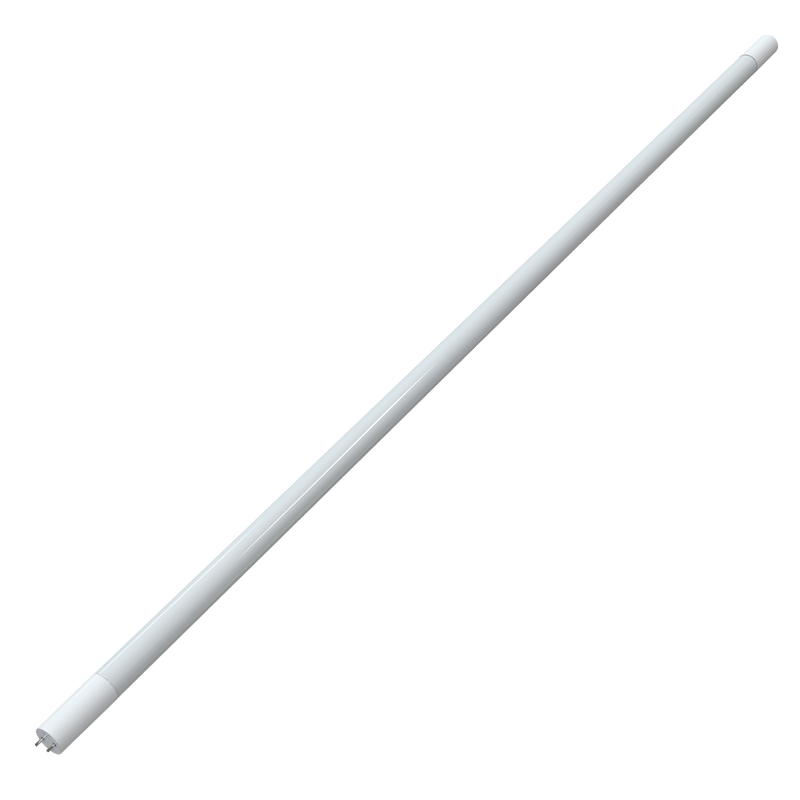

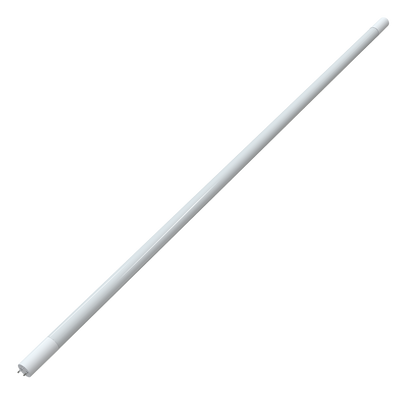

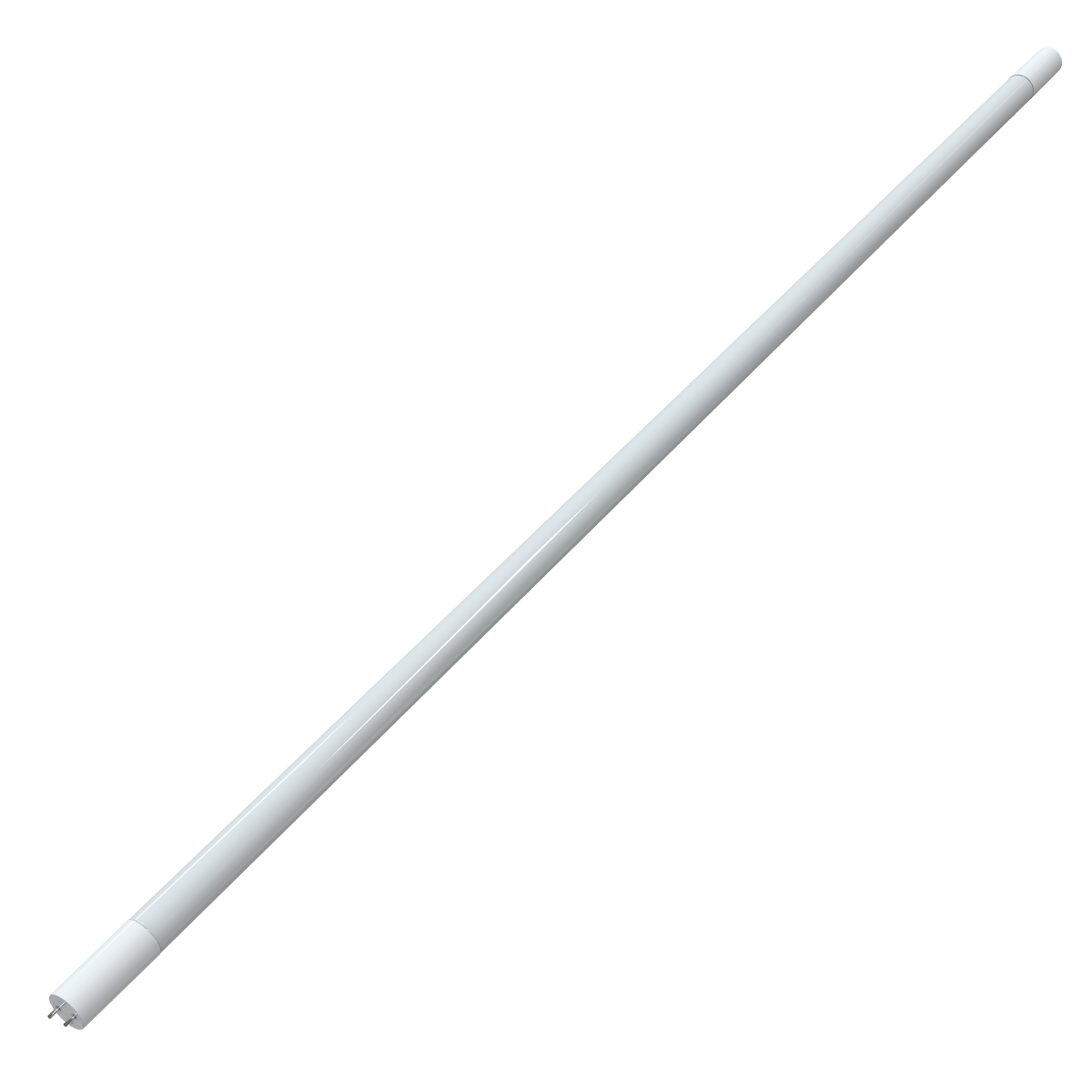

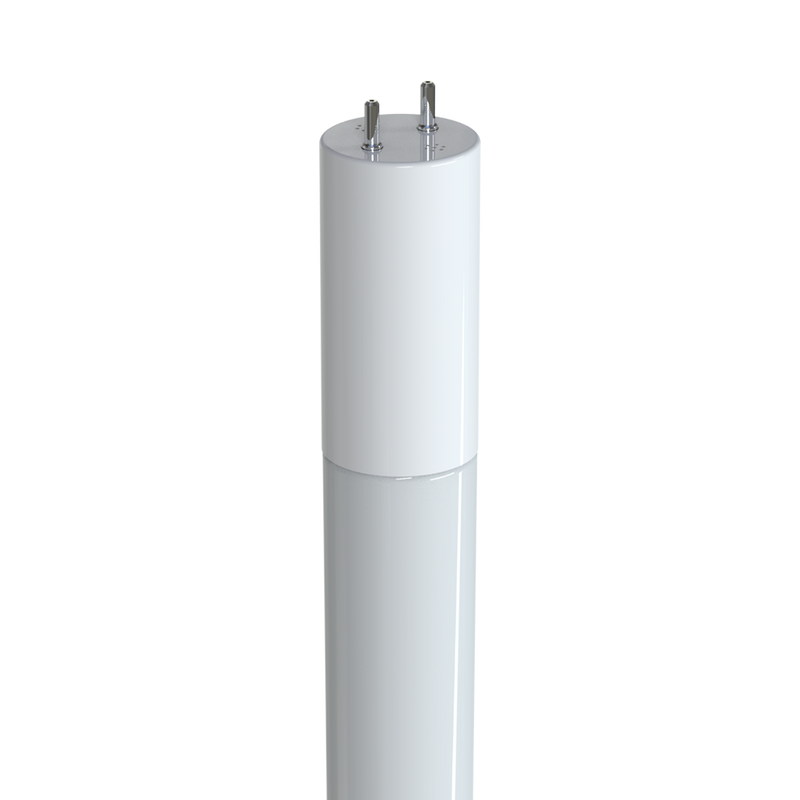

Experience superior LED illumination with EiKO's ballast bypass tube lights. Featuring an internal LED driver and glass material for improved light transmission, it instantly provides 330° of wide light distribution with frosted glass lens for maximum heat dissipation and reduced visual glare. Installation is made easy, with no socket changes and zero need to replace existing ballast. Achieve long-term maintenance savings and enjoy the luxuries of a reliable lighting solution.
This efficient and versatile ballast bypass tube light, part number L12WT8/36/BSDG/8(XX), produces between 1,400-1,450 lumens of brightness with a color temperatures of 3500K bright white, 4000K cool white, or 5000K daylight. It operates on 12 watts and can be wired either single ended or double ended. This UL-listed, 5 year warranty product is rated for damp and cold climates, with a universal voltage of 120-277V and an impressive 50,000 hours of total lifespan.
| Manufacturer | EiKO | ||
| Color Temperature (Kelvin) | 3500K Bright White | 4000K Cool White | 5000K Daylight |
| MPN | L12WT8/36/BSDG/835 | L12WT8/36/BSDG/840 | L12WT8/36/BSDG/850 |
| SKU | 12927 | 12928 | 12935 |
| UPC | 031293129277 | 031293129284 | 031293129352 |
| Lumens | 1,400 Lumens | 1,450 Lumens | 1,450 Lumens |
| Efficiency (Lumens Per Watt) | 116 LPW | 120 LPW | 120 LPW |
| DLC Product ID | S-C1XR5N | S-YWUMT2 | S-BGUK21 |
| Lighting Technology | LED | ||
| Wattage | 12 Watts | ||
| Voltage | 120-277V | ||
| Ballast Operation | Type B Ballast Bypass | ||
| Wiring Method | Single or Double Ended | ||
| Bulb Shape | T8 | ||
| Base | G13 Medium Bi Pin | ||
| Rated Life | 50,000 Hours | ||
| CRI (Color Rendering Index) | 82 CRI | ||
| Power Factor | >0.9 | ||
| THD (Total Harmonic Distortion) | <20% | ||
| Operating Temperature | -20°C to 45°C | ||
| Dimensions | 36" MOL x 1" MOD | ||
| Certifications | DLC Listed, RoHS Compliant, FCC Compliant | ||
| Environment | Damp Location | ||
| Warranty | 5 Year Warranty | ||
EiKO Single or Double Ended LED Bypass T8 Tube Specification Sheet
EiKO Single or Double Ended LED Bypass T8 Tube Installation Instructions
EiKO Single or Double Ended LED Bypass T8 Tube Compatibility List
EiKO Single or Double Ended LED Bypass T8 Tube 3500K DLC Product Listing
EiKO Single or Double Ended LED Bypass T8 Tube 4000K DLC Product Listing
EiKO Single or Double Ended LED Bypass T8 Tube 5000K DLC Product Listing
