Name: 5 1/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp
Brand: Green Creative
SKU: 57820
Price: 10.4 USD
Availability: InStock

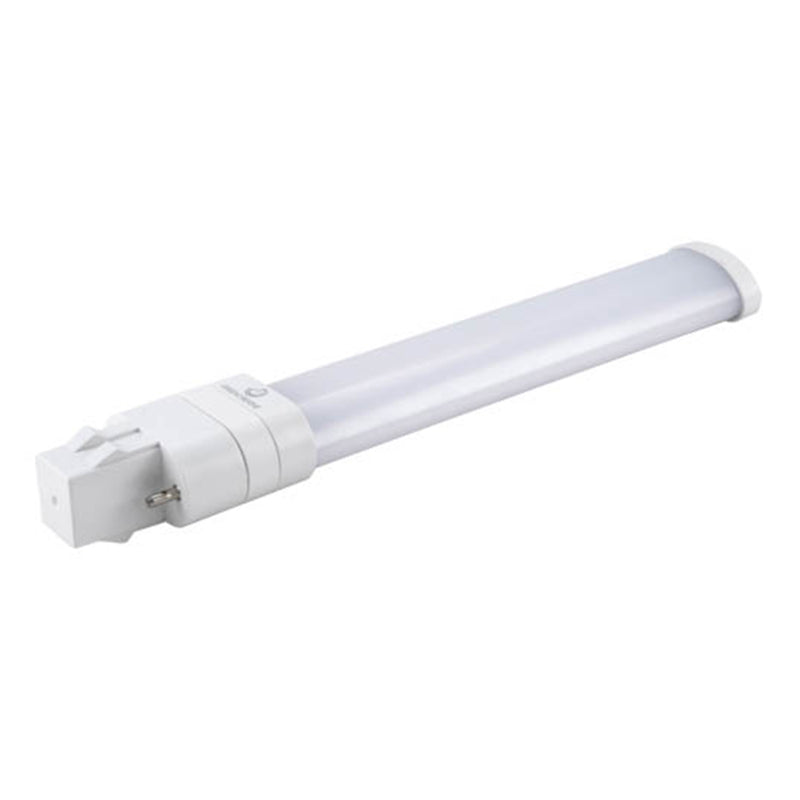

Green Creative 5 1/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp 2700K Warm White

Price Save 37%

Color Temp

2700K Warm White

4000K Cool White

Quantity

Limited Quantity Available

Free Shipping on Orders Over $750

Most in-stock items ship the same day!

Helping you maximize your green® since 2007!

[{"id":42857881600244,"title":"2700K Warm White","option1":"2700K Warm White","option2":null,"option3":null,"sku":"57820","requires_shipping":true,"taxable":true,"featured_image":{"id":36287835767028,"product_id":7440419160308,"position":1,"created_at":"2021-12-15T10:14:13-05:00","updated_at":"2021-12-15T10:14:14-05:00","alt":"Green Creative 5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp 2700K Warm White  ","width":1000,"height":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/Green-Creative-GX23-Base-PL-Lamp_2032b7c4-1a75-480f-94f9-a5d7331d971d.jpg?v=1639581254","variant_ids":[42857881600244,42857881665780]},"available":true,"name":"5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp - 2700K Warm White","public_title":"2700K Warm White","options":["2700K Warm White"],"price":1040,"weight":340,"compare_at_price":1647,"inventory_management":"shopify","barcode":"672713578208","featured_media":{"alt":"Green Creative 5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp 2700K Warm White  ","id":28838024970484,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/Green-Creative-GX23-Base-PL-Lamp_2032b7c4-1a75-480f-94f9-a5d7331d971d.jpg?v=1639581254"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42857881665780,"title":"4000K Cool White","option1":"4000K Cool White","option2":null,"option3":null,"sku":"57823","requires_shipping":true,"taxable":true,"featured_image":{"id":36287835767028,"product_id":7440419160308,"position":1,"created_at":"2021-12-15T10:14:13-05:00","updated_at":"2021-12-15T10:14:14-05:00","alt":"Green Creative 5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp 2700K Warm White  ","width":1000,"height":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/Green-Creative-GX23-Base-PL-Lamp_2032b7c4-1a75-480f-94f9-a5d7331d971d.jpg?v=1639581254","variant_ids":[42857881600244,42857881665780]},"available":false,"name":"5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp - 4000K Cool White","public_title":"4000K Cool White","options":["4000K Cool White"],"price":1040,"weight":816,"compare_at_price":1647,"inventory_management":"shopify","barcode":"672713578239","featured_media":{"alt":"Green Creative 5 1\/2 Watt 120-277V 2 Pin GX23 Base Hybrid PL LED Retrofit Lamp 2700K Warm White  ","id":28838024970484,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/www.greenelectricalsupply.com\/cdn\/shop\/products\/Green-Creative-GX23-Base-PL-Lamp_2032b7c4-1a75-480f-94f9-a5d7331d971d.jpg?v=1639581254"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

Details
Specifications
Documents
Request A Quote

Details

SUGGESTED ALTERNATES:

5.5 Watt Dual Mode LED CFL Replacement PL Light Bulb 2 Pin GX23 Base

5.5 Watt Horizontal LED Type A/B Hybrid PL Light Bulb

5.5 Watt Horizontal Rotation LED Type A/B Hybrid PL Light Bulb

This PL EDGE SERIES lamp has been designed and engineered for demanding commercial applications. This is a hybrid lamp, meaning this lamp is compatible with magnetic ballasts (Direct installation) or it can run off line voltage with its built-in universal voltage driver (Bypass installation). Simply install it in your existing fixture and turn ON the savings (up to 60% energy savings). The base of the lamp can be rotated 180° to fit any socket configuration and is suitable for use in totally enclosed fixtures.

Here are the Green Creative, 120° beam angle, 2 pin mount retrofit LED. It is a direct replacement for 13w 2-pin GX23 fluorescent PL single twin tube lights. Part number 5.5PLS/8(XX)/HYB/GX23 consumes just 5.5 watts of 120 to 277 volt 60 Hz energy. These LED tubes are UL Listed, FCC, Lighting Facts and IES rated. They are a non-dimmable LED light bulb, will produce between 450-520 lumens of light output (that's an awesome 80 Lumens Per Watt), has a Color Rendering Index (CRI) of 80 and a rated life of up to 50,000 hours based on TM21.

The physical dimensions of the LED retrofit are 7.03 inches MOL by 1.26 inches wide. Each 5.5PLS/8(XX)/HYB/GX23 LED fluorescent retrofit bulb operate directly off of your existing electronic ballast.

Specifications

Manufacturer	Green Creative
Color Temperature (Kelvin)	2700K Warm White	4000K Cool White
MPN	5.5PLS/827/HYB/GX23	5.5PLS/840/HYB/GX23
SKU	57820	57823
UPC	672713578208	672713578239
Lumens	450 Lumens	520 Lumens
Efficiency (Lumens Per Watt)	82 lm/w	95 lm/w
Lighting Technology	LED
Wattage	5.5 Watt
Voltage	120 - 277V
Bulb Shape	PL
Base	2-Pin GX23
Beam Angle	120 Degree
Ballast Operation	Type A/B Hybrid
Rated Life	50,000 Hours
CRI (Color Rendering Index)	80
Fluorescent Equivalent	13 Watt
Dimensions	1.26" Diameter x 7.03" MOL
Certifications	cULus, FCC
Environment	Damp Location, Enclosed Recessed Fixtures
Warranty	5 Year Warranty

Documents

Green Creative GX23 Hybrid PL LED Retrofit Lamp Specification Sheet

Green Creative GX23 Hybrid PL LED Retrofit Lamp Installation Instructions
