8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K

Keystone Technologies SKU: KT-LED40PST8-D48G-8CSJ-D2
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K
Keystone Technologies 8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K

8 Foot 24/32/40 Watt Glass 2 Piece LED T8 Tube Light 3000/3500/4000/5000/6500K

Keystone Technologies SKU: KT-LED40PST8-D48G-8CSJ-D2
  • DLC Listed, NSF Listed
/
Color Temp
Please call to confirm availability.
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

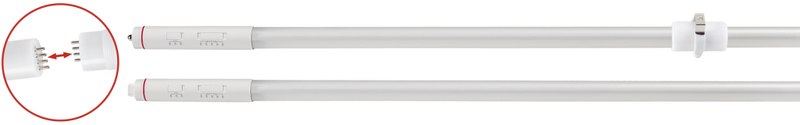

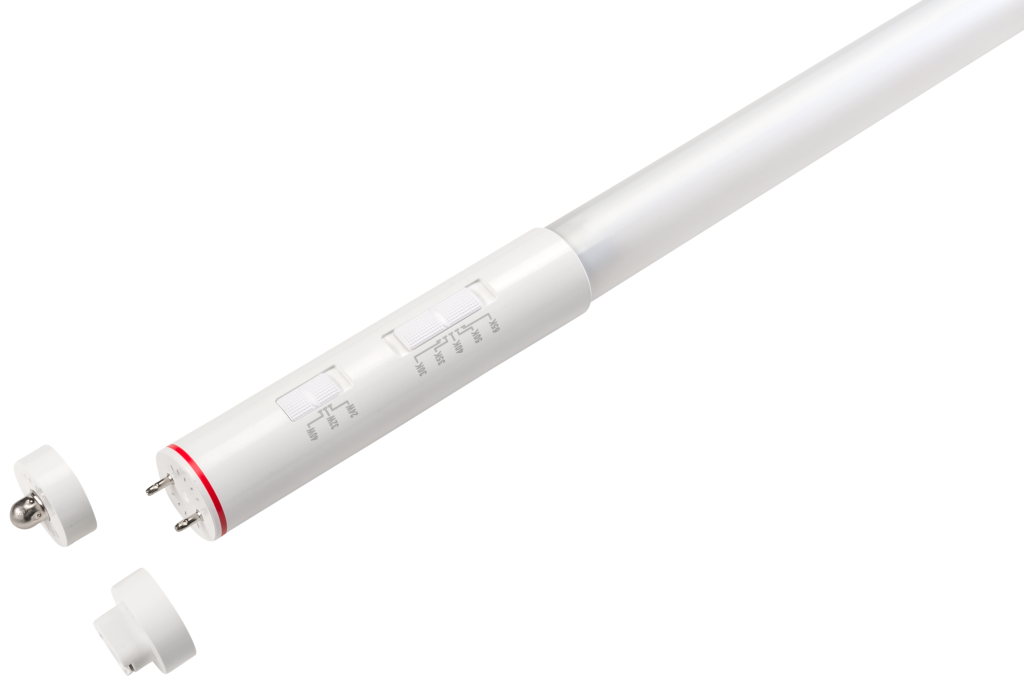

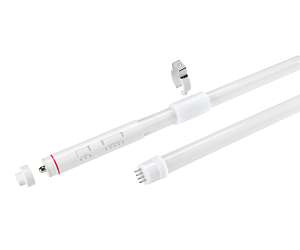

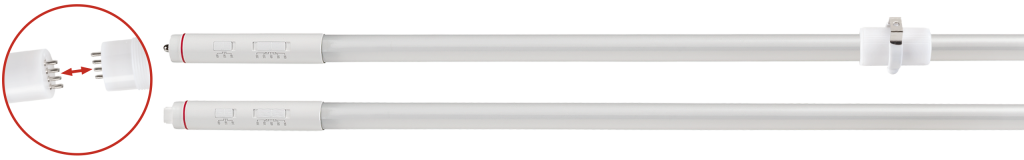

Upgrade fluorescent to LED easily with Keystone's UL Type B DirectDrive tubes. The ballast bypass design makes the fixture more reliable and, with the tube’s long life and energy efficiency, saves time and money in maintenance costs. Keystone's selectable Type B Lamps give you the ability to select power output and color temperature, while helping to eliminate the damage issues that can affect 8-foot lamps in transit and installation. The 2 piece 8 foot T8 can be used in HO applications using R17d and Fa8 bases. Just replace the cap adapters from R17d to Fa8.

This item is the Keystone part number KT-LED40PST8-D48G-8CSJ-D2, consuming 24/32/40 watts or 120-277 input power and generates between 3,300-5,500 lumens of 80 CRI light. This 2 piece tube light is color selectable, giving you the option to choose between 3000K Warm White, 3500K Bright White, 4000K Cool White, 5000K Daylight and 6500K Daylight. Each T8 LED tube light carries a 10 year limited warranty and is rated for 50,000 hours.

Manufacturer Keystone Technologies
MPN KT-LED40PST8-D48G-8CSJ-D2
SKU KT-LED40PST8-D48G-8CSJ-D2
UPC 843654162973
Lighting Technology LED
Voltage 120-277V
Ballast Operation Type B Ballast Bypass
Wiring Method Double Ended
Bulb Shape T8
Base Interchangeable R17d and Fa8 Caps
Beam Angle 210 Degrees
Rated Life 50,000 Hours
CRI (Color Rendering Index) 80 CRI
Power Factor >0.9
Operating Temperature -20°C (4°F) to 45°C (113°F)
Full Unit Dimensions 93.20" L x 1.08" Diameter
Half Unit Dimensions 46.60" L x 1.08" Diameter
Part A Illuminated Dimensions 40.23" L
Part B Illuminated Dimensions 43.59" L
Nominal Length 96 Inches
Certifications DLC Listed, NSF Listed, cULus Listed
DLC Product ID S-18NG7Q
Environment Damp Location
Warranty 10 Year Limited



Wattage 24 Watts
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight 6500K Daylight
Lumens 3,300 Lumens 3,300 Lumens 3,500 Lumens 3,500 Lumens 3,500 Lumens
Efficiency (Lumens Per Watt) 138 LPW 138 LPW 146 LPW 146 LPW 146 LPW



Wattage 32 Watts
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight 6500K Daylight
Lumens 4,200 Lumens 4,200 Lumens 4,400 Lumens 4,400 Lumens 4,400 Lumens
Efficiency (Lumens Per Watt) 131 LPW 131 LPW 138 LPW 138 LPW 138 LPW



Wattage 40 Watts
Color Temperature (Kelvin) 3000K Warm White 3500K Bright White 4000K Cool White 5000K Daylight 6500K Daylight
Lumens 5,200 Lumens 5,200 Lumens 5,500 Lumens 5,500 Lumens 5,500 Lumens
Efficiency (Lumens Per Watt) 130 LPW 130 LPW 138 LPW 138 LPW 138 LPW



Keystone 2 Piece LED T8 Tube Light Specification Sheet

Keystone 2 Piece LED T8 Tube Light DLC Product Listing

 
