8 Foot 40 Watt R17D Base LED Double Ended ByPass T8 Tube

EiKO SKU: 12538

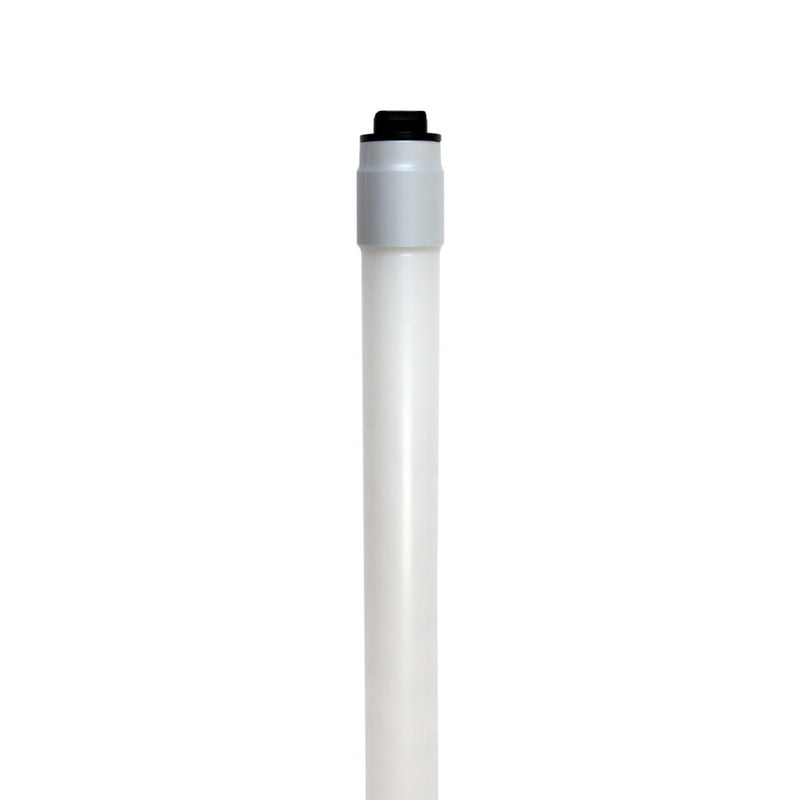

EiKO 8 Foot 40 Watt R17D Base LED Double Ended ByPass T8 Tube 4000K Cool White

8 Foot 40 Watt R17D Base LED Double Ended ByPass T8 Tube

EiKO SKU: 12538
/
Color Temp
**BALLAST MUST BE BYPASSED IN ORDER TO USE**
  • Free Shipping on Orders Over $750
  • Most in-stock items ship the same day!
  • Helping you maximize your green® since 2007!

Retrofit your linear fluorescent tubes with EiKO LED tubes and save time and money. EiKO LED linear tubes last 2x longer and use up to 80% less energy. Upgrading your light source from traditional to LED is made easier by EiKO. LEDs provide lower energy bills and reduced maintenance costs – with additional savings via utility rebates from your energy provider.

EiKO's LED T8 Tube Light allows you to use double-ended wiring with the use of either shunted or unshunted lamp holders. Replacing your conventional fluorescent lamp these LED T8 have approximate 40% more energy efficient than the standard F24T8 Lamp. With an operating temperature of -20 degrees Celsius/-4 degrees Fahrenheit to 45 degrees Celsius/113 degrees Fahrenheit these lamps are great for use in warehouses, athletic facilities, hallways, classrooms and many more.

Here is the EiKO, 210 degree beam angle, glass lens, R17D retrofit LED tube lights. Part number LED40WT8/96/8(XX)-R17D-G9D, has a Power Factor >0.9 and consumes just 40 watts of 120 to 277 volts. These LED T8 replacement tubes are non-dimmable, will produce 5,500 Lumens of light output (that's an awesome 137 Lumens Per Watt), has a CRI >80 and a rated life of up to 50,000 hours. The physical dimensions of the EiKO LED T8 LED retrofit are 96 long by 1.00 wide. Each LED40WT8/96/8(XX)-R17D-G9D LED T8 retrofit bulb carries a 5 year limited warranty.

Voltage 120-277 Volt
Wattage 40 Watts
Lumens 5,500 Lumens
CRI 80
Beam Angle 210 Degrees
Dimensions 1.00" (MOD) x 96" (MOL)
Rated Life 50,000 Hours
Warranty 5 Year Limited



EiKO Double Ended Bypass LED T8 Tube Light Specification Sheet

EiKO Double Ended Bypass LED T8 Tube Light Installation Instructions

Green Electrical Supply is here to help you maximize your green® on all your electrical supply purchases.

Looking for a quote or need help finding an item, simply use our Contact Us form to request a quote, get assistance, or provide feedback. If you're more of a talker, feel free to give us a call at 248-276-9640 during our weekday hours from 8 am to 5 pm EST.

Here's a little tip to make your quote request even smoother: don't forget to copy the SKU from above and include it along with the quantity in your request. It's a small detail that ensures we get you the most accurate and efficient service. And, just a heads up, the SKU is dynamic, especially for products with multiple options. So, be sure to choose your required options first to view the precise SKU.
